200kwh All In One Outdoor Lithium Ion Battery Cabinet with 50kw output power
- Category： Outdoor BESS Cabinet & Container
- Energy Storage Capacity: 200kwh
- Cooling Method: Air Cooling/ Liquid Cooling (Optional)
- AC Output Power: 50KW or Customized
- Protection Class: IP55
- Product description：Storage Cabinet, All in one bess Cabinet, Outdoor Cabinet, battery Cabinet, 200kwh cabinet, Lithium battery cabinet, air conditioning cabinet, BESS Cabinet

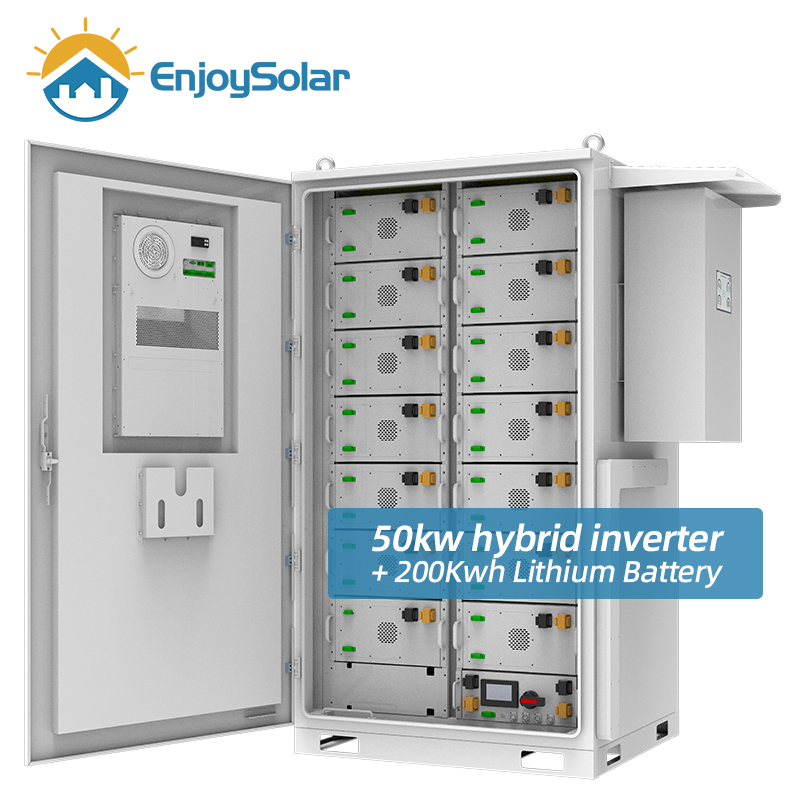

200Kwh outdoor BESS Cabinet
with 50Kw Hybrid Inverter
Safer
Cobalt Free Lithium iron Phosphate(LFP) Battery: Safety and long lifespan, high efficiency and high power density. Intelligent BMS, providing complete protection.
Reliable
Support high discharge power, IP55, natural cooling, wide temperature range: -20ºC to 55ºC.Modular design, easy to expand.
Suited to residential and commercial applications for increasing the self-consumption ratio.
Convenient
Battery module auto networking, easy maintenance, support remotely monitoring and upgrade, support USB drive upgrade the firmware.
Outdoor BESS Cabinet Parameters
| MODEL | ES-100K | ES-200K | ES-172K |
| Product | HV100K | HV200K | HV172K |
| Nominal Voltage | 358.4V | 716.8V | 614.4V |
| Nominal Capacity | 280AH | 280AH | 280AH |
| Cabinet Size(mm) | 1250*1245*2175 | 1626*1245*2175 | 1626*1245*2175 |
| Weight(kg) | 1260KG | 2200KG | 200KG |
| Charge/discharge power MAX | 140A | 140A | 140A |
| Cooling method | Air-cooled | Air-cooled | Air-cooled |
| Protection class | IP55 | IP55 | IP55 |
| Type of firefighting | Aerosol | Aerosol | Aerosol |
| BATTERIE SPECIFICATIONS | PARAMETER | PARAMETER | PARAMETER |
| Battery Types | 51.2V-280AH | 51.2V-280AH | 51.2V-280AH |
| Nominal Capacity (KWh) | 100KWh | 200KWh | 172KWh |
| Recommend Charge/Discharge Current (A) | 100 | 100 | 100 |
| Max. Charge/Discharge Current(A) | 140 | 140 | 140 |
| Communicaiton | RS485/CAN | RS485/CAN | RS485/CAN |
| Working Temperature |
0ºC~50ºC Charge -10ºC ~50ºC Discharge |
0ºC~50ºC Charge -10ºC ~50ºC Discharge |
0ºC~50ºC Charge -10ºC ~50ºC Discharge |
| Transport or Storage Temperature Range | -20ºC~60ºC | -20ºC~60ºC | -20ºC~60ºC |
| Certification | CE/IEC/UL/UN38.3/MSDS | CE/IEC/UL/UN38.3/MSDS | CE/IEC/UL/UN38.3/MSDS |
| Design Life | 10years+ | 10years+ | 10years+ |
| Cycle Life | (0.5C/0.5C-80% D0D)>6000 times | (0.5C/0.5C-80% D0D)>6000 times | (0.5C/0.5C-80% D0D)>6000 times |
| Cooling method | Air-cooled | Air-cooled | Air-cooled |
| Certification | UN38.3/MSDS/ROHS | UN38.3/MSDS/ROHS | UN38.3/MSDS/ROHS |
| AC SPECIFICATIONS | PARAMETER | PARAMETER | PARAMETER |
| Rating | 50KW | 50KW/100KW | 50KW/100KW |
| Overloaded | 110% | 110% | 110% |
| Rated AC Voltage | 400V | 400V | 400V |
| Rated frequency | 50/60Hz | 50/60Hz | 50/60Hz |
| Communicaiton | Ethernet/Modbus/TCP/IP | Ethernet/Modbus/TCP/IP | Ethernet/Modbus/TCP/IP |
| Inverter Type | Deye/Solis/Megarevo/Other | Deye/Solis/Megarevo/Other | Deye/Solis/Megarevo/Other |
Main Components

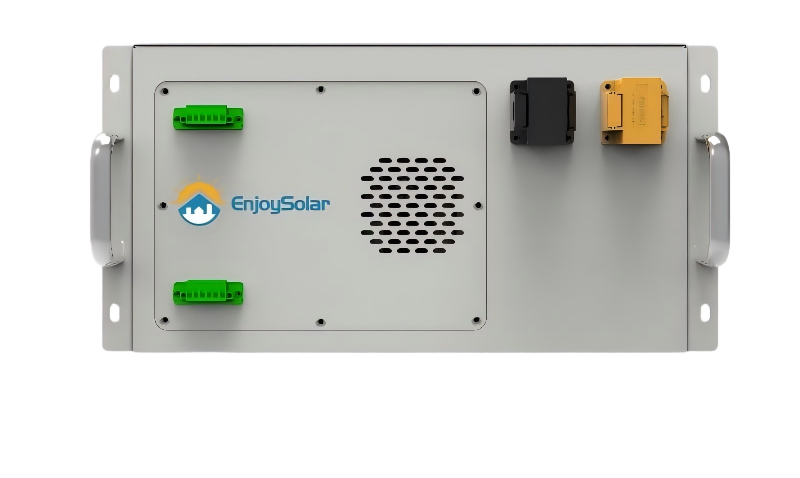

51.2V280Ah/314Ah HV Battery Pack
Lightweight and compact 19-inch modular Design.
3.2V 280Ah or 3.2V 314Ah high energy density square aluminum core.
Super long-lasting life cycle exceeding 10 years, providing exceptional value over time.
Optimized for durability, this battery pack is ideal for long-term charge and discharge cycles, ensuring consistent power delivery.
Featuring a high compatibility BMS, it enables seamless communication with energy storage inverters in the market.

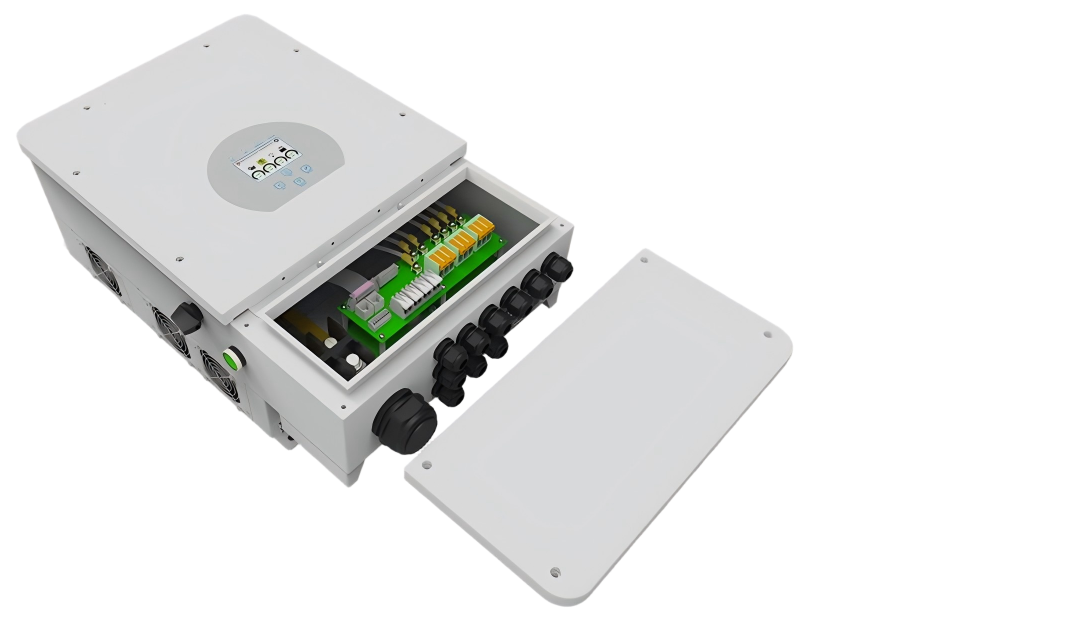

Deye 50Kw Hybrid Solar Power Inverter
100% unbalanced output
AC couple to retrofit existing solar system
Max. 10 pcs parallel for on-grid and off-grid operation; Support multiple batteries parallel
Max. charging/discharging current of 100A
6 time periods for battery charging/discharging
Support storing energy from diesel generator

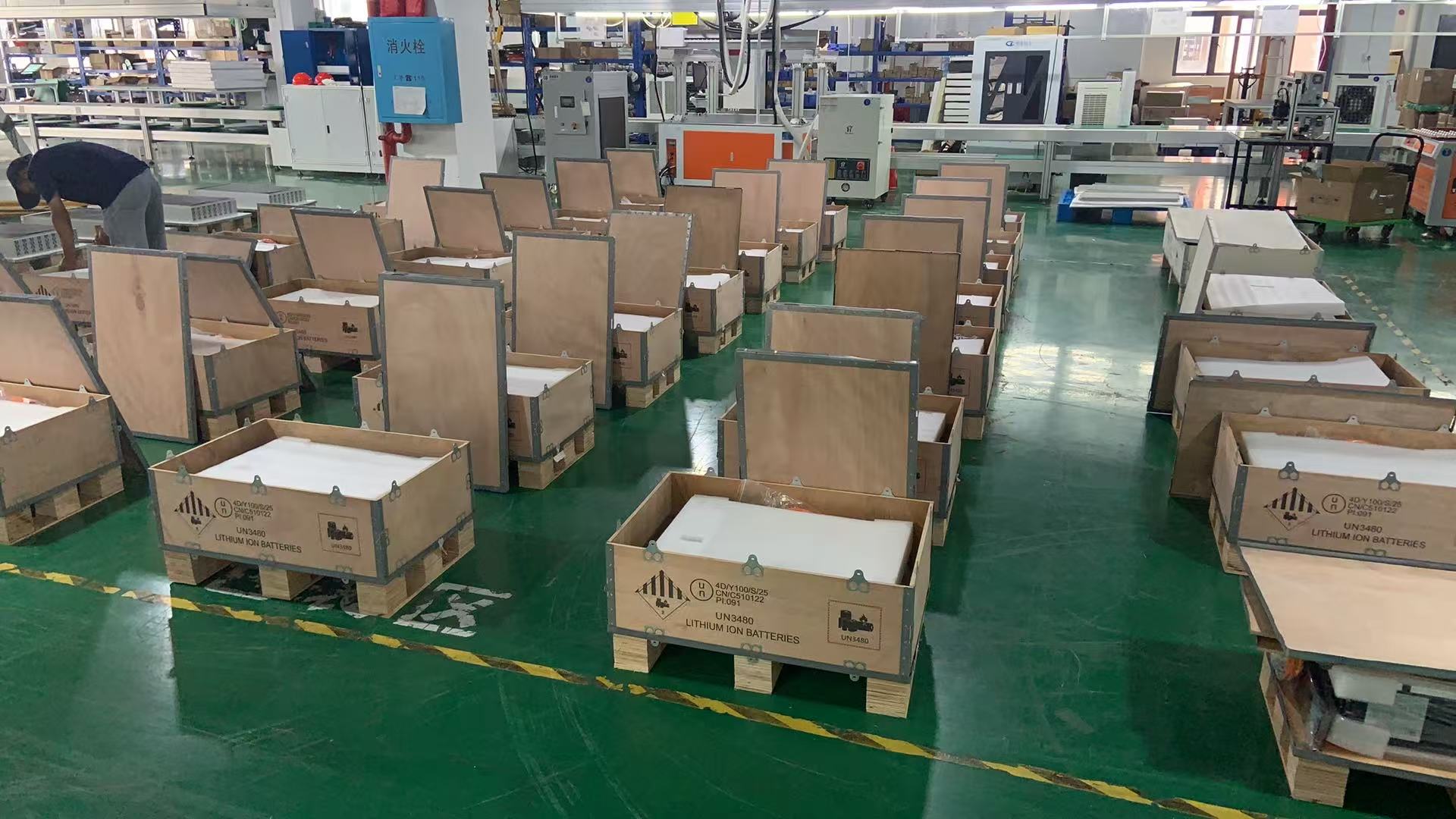

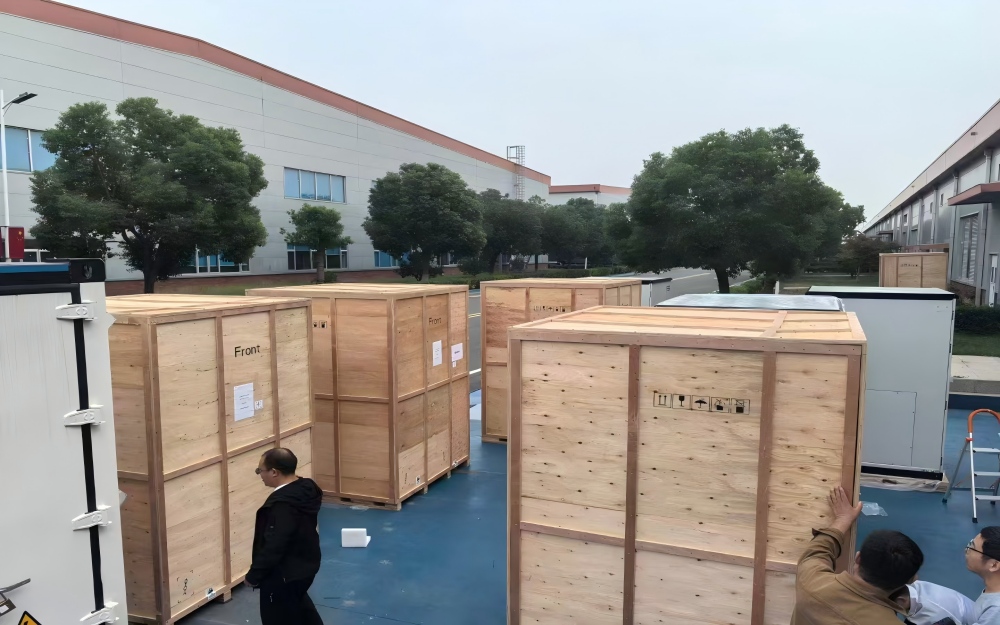

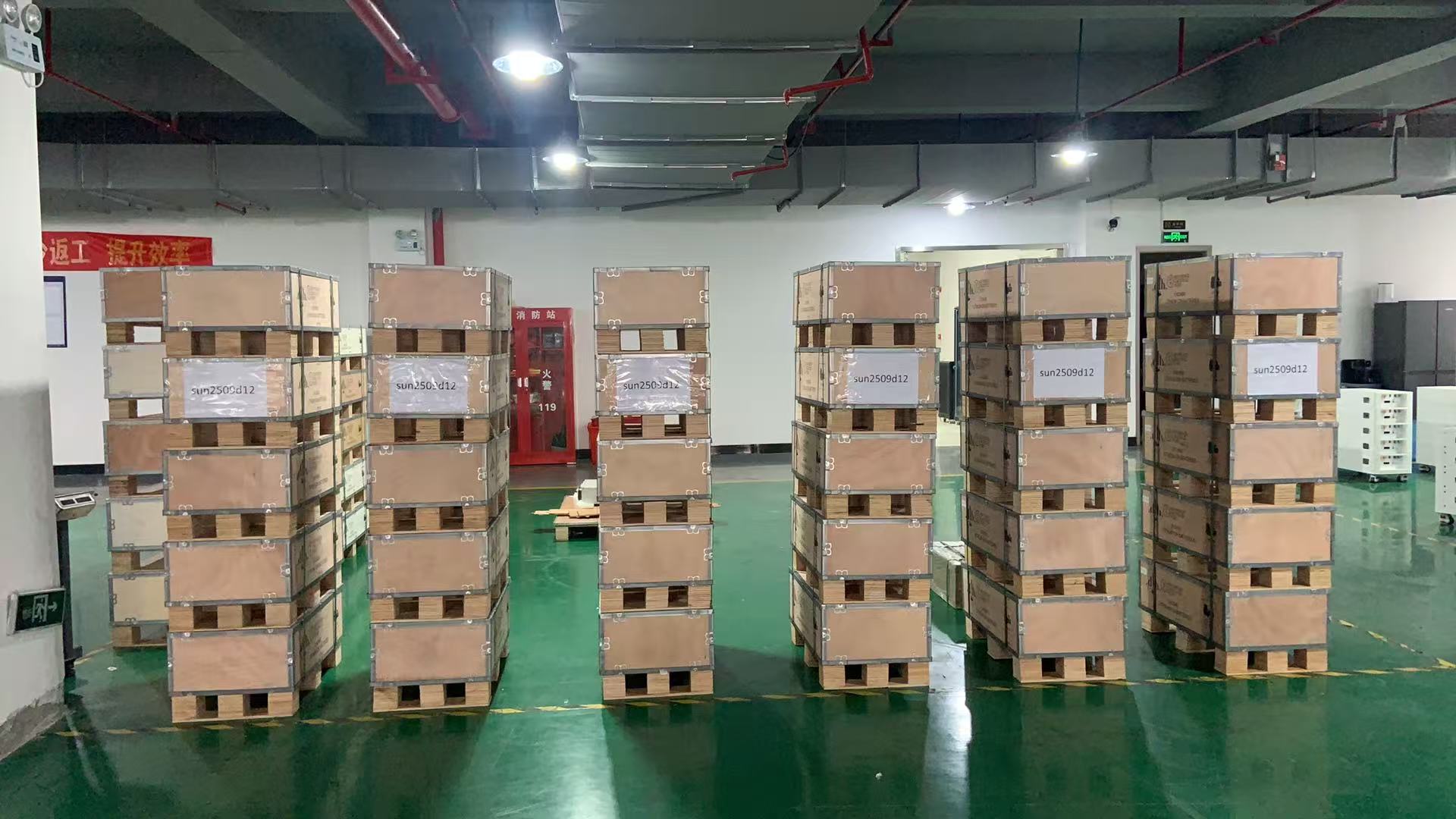

Packages and Delivery

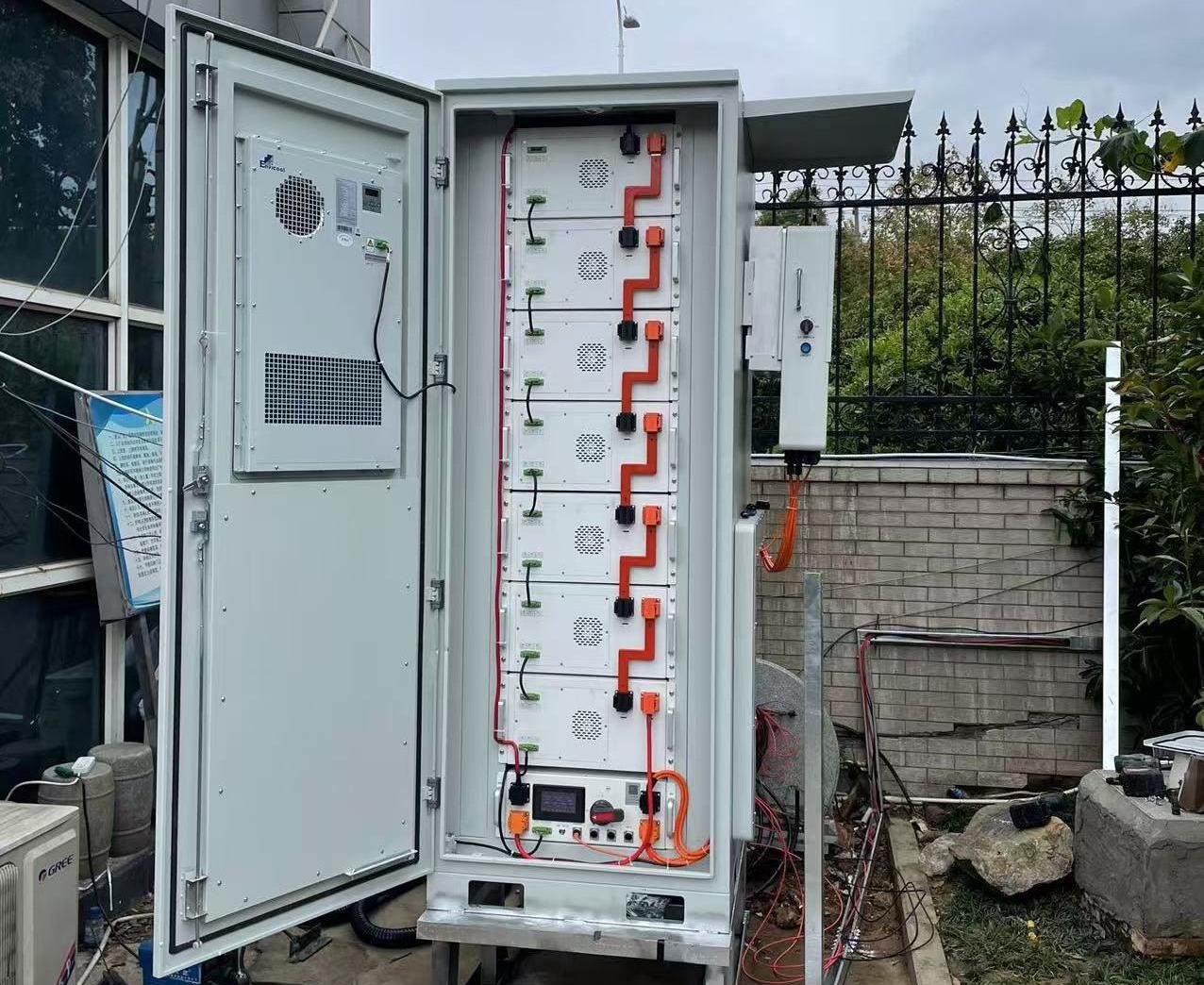

Our Projects
