Enjoy Solar 12kw 15kw 20kw Hybrid Residential Solar Energy Storage System

System Configurations

System Power		Remarks		12KW		15KW		20KW
Solar Panel		EnjoySolar/LonGi/other Brand		620WP*20PCS		620WP*27PCS		620WP*36PCS
PV Combiner Box		500Vdc/1000Vdc Built in with Breaker and SPD		2 INPUTS 2 OUTPUTS * 1PC		3 INPUTS 3 OUTPUTS * 1PC		3 INPUTS 3 OUTPUTS * 1PC
Hybrid Inverter		Deye/SNRE/AFORE 230V/400V or 120V/208V		12KW		15KW		20KW
Lithium Battery Storage		ES51200 10.24KWH /ES51300 15.36KWH		10.24KWH*2PCS		15.36KWH*2PCS		10.24KWH*3PCS
PV Connector		MC4 Compatible		8 pairs		12pairs		16 pairs
PV Cable		PV1-F/H1Z2Z2-K 1*4/6mm2		200 mtr red 200 mtr blk		300 mtr red 300 mtr blk		400 mtr red 400 mtr blk
Remote Monitoring		WIFI		1		1		1
PV Mounting Structure		Aluminum/ Steel		Customized		Customized		Customized

Main System Components

Enjoy Solar PV Panel Module

N-Type Topcon 430w -750w

Longer lifetime, lower degradation, and higher efficiency potential.

Lower internal loss, and improving the power of solar panels.

Half-cut cell design can decrease the power loss by the shadow effect.

Less Linear Degradation

Excellent weak light performance

Extremely low LID/LETID

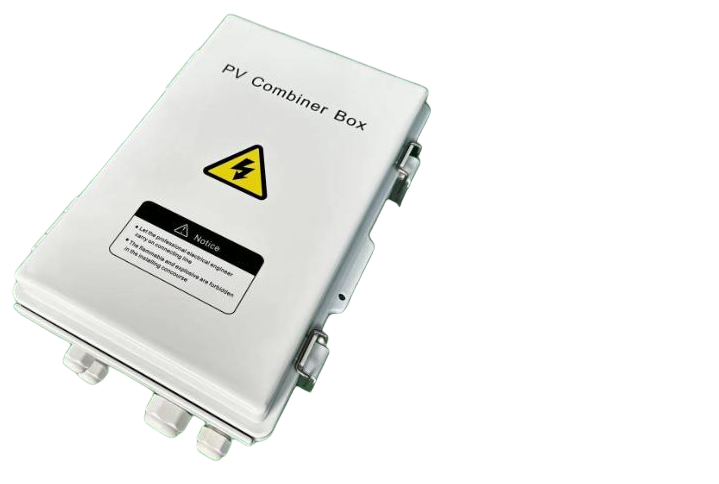

PV Combiner Box

Consolidate Outputs

Protect and Route Electricity

Facilitate Connections

Enhance Safety and Efficiency

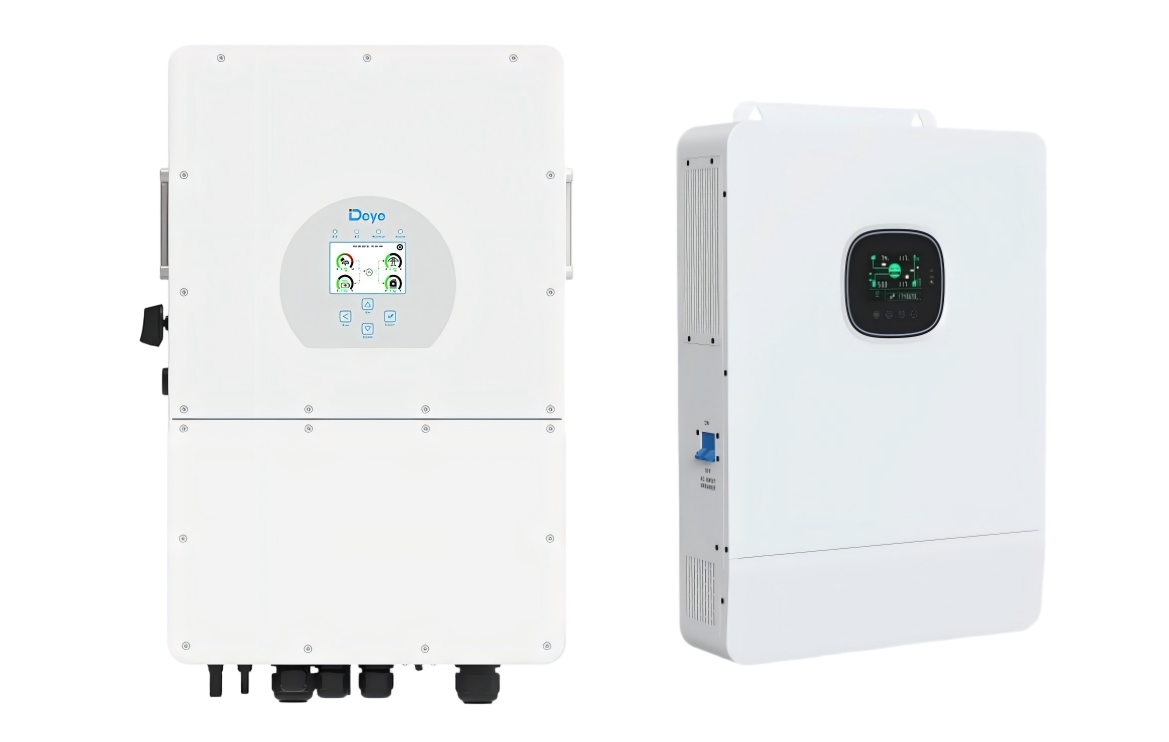

Hybrid Solar Inverter

Deye, Growatt, Solis and other brands for option

Advanced MPPT with upto 99% efficiency

Support Li-ion battery BMS communication

Intelligent multi work model for on grid, off grid and hybrid application

Support system expansion via parallel connection

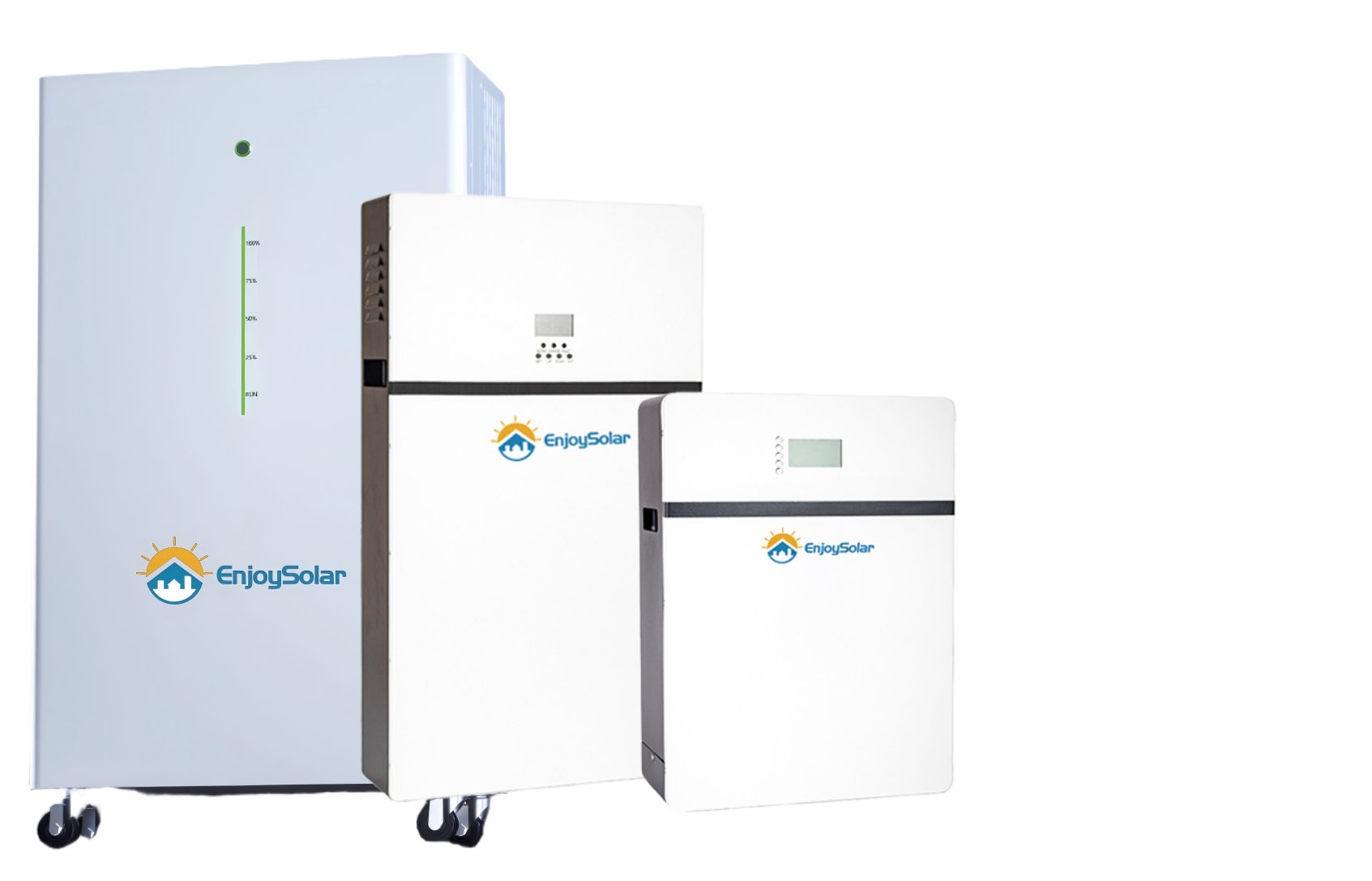

Lithium Battery Storage

Enjoy Solar 51.2V100Ah 200Ah 300Ah Residential Lithium Ion Battery Packs

High Compatible with most Residential Inverters in the market

Smart BMS system to optimize the performance

Parallel upto 16 units for higher energy storage demand

6000+ Cycles Life and 15 Years Product Design Life

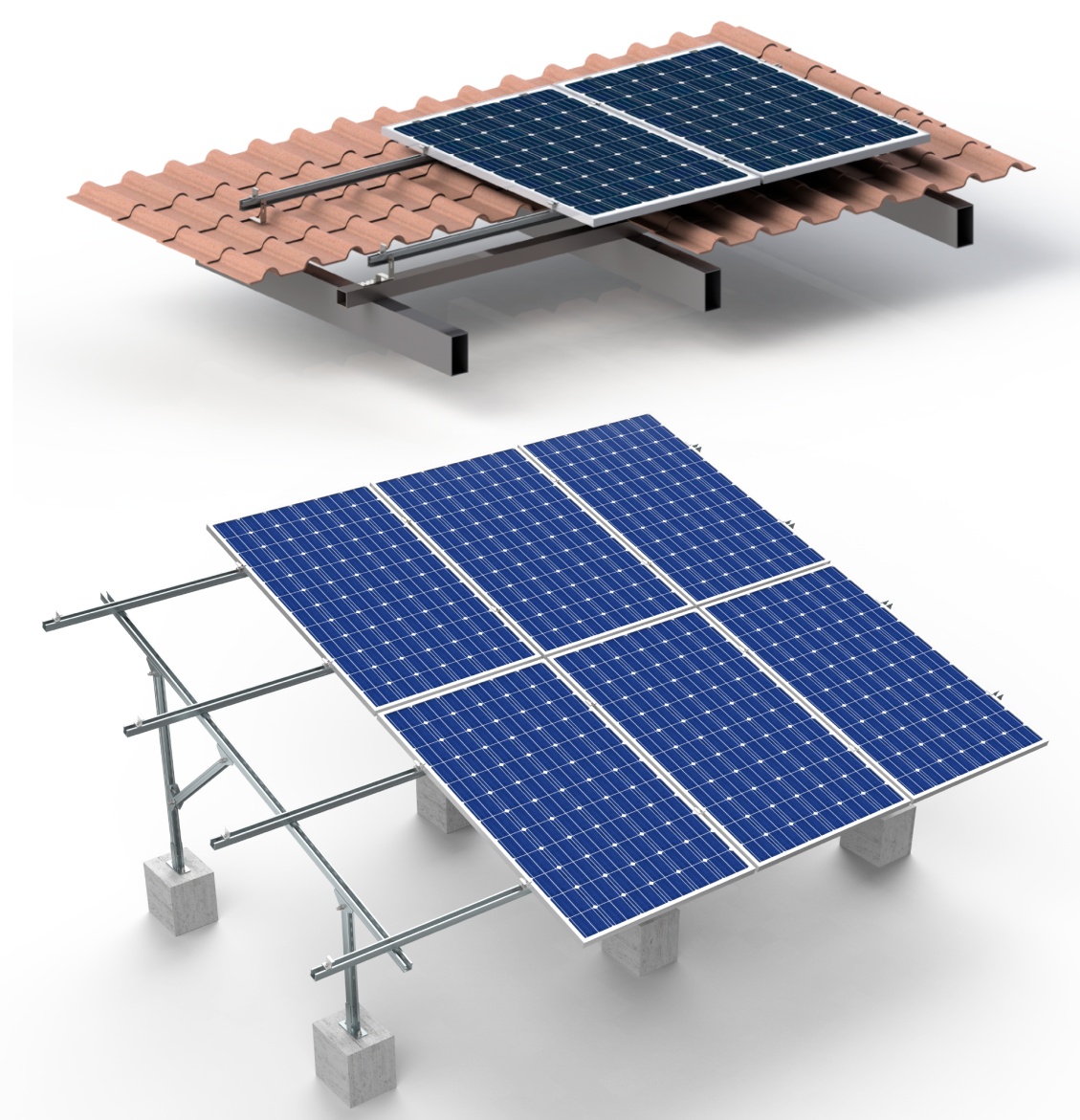

PV Mounting Structure

Material: Aluminum Alloy,  Carbon Steel,  or Zinc-Aluminum-Magnesium

Mounting Structure Type: Distributed Roof, Ground, Carpots and BIPV

Customized Project Solutions

Easy Installation
