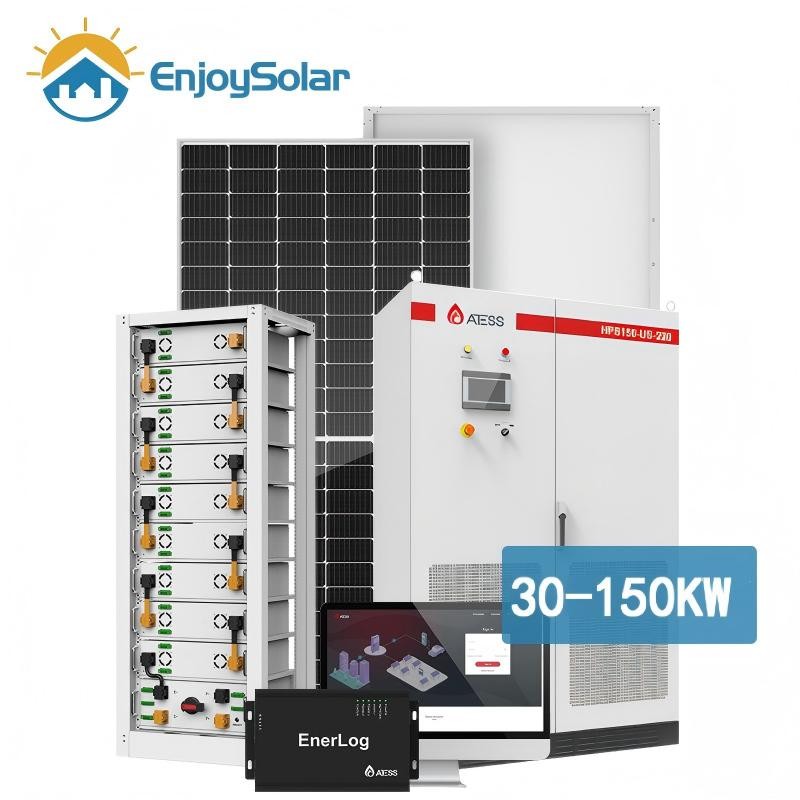

Enjoy Solar 30kw 50kw 100kw 120kw 150kw Hybrid C&I Solar Energy Storage System with Isolated Transformer for Microgrid Applications
- Category： C&I Energy Storage System
- System Power : 30KW,50KW,100KW,120KW,150KW
- Output Voltage(V) : 230V/400V or 120V/208V
- Output Frequency : 50Hz/60Hz
- Battery Type : Lithium Battery/AGM/GEL Battery.
- Product description：Solar system, 100kw hybrid solar system, hybrid solar system, solar energy storage system, 30kw solar system, system with isolated transformer

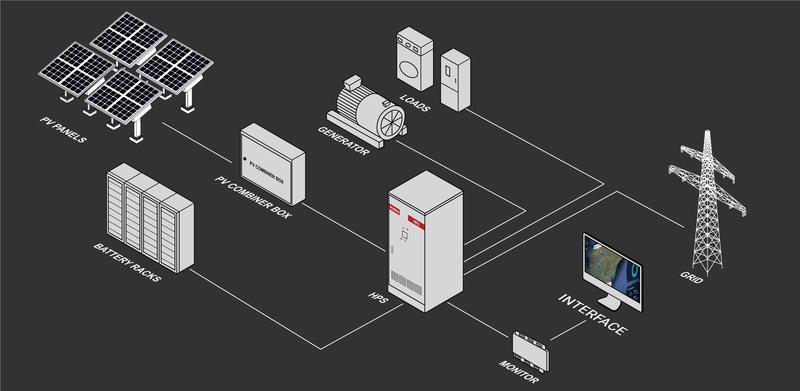

System Diagram
System Configurations
| System Power | Remarks | 30KW | 50KW | 100KW | 120KW | 150KW | |||||
| Solar Panel |
EnjoySolar/LonGi/JA/Jinko /Trina/other Brand |
620WP*54PCS | 620WP*85PCS |
620WP*162PCS |
620WP*198PCS |
620WP*252PCS | |||||
| PV Combiner Box |
1000Vdc Built in with Breaker and SPD |
3 INPUTS 1 OUTPUT* 1PC |
5 INPUTS 1 OUTPUT* 1PC
|
9 INPUTS 1 OUTPUT* 1PC |
11 INPUTS 1 OUTPUT* 1PC |
14 INPUTS 1 OUTPUT* 1PC
|
|||||
| Hybrid Inverter |
ATESS HPS 230V/400V or 120V/208V |
30KW*1PC | 50KW*1PC |
100KW*1PC |
120KW*1PC |
150KW*1PC | |||||
| Lithium Battery Storage |
ES51200HV(10.24KWH) ES51280HV(14.336KWH) ES51314HV(16.076KWH) |
ES51200HV*8PCS 409.6V200Ah (81.92KWH) |
ES51200HV*10PCS
512V200Ah(102.4KWH) |
ES51200HV*20PCS 512V400Ah(204.8KWH) |
ES51280HV*18PCS 460.8V560Ah(258KWH) |
ES51314HV*18PCS
460.8V628Ah(289.38KWH) |
|||||
| PV Connector | MC4 Compatible | 8pairs | 12pairs |
16pairs |
20pairs |
30 pairs | |||||
| PV Cable |
PV1-F/H1Z2Z2-K 1*4/6mm2 |
300 mtr red 300 mtr blk |
500 mtr red 500 mtr blk |
900 mtr red 900 mtr blk |
1100 mtr red 1100 mtr blk |
1400 mtr red 1400 mtr blk |
|||||
| Remote Monitoring | WIFI | 1 | 1 | 1 | 1 | 1 | |||||
| PV Mounting Structure | Aluminum/ Steel | Customized | Customized |
Customized |
Customized |
Customized | |||||
Main System Components

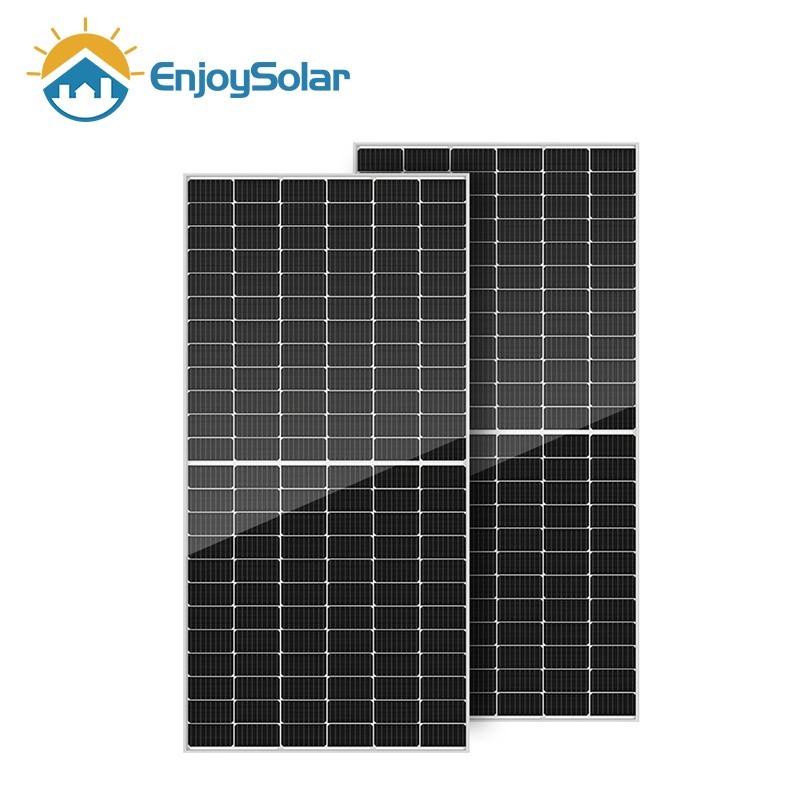

Enjoy Solar PV Panel Module
N-Type TOPCon Solar Panel (430W–750W)
High-efficiency module with advanced N-Type TOPCon cell technology for superior performance.
-
Higher efficiency & lower degradation
-
Reduced internal power loss
-
Half-cut cell design minimizes shading impact
-
Excellent performance in low-light conditions
-
Extremely low LID/LETID losses
Reliable, durable, and designed for greater long-term energy yield.
PV Combiner Box
Key Functions:
-
String Combining: Parallel connection of multiple PV strings into a single DC output.
-
Circuit Protection: Provides overcurrent protection for each string via fuses or DC circuit breakers.
-
Surge Protection: Guards against lightning strikes and voltage spikes with integrated SPDs.
-
Isolation & Disconnection: Allows safe system shutdown and maintenance through disconnect switches.
-
Monitoring (Optional): Supports voltage/current measurement per string for performance tracking.

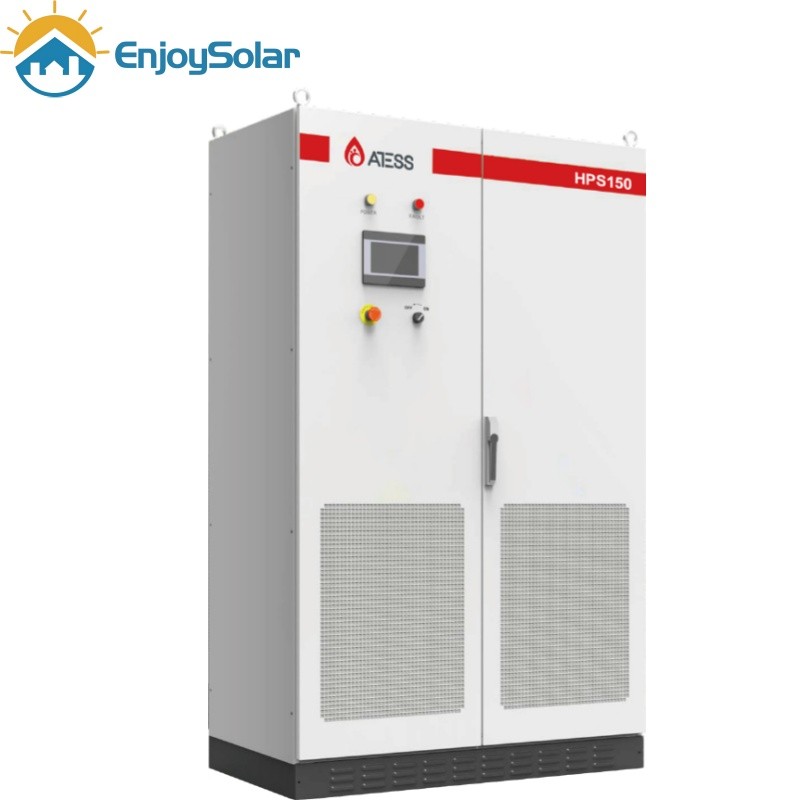

Hybrid Solar Inverter
ATESS 30-150kW All-in-One Energy Storage Inverter
Compact and fully integrated — combining PV inverter, charge controller, and bypass cabinet in one unit.
-
Ultrafast Switching: Seamless transition <10ms during grid failure
-
Wide Compatibility: Supports battery, load, grid, and solar connections
-
Scalable Capacity: Expandable up to 600kW total system output
-
Models Available: 30/50/100/120/150kW
-
Application: Ideal for small to medium commercial & industrial use
Efficient, reliable, and built to scale with your energy needs.

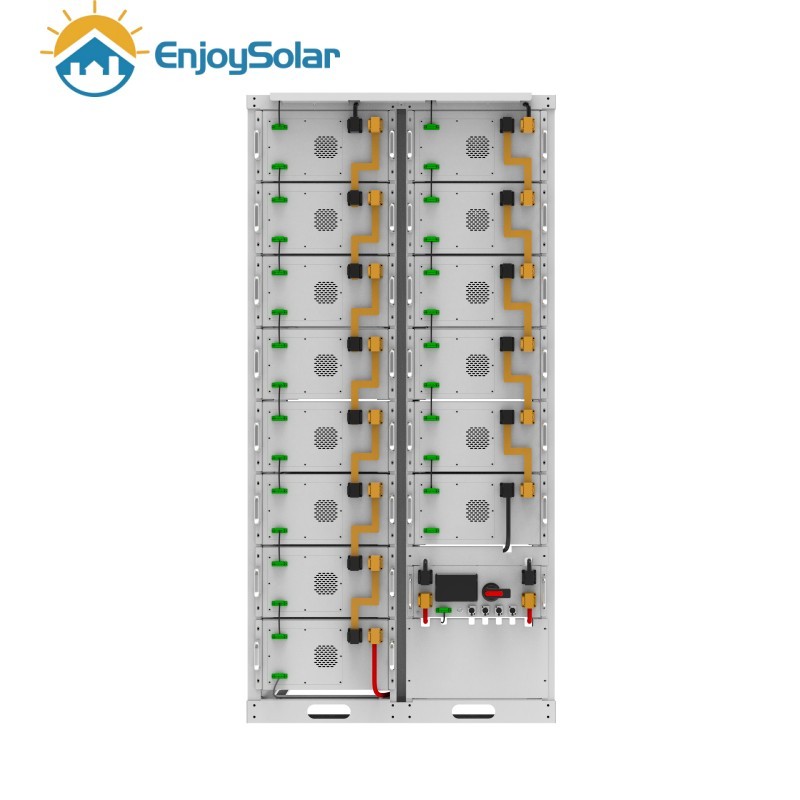

Lithium Battery Storage
Enjoy Solar 51.2V 280Ah / 314Ah HV Lithium-Ion Battery Packs
-
Smart BMS optimizes performance & safety
-
Excellent heat dissipation & high cell consistency
-
Modular BMS and breaker protection
-
6,000+ cycles, 15-year design life
-
- Compatible with most inverters.
PV Mounting Structure
Material: Aluminum Alloy, Carbon Steel, or Zinc-Aluminum-Magnesium
Mounting Structure Type: Distributed Roof, Ground, Carpots and BIPV
Customized Project Solutions
Easy Installation
