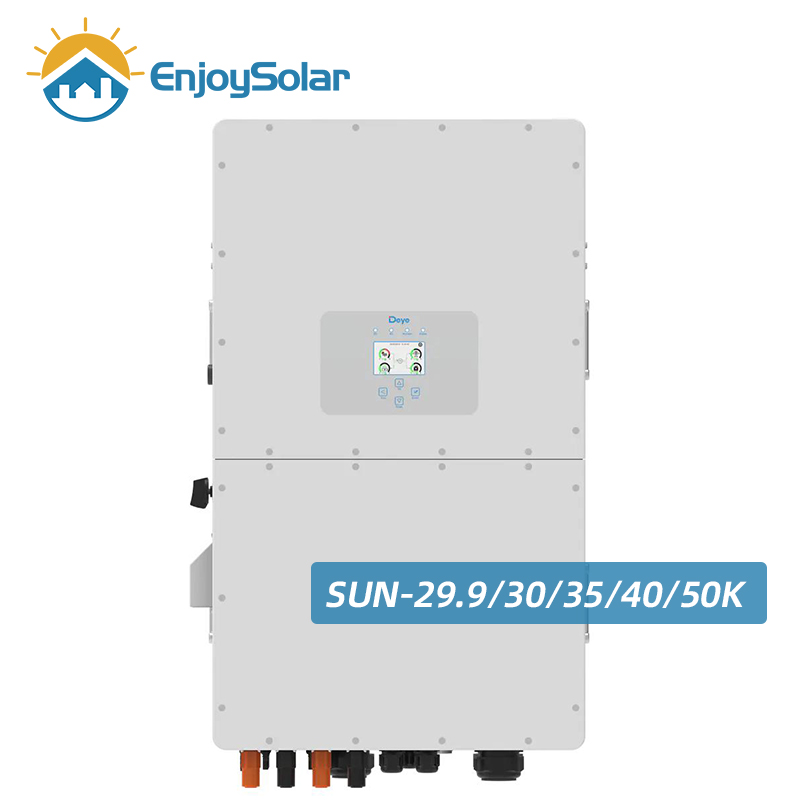

Deye 30KW 40KW 50KW Solar Hybrid Inverter 400V Three Phase EU Standard with CE TUV Certificate

Deye 30KW 40KW 50KW Solar Hybrid Inverter 400V Three Phase EU Standard with CE TUV Certificate

Category： Hybrid Inverter
Brand: DEYE
Inverter Type: 380V/400V 3 Phase Hybrid
Battery Type: Lead-acid or Lithium-ion
Certificate : TUV, ETL, CSA, CE, ISO
Product description： Deye Hybrid Inverter, 30kw inverter, 50kw inverter, solar inverter, hybrid inverter
INQUIRY EMAIL

Deye Hybrid Inverter Solution Diagram

Deye Energy Storage Solutions

Feature 1: Solar Self-Consumption Optimization

Function: During daylight, PV power is first directed to support active loads. Any surplus energy is then used to charge the battery via the hybrid inverter.

Benefit: Maximizes the use of on-site solar generation and stores excess energy for later use.

Feature 2: Critical Load Backup Power

Function: Equipped with independent grid and critical load output ports. In the event of a grid failure, the system automatically switches to battery power within 4ms to supply designated circuits.
Benefit: Ensures uninterrupted operation of essential appliances (e.g., refrigerators, computers, lighting) and can handle the startup surge of non-inverter air conditioners.

Feature 3: Electricity Cost Reduction

Function: Offers six programmable time-of-use periods for charge/discharge scheduling and includes a grid peak shaving function to limit maximum grid power draw.
Benefit: Enables charging from the grid at low-cost, off-peak rates and discharging during expensive peak hours, directly reducing electricity bills.

Product Briefing

SUN-50K-SG01HP3-EU-BM4 | 7.6-12kW |Single Phase

| 2 MPPT | Hybrid Inverter | LV Battery Supported

Higher yields / Safe & Reliable / Smart / User-friendly

• Interface & Protection: Features a color touch-screen LCD with an IP65 environmental protection rating.
• System Integration: AC-coupled for easy retrofitting to existing solar systems. Supports parallel operation of up to 16 units for both grid-tied and off-grid systems.
• Battery & Power Management: Maximum charging/discharging current of 250A. Supports six programmable time periods for battery operation and allows energy storage from diesel generators.
• Scalability: Compatible with multiple battery banks in parallel for flexible capacity expansion.

Product Parameters

Model	SUN-29.9K-SG01HP3-EU-BM3	SUN-30K-SG01HP3-EU-BM3	SUN-35K-SG01HP3-EU-BM3	SUN-40K-SG01HP3-EU-BM4	SUN-50K-SG01HP3-EU-BM4
Battery Input Data
Battery Type	Lithium-ion
Battery Voltage Range(V)	160-800
Max.Charging Current(A)	50+50
Max.Discharging Current(A)	50+50
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of battery input	2
PV String Input Data
Max. PV Access Power (W)	59800	60000	70000	80000	100000
Max DC Input Power(W)	47840	48000	56000	64000	80000
Max DC Input Voltage(V)	1000
Start-up Voltage(V)	180
MPPT Voltage Range(V)	150-850
Rated DC Input Voltage(V)	600
Max Input Short-Circuit Current(A)	55+55+55			55+55+55+55
Max Operating PV Input Current(A)	36+36+36			36+36+36+36
No.of MPP Trackers/No.of String Per MPP Tracker	3/2+2+2			4/2+2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power(W)	29900	30000	35000	40000	50000
Max AC Input/Output Apparent Power (VA)	29900	33000	38500	44000	55000
Peak Power (off-grid)(W)	1.5 times of rated power,10s
Rated AC Input/Output Current(A)	45.4/43.4	45.5/43.5	53.1/50.8	60.7/58.0	75.8/72.5
Max AC Input/Output Current(A)	45.4/43.4	50/47.9	58.4/55.8	66.7/63.8	83.4/79.8
Max Continuous AC Passthrough (grid to load)(A)	200
Rated Input/Output Voltage/Range(V)	220/380V,230/400V 0.85Un-1.1Un
Grid Connection Form	3L+N+PE
Rated Input/Output Grid Frequency/Range	50/45-55, 60/55-65
Power Factor Adjustment Range	0.8 leading-0.8 lagging
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5%ln
Efficiency
Max Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	>99%
Equipment Protection
Integrated	DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
	AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,
	Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),
	Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,
	DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level	TYPE II(DC), TYPE II(AC)
Interface
Communication Interface	RS485/RS232/CAN
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range	-40ºC+60ºC,>45ºC Derating
Permissible Ambient Humidity	0-100%
Permissible Altitude	2000m
Noise	≤ 65 dB(A)
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC III(AC)
Cabinet size(WHD)[mm]	527894294(Excluding connectors and brackets)
Weight[kg]	80
Warranty	5 Years/10 Years
	the Warranty Period Depends the Final Installation Site of Inverter, More Info Please Refer to Warranty Policy
Type Of Cooling	Intelligent air cooling
Grid Regulation	IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,
	OVE-Richtlinie R25, G99, VDE-AR-N 4105
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
