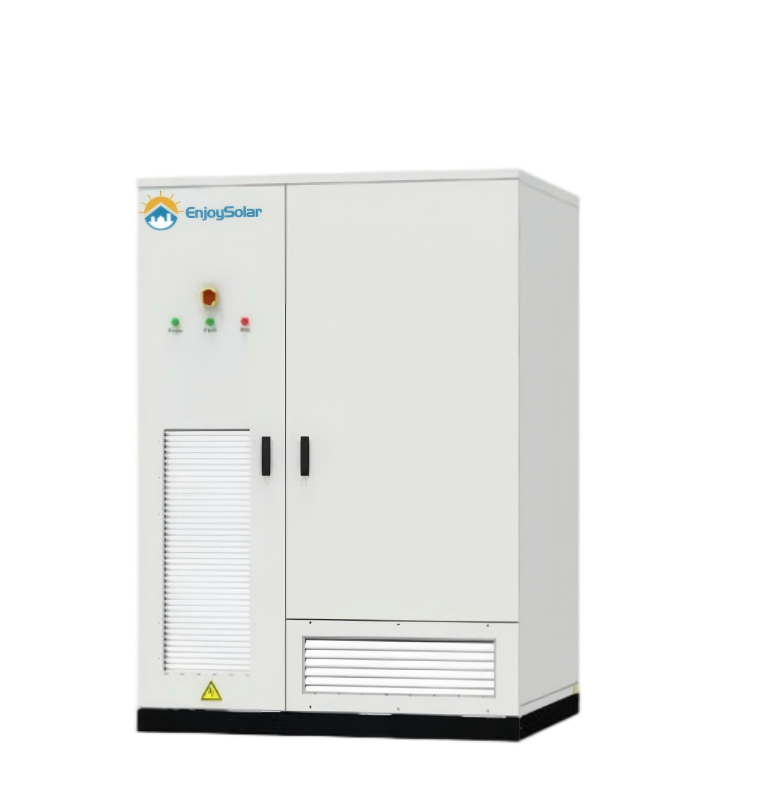

Liquid Cooling 125KW 261kwh PCS All In One Lithium Battery Outdoor Cabinet

Category： Outdoor BESS Cabinet & Container
PCS Power:125KW
Battery Capacity: 261kwh
Cooling Method: Liquid Cooling
Rated AC Voltage: 400V, 3W+PE
Product description：Liquid cooling, liquid cooled, bess cabinet, all in one cabinet, solar cabinet, energy storage cabinet
INQUIRY EMAIL

Key Features

Highly integrated:

The system has been commercialized, integrating energy storage batteries, energy storage converters, photovoltaic converters, energy management monitoring systems, power distribution systems, control systems, and fire environmental control systems. lt can fully control the operation status and risks of the system.

Space saving:

It adopts door-mounted embedded integrated air conditioning, which does not occupy cabinet space, improves the available space of outdoor cabinets, has better structural integrity at the top, and has good waterproof performance.

Intelligent management:

Real-time liquid leakage monitoring, reducing on-site operation and maintenance work, supporting local control or cloud platform management intelligent system, equalization strategy, real-time system warning, to ensure the consistency of the whole life cycle of the battery.

High efficiency and safety:

The local control screen can achieve diversified functions such as system operation monitoring, energy management strategy development, equipment remote upgrading, etc.

Specification

Model	ES-50C	ES-100C	ES-100CL	ES-125C	ES-125CL	ES-215CL
Model	50(100kWh)	100(215kWh)	100(232kWh)	125(253kWh)	125(261kWh)	215(418kWh)
Battery rated capacity	100kWh	215kWh	232.96kWh	215kWh	232.96kWh	418kWh
Battery rated voltage	844.8V	768V	832V	768V	832V	1331.2V
Battery type	Lithium iron phosphate battery(LFP)
Series of Battery	1P24S11S	1P20S12S	1P52S5S	1P20S12S	1P52S5S	1P52S8S
Rated AC power	50kW	100kW	100kW	100kW	100kW	215kW
Rated AC current	72A	144A	144A	144A	144A	180A
Rated AC voltage	400V, 3W+N+PE	400V, 3W+PE	400V, 3W+PE	400V, 3W+PE	400V, 3W+PE	690V, 3W+PE
Rated AC frequency	50/60Hz
THDi	<3%(Rated power)
Power Factor	-1leading to+1 lagging
THDI	<3%(Linear Load)
Protection level	IP55
Isolation mode	No-Isolation
Shutdown self-discharge	<0.1%Rated power(Without transformer)
Relative humidity	0 ~ 95% (no condensation)
Noise	<78dB
Ambient temperature	-25℃ to +60℃(Derating above 45℃)
Cooling mode	Intelligent air-cooled
Altitude	3000m (> 2000m reduction)
Communication interface	CAN/Ethernet / 485
Size (W * D * H)	130010002100mm	160012002300mm	135013502300mm	160012002300mm	135013502300mm	160013502300mm
Weight (approx.)	1700kg	2400kg	2700kg	2400kg	2700kg	3900kg

Working Mode & Diagram

Enjoy Solar has experienced multi-scenario energy storage solution capabilities. We especially skilled at providing professional and intelligent solutions for complex scenarios, such as islands, border defenses and other remote micro grids with no electricity or unstable power supply.

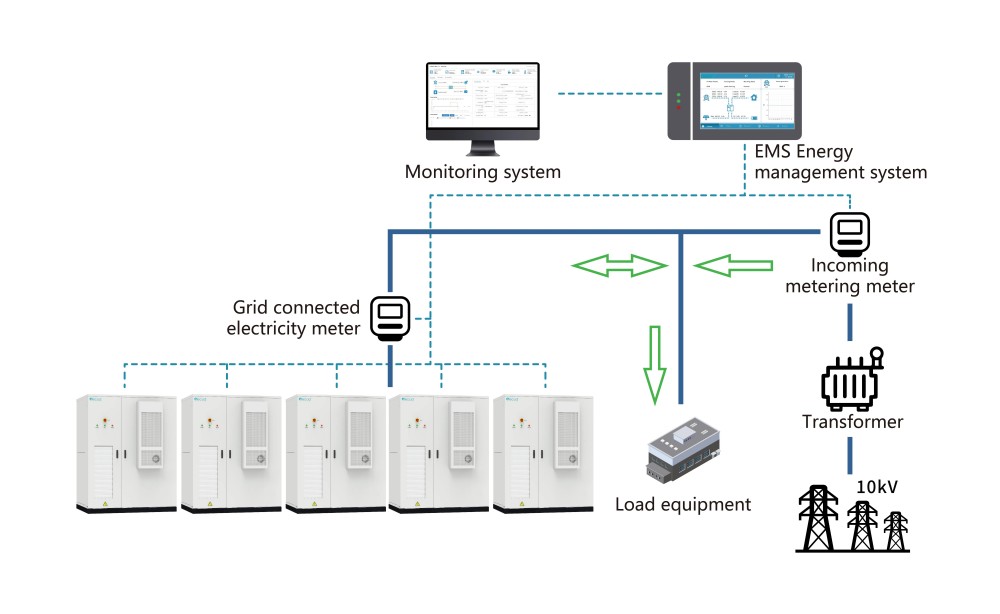

Energy Storage System Peak Shaving Solution(On Grid)

The solution is specially designed to reduce industrial and commercial electricity costs, improve power supply reliability and improve power quality. By deploying energy storage and implementing integrated energy management, industrial and commercial users with fluctuating power loads can effectively reduce their electricity expenses. During power outages in the main power grid, the ESS can provide continuous power supply to local loads to ensure uninterrupted production and operation for C&I users. This solution uses 5 sets of outdoor cabinet energy storage system, which support up to 15 units in parallel. It's an ideal choice for application scenarios such as factories, residential areas, shopping centers, hospitals, and hotels. This product is also suitable for AC side coupling applications.

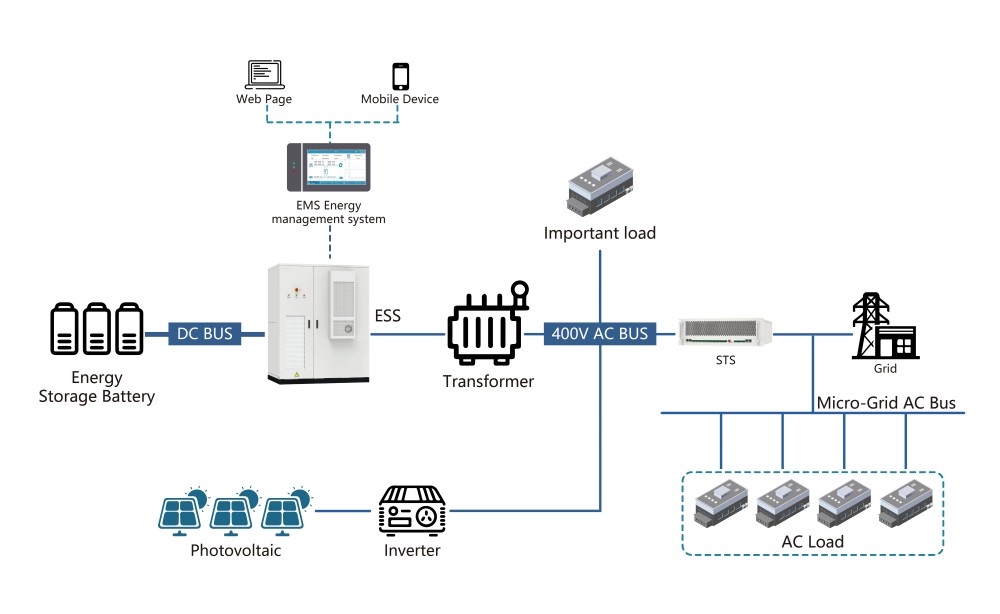

Solar/PV+Energy Storage System Solar Self-Consumption Solution

The solution is specially designed to solve the problem of photovoltaic consumption. By stores photovoltaic power in batteries directly and discharges it to the load at night, It has pretty of advantages in solving the consumption problem, including smoothing the load for users and reducing electricity costs. This solution uses 5 sets of modular outdoor cabinet energy storage system, which supports up to 15 units in parallel. It's an ideal choice for peak-shaving and valley-filling in zero-carbon parks and villa communities.

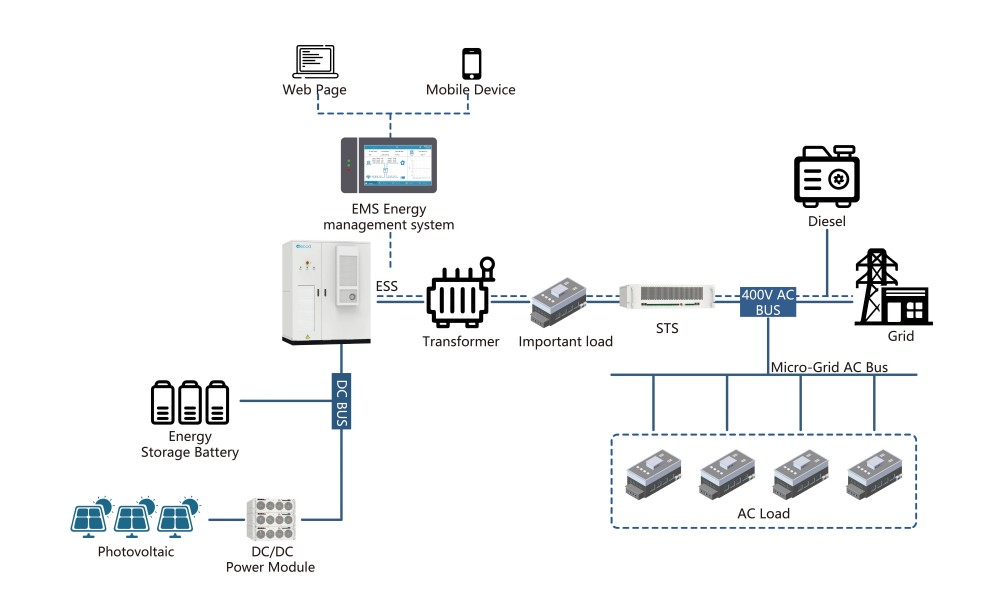

PV/Generator+ESS Backup Power Supply Solution(Microgrid/Off Grid)

This solution is specially designed for remote areas such as islands, mountainous areas, and border posts where power supply is unstable. It's responsible for providing power balance and control for micro grids in various energy systems such as photovoltaic, wind power, diesel engines, and public power grids. Photovoltaic/diesel generators are charged during the day and run off-grid at night. It's an ideal choice for application scenarios such as farms, construction tower cranes, and oil fields.
