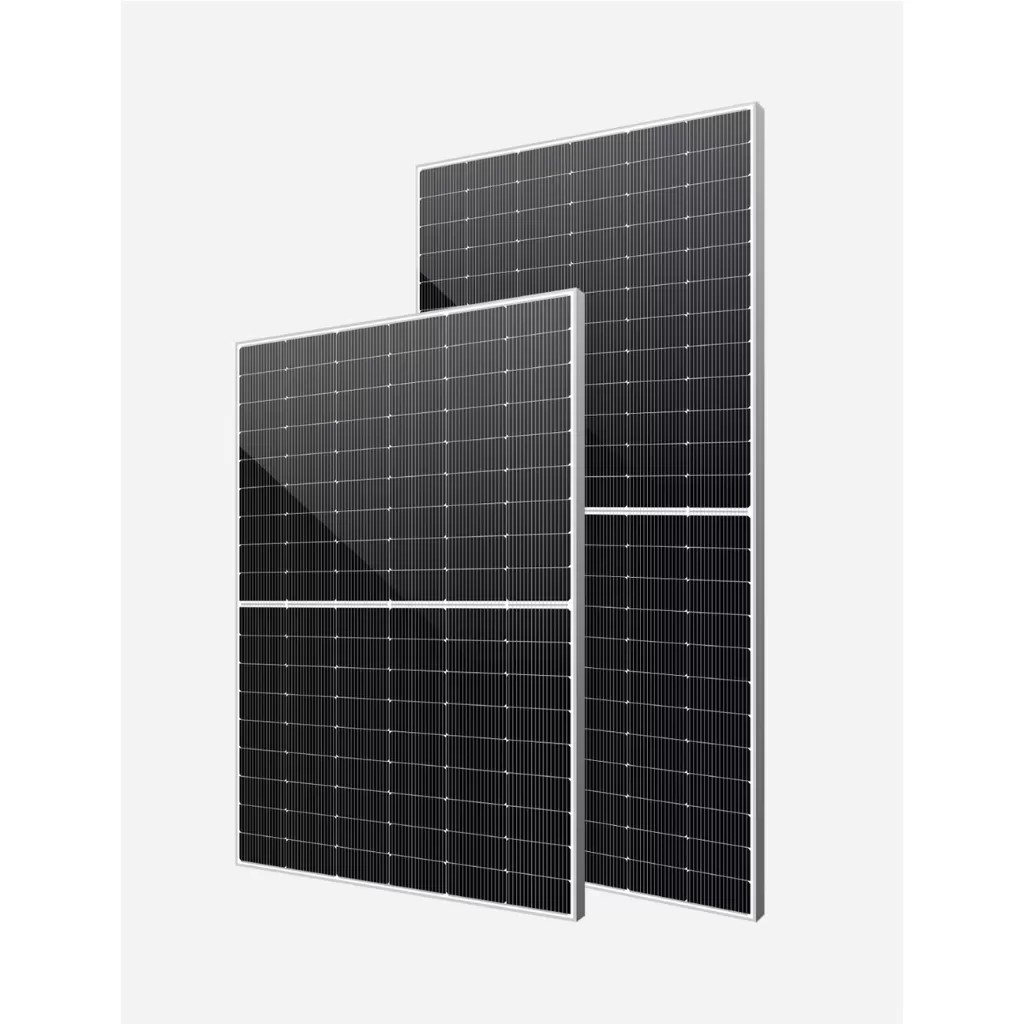

Enjoy Solar 590w 600w 610w 620w 630w N-Type Topcon Solar Cell Solar Panel

Category： Solar Panel
Solar cell : N-Type Topcon
Number of cells : 144 (72*2)
Size : 2278*1134*30mm
Certificate : IEC/ CE / TUV
Product description：Topcon solar panel, 600w solar panel, 620w solar panel, n type solar panel, bifacial solar panel, solar panel
INQUIRY EMAIL

Product Description

Electrical Characteristics(STC/BSTC)
Module Type	ES600-72M-H8NS		ES610-72M-H8NS		ES620-72M-H8NS		ES630-72M-H8NS
Test Conditions	STC	NOCT	STC	NOCT	STC	NOCT	STC	NOCT
Maximum Power-Pmax(w)	600	452	610	460	620	468	630	476
Open Circuit Voltage-Voc(V)	50.92	49.65	51.32	50.03	51.72	50.41	52.12	51.1
Short Circuit Current-Isc(A)	15.74	11.41	15.86	11.51	15.98	11.61	16.1	11.71
Voltage at Pmax-Vmp(V)	42.46	40.3	42.78	40.52	43.1	40.74	43.42	40.96
Current at Pmax-Imp(A)	14.14	11.22	14.26	11.36	14.39	11.49	14.51	11.61
Module Efficiency-%	23.22	/	23.61	/	24	/	24.39	/
Power Tolerance(W)	(0, +5W)
Maximum System Voltage(V)	1500Vdc(IEC/UL)
Maximum Series Fues Rating(A)	35A
*STC: Irradiance 1000W/m2, Cell Temperature 25℃, Air Mass 1.5
*NOCT: irradiance 800W/m2, Ambient Temperature 20℃, Air Mass 1.5, Wind Speed 1m/s
Measurement tolerance: ±3% Power binnig up to: +3%

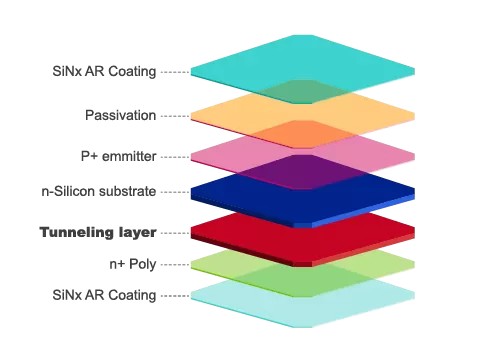

Topcon Technology

Extraordinary N-type Solar Panel, 450 Solar Panel, 23.04% Ultra-high Eff

Compared with PERC solar panels, TOPCon solar panels based on N-type Silicon wafers, have a longer lifetime, lower degradation, and higher efficiency potential.

450w TOPCon solar panel's efficiency up to 23.04%,

630w TOPCon solar panel's efficiency up to 24.39%,

and 730w TOPCon solar panel's efficiency up to 23.50%

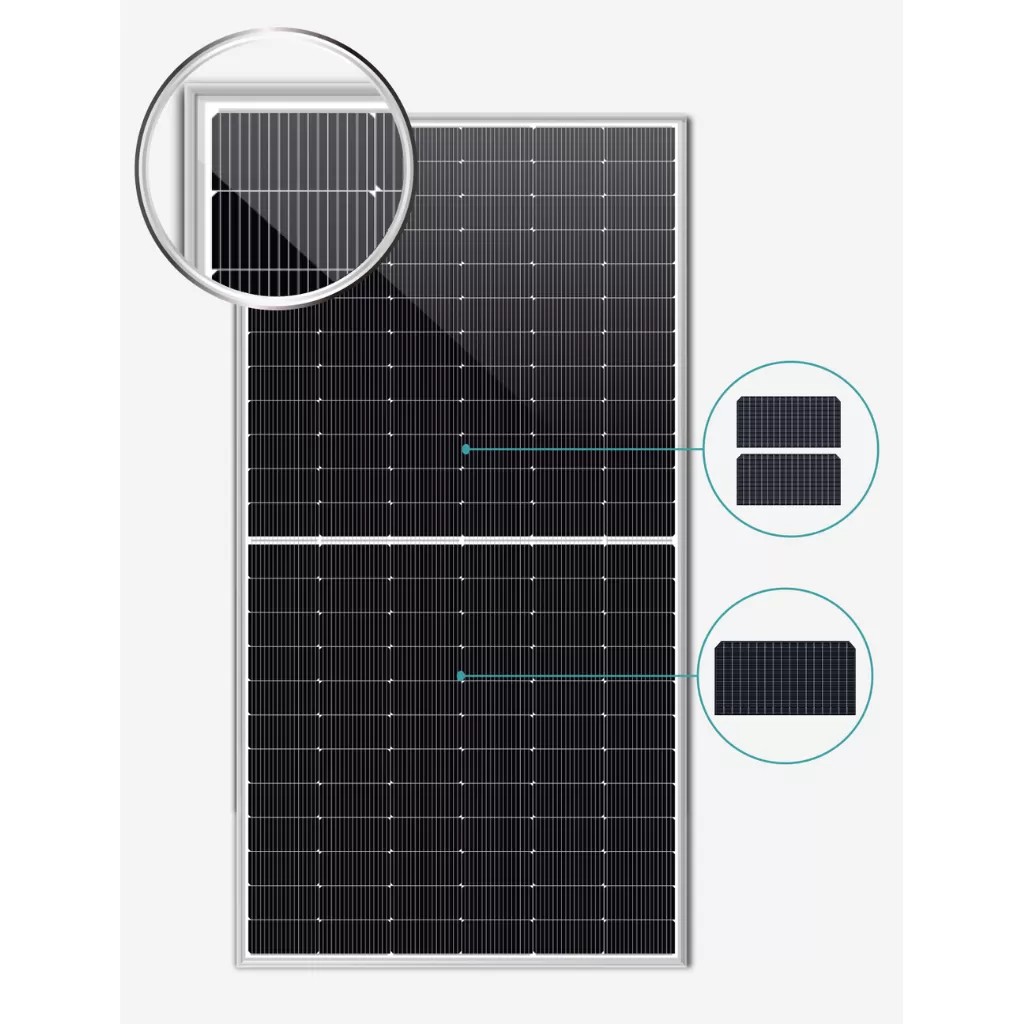

16BB Super-MBB Technology

Half Cell Technology

Enjoy Solar TOPCon Solar Panel adopts 16-busbar technology.

More busbars of the cell decrease the current transverse propagation path by 50%, effectively reducing the internal loss, and improving the power of solar panels.

The half-cut cell design can decrease the power loss by the shadow effect.

The optimized circuit design not only realizes the maximum power output but also assures the reliability of solar panels.

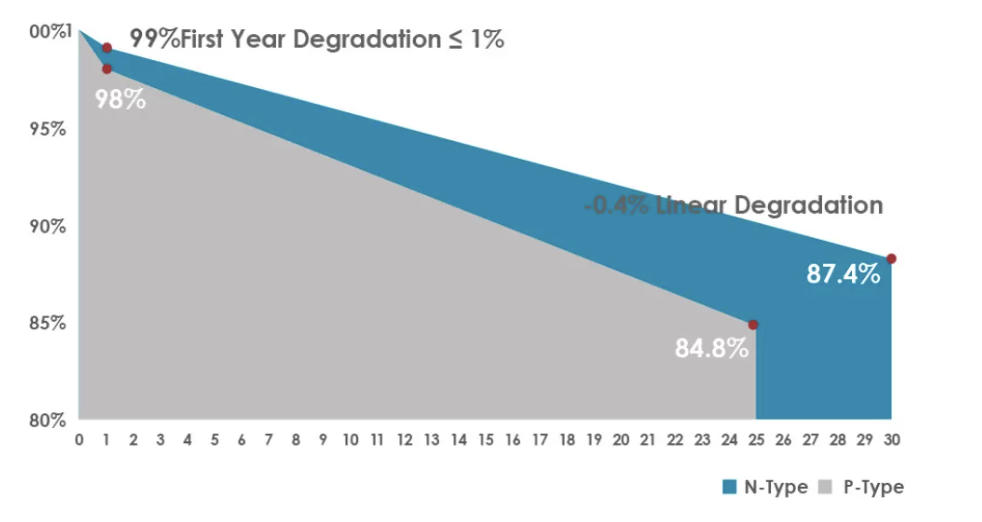

First Year Degradation ≤ 1%
-0.4% Linear Degradation

Comparing with PERC solar panel, TOPCon solar panel first year degradation is less than.

After 30 years of certification, the output power is not less than 87.40% of the original output power.

-0.30%/℃ Optimized Temp Coeff

Excellent weak light performance

Enjoy Solar TOPCon solar panel has Excellent weak light performance.

When under cloudy, haze condition, weak light performance help gets more production.

The temperature coefficient of the PERC solar panel is -0.35%/℃, TOPCon solar panel is -0.30%/℃.

A temperature coefficient rating of -0.30%/℃, supports TOPCon solar panels to generate up to 2% more power than PERC solar panels at high temperatures.
