Enjoy Solar 1MW 2MW 3MW 4MW 5MW Grid Tied Three Phase Solar Power System

Category： Grid-tied Solar System
System Power : 1MW,2MW,3MW,4MW,5MW
Output Voltage(V) : 230V/400V or 277/480V
Output Frequency : 50Hz/60Hz
Inverter Type; String MPPT inverter or Central Inverter
Product description：grid tied solar system, 1mw solar system, solar panel system, on grid solar system, solar array system, 5mw solar system
INQUIRY EMAIL

System Configurations

System Power	Remarks	1MW	2MW	3MW	4MW	5MW

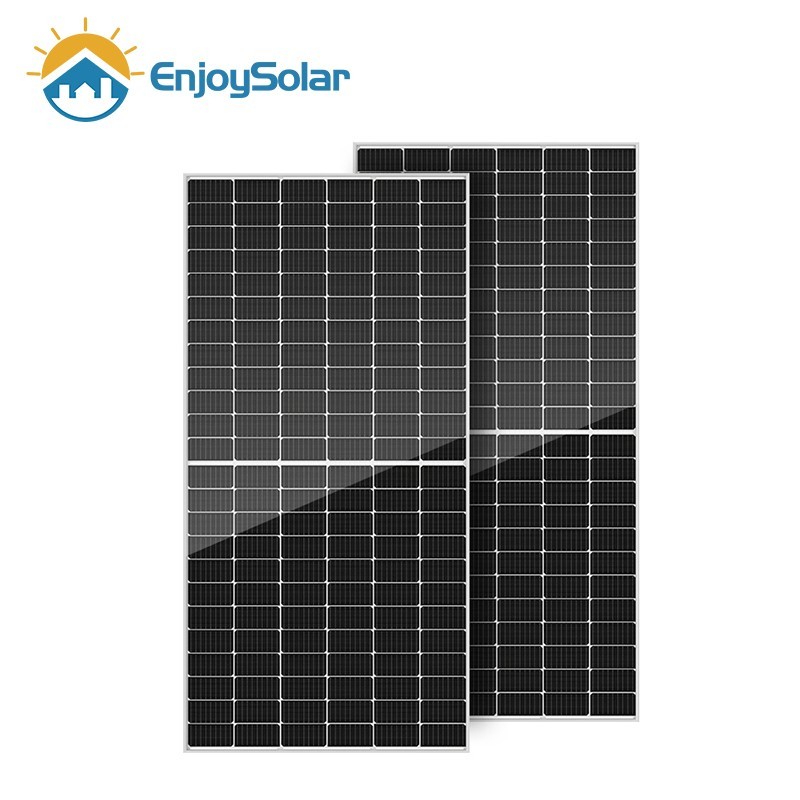

Solar Panel	EnjoySolar/LonGi/other Brand	620WP*1680PCS	620WP*3360PCS	620WP*5040PCS	620WP*6720PCS	620WP*8300PCS
PV Combiner Box	1000Vdc/1500Vdc Built in with Breaker and SPD	14 INPUTS & 14 OUTPUTS * 10PCS	14 INPUTS & 14 OUTPUTS * 20PCS	14 INPUTS & 14 OUTPUTS * 40PCS	14 INPUTS & 14 OUTPUTS * 40PCS	14 INPUTS & 14 OUTPUTS * 50PCS

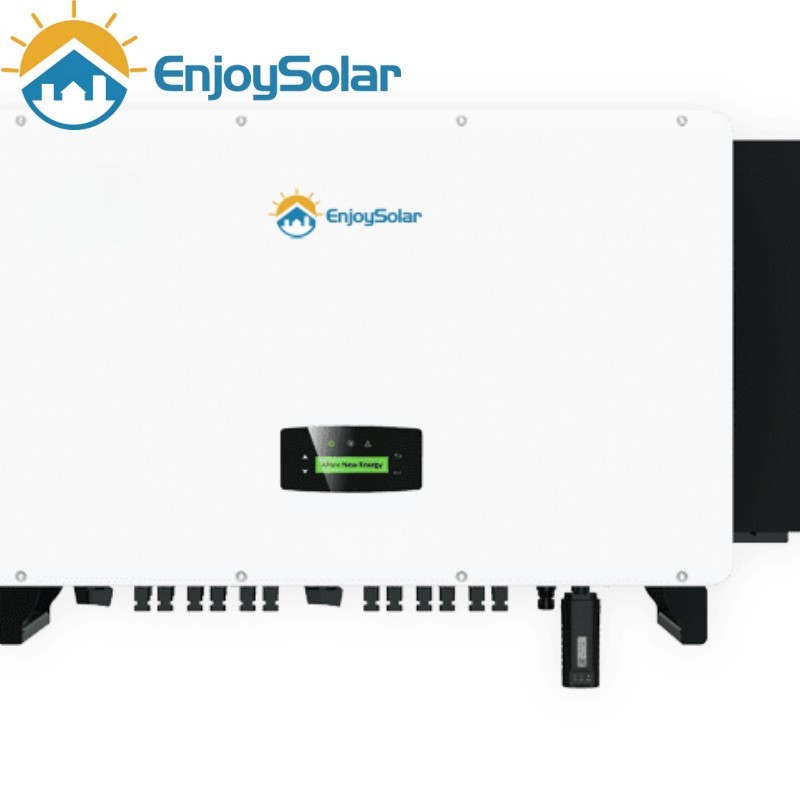

On Grid Inverter	Growatt/SOLIS/AFORE 230V/400V or 277V/480V	100KW * 10PCS	100KW * 20PCS	100KW * 30PCS	100KW * 40PCS	100KW * 50PCS
PV Connector	MC4 Compatible	3000 pairs	6000 pairs	9000 pairs	12000 pairs	15000 pairs
PV Cable	PV1-F/H1Z2Z2-K 1*4/6mm2	20000 mtr red 20000 mtr blk	30000 mtr red 30000 mtr blk	40000 mtr red 40000 mtr blk	50000 mtr red 50000 mtr blk	60000 mtr red 60000 mtr blk
Remote Monitoring	WIFI	1	1	1	1	1

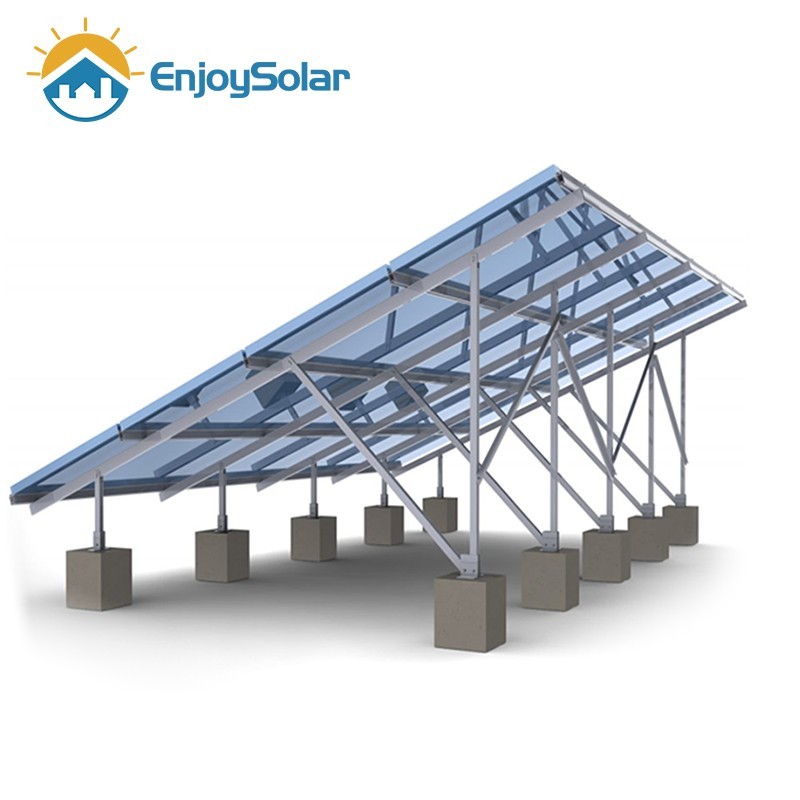

PV Mounting Structure	Aluminum/ Steel	Customized	Customized	Customized	Customized	Customized
