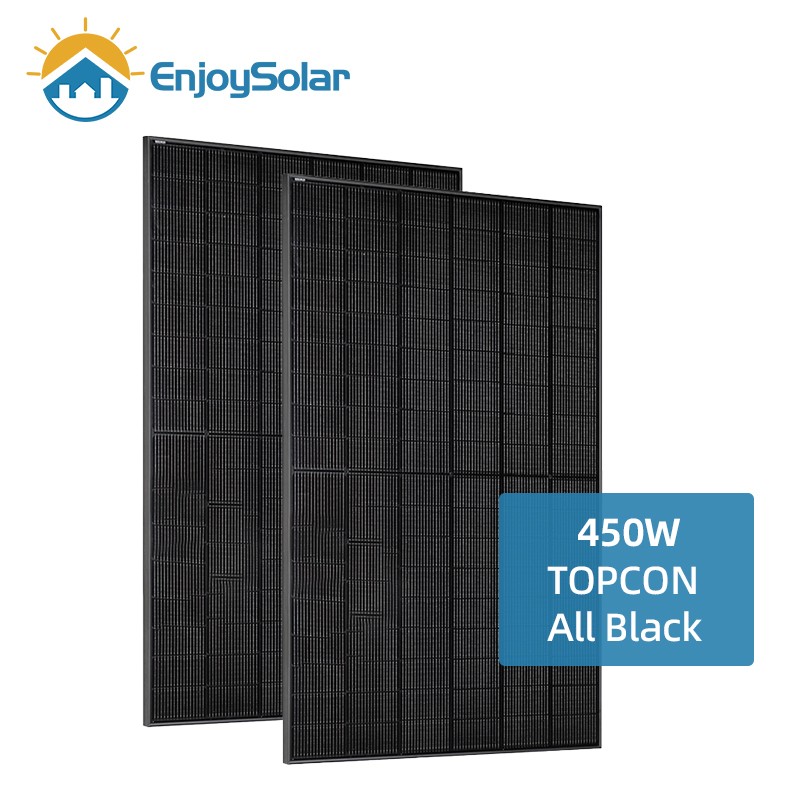

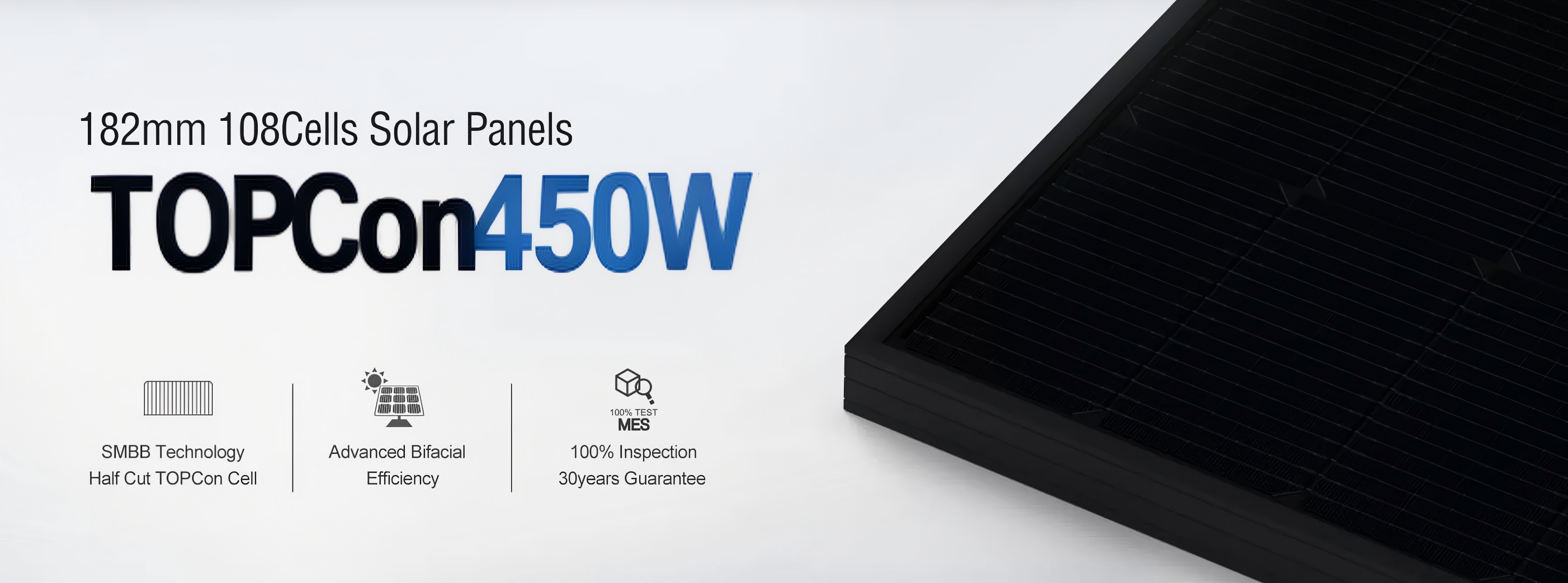

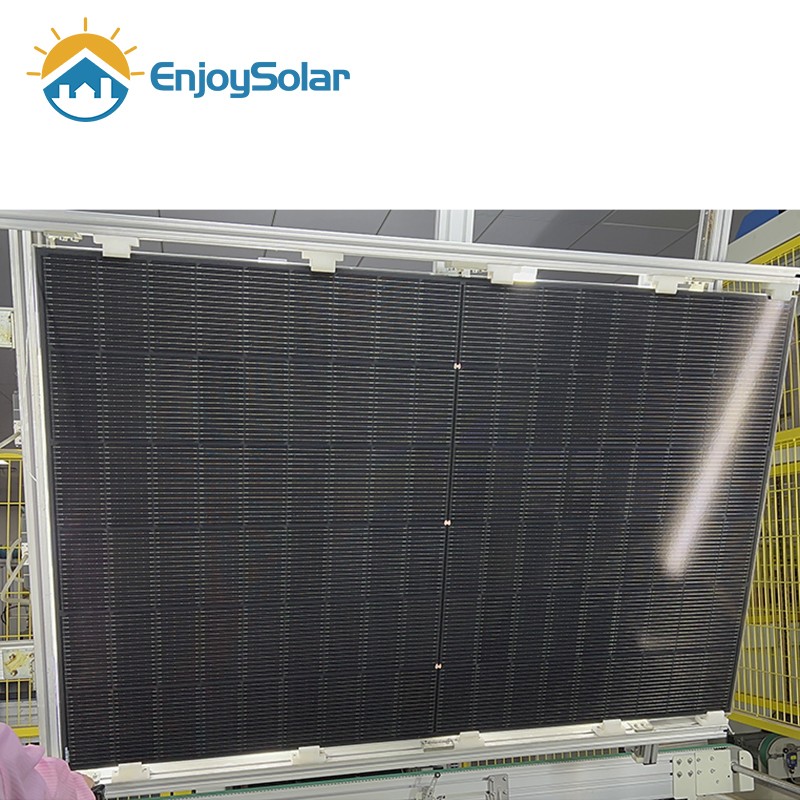

Enjoy Solar N type Topcon Solar cells full black Solar Panel 430W 440W 450w for Residential Solar System

Enjoy Solar N type Topcon Solar cells full black Solar Panel 430W 440W 450w for Residential Solar System

Category： Solar Panel
Solar cell : N-Type Topcon
Number of cells : 108 (6*18)
Size : 1722*1134*30mm
Certificate : IEC/ CE / TUV
Product description：430w solar panel, 440w solar panel, 450w solar panel, full black solar panel, topcon solar panel
INQUIRY EMAIL

Product Description

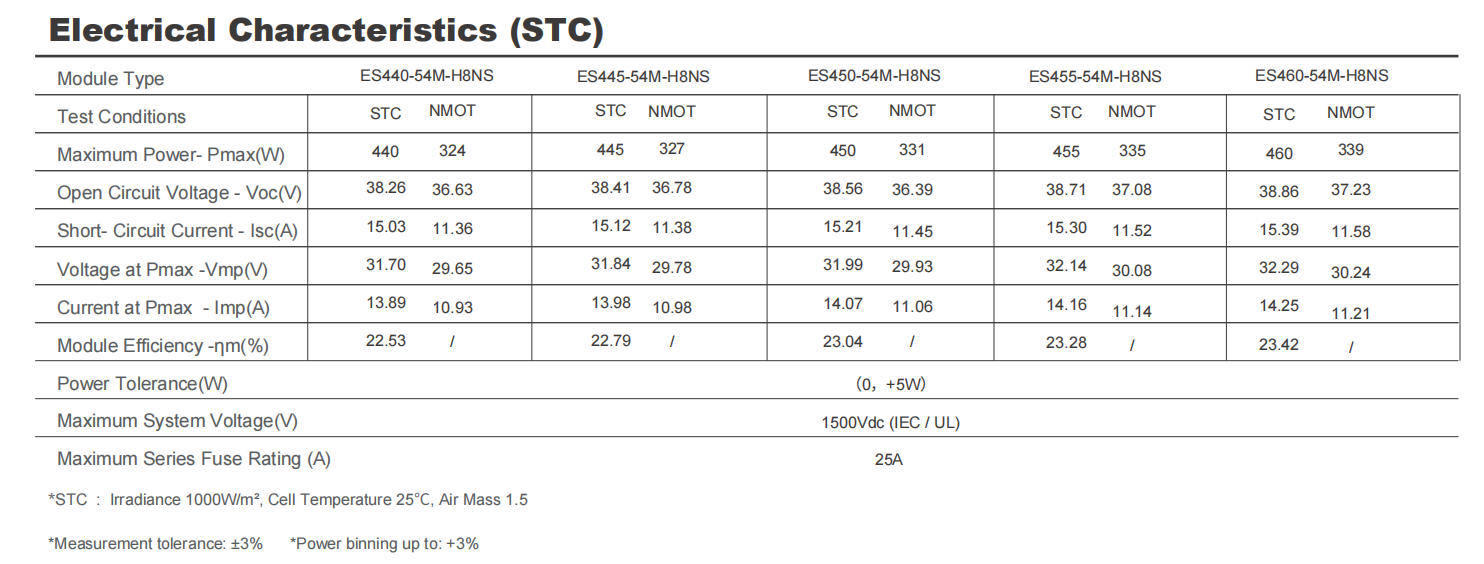

Electrical Characteristics (STC)
Module Type	ES440-54M-H8NS		ES450-54M-H8NS		ES460-54M-H8NS
Test Cpnditions	STC	NMOT	STC	NMOT	STC	NMOT
Maximum Power - Pmax(W)	440	324	450	331	460	339
Open Circuit Voltage - Voc(V)	38.26	36.63	38.56	36.93	38.86	37.23
Short Circuit Current - Isc(A)	15.03	11.36	15.21	11.45	15.39	11.58
Voltage at Pmax - Vmp(V)	31.70	29.65	31.99	29.93	32.29	30.24
Current at Pmax - Imp(A)	13.89	10.93	14.07	11.06	14.25	11.21
Module Efficiency - nm(%)	22.53	/	23.04	/	23.42	/
Power Tolerance(W)	(0, +5W)
Maximum System Voltage(V)	1500Vdc(IEC, UL)
Maximum Series Fuse Rating(A)	25A
*STC: Irradiance 1000W/m², Cell Temperature 25℃， Air Mass 1.5
Measurement tolerance: ±3% Power binning up to: +3%

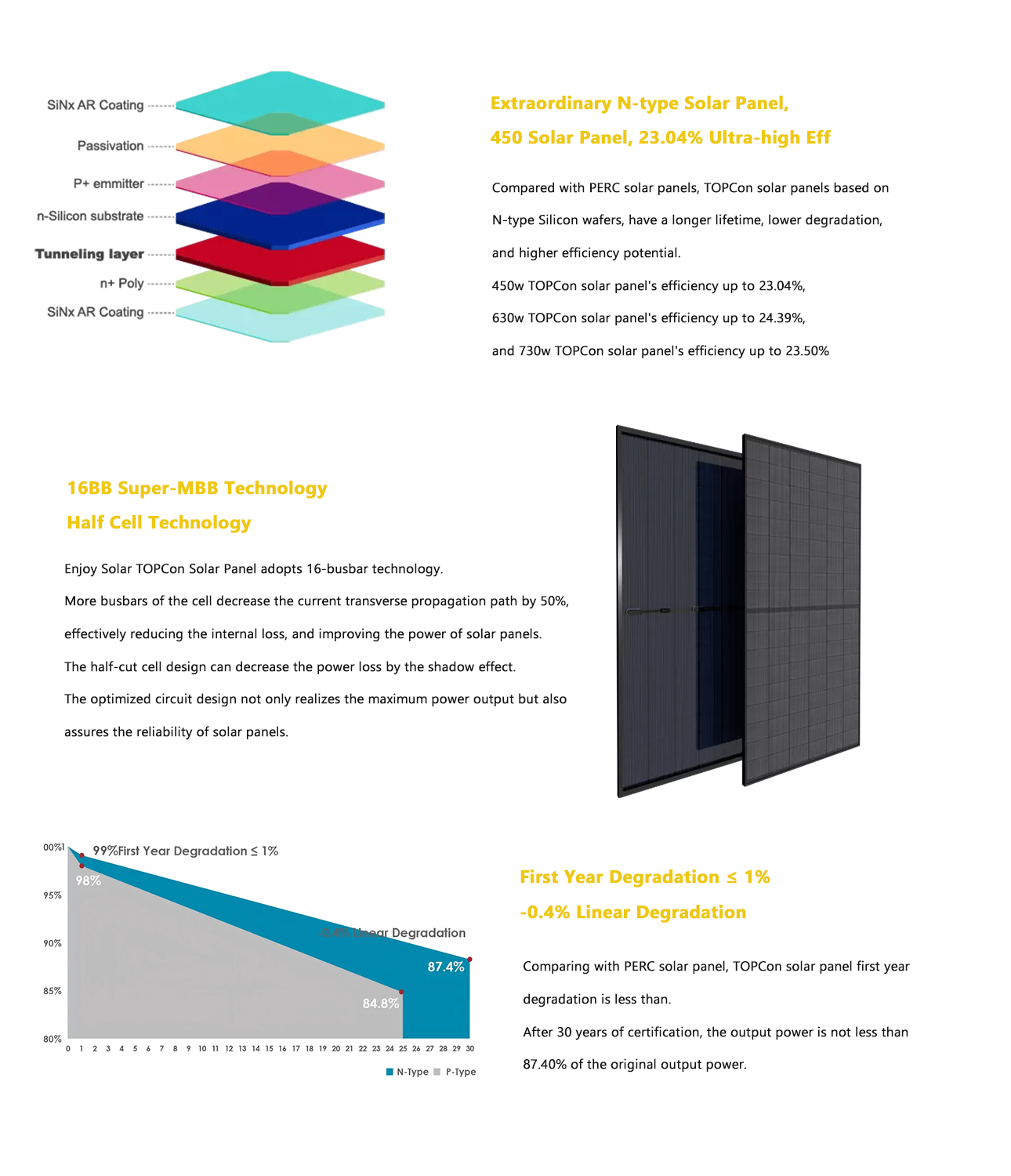

Topcon Technology

Extraordinary N-type Solar Panel, 450 Solar Panel, 23.04% Ultra-high Eff

Compared with PERC solar panels, TOPCon solar panels based on N-type Silicon wafers, have a longer lifetime, lower degradation, and higher efficiency potential.

450w TOPCon solar panel's efficiency up to 23.04%,

630w TOPCon solar panel's efficiency up to 24.39%,

and 730w TOPCon solar panel's efficiency up to 23.50%

16BB Super-MBB Technology

Half Cell Technology

Enjoy Solar TOPCon Solar Panel adopts 16-busbar technology.

More busbars of the cell decrease the current transverse propagation path by 50%, effectively reducing the internal loss, and improving the power of solar panels.

The half-cut cell design can decrease the power loss by the shadow effect.

The optimized circuit design not only realizes the maximum power output but also assures the reliability of solar panels.

First Year Degradation ≤ 1%
-0.4% Linear Degradation

Comparing with PERC solar panel, TOPCon solar panel first year degradation is less than.

After 30 years of certification, the output power is not less than 87.40% of the original output power.

-0.30%/℃ Optimized Temp Coeff

Excellent weak light performance

Enjoy Solar TOPCon solar panel has Excellent weak light performance.

When under cloudy, haze condition, weak light performance help gets more production.

The temperature coefficient of the PERC solar panel is -0.35%/℃, TOPCon solar panel is -0.30%/℃.

A temperature coefficient rating of -0.30%/℃, supports TOPCon solar panels to generate up to 2% more power than PERC solar panels at high temperatures.
