Enjoy Solar 100KW 300KW 500KW 800KW 1MW Grid Tied Three Phase Solar Power System

Category： Grid-tied Solar System
System Power : 100KW, 300KW, 500KW, 800KW, 1MW
Output Voltage(V) : 230V/400V or 277/480V
Output Frequency : 50Hz/60Hz
Inverter Type; String MPPT inverter or Central Inverter
Product description：grid tied solar system, 100kw solar system, solar panel system, on grid solar system, solar array system, 500kw solar system
INQUIRY EMAIL

System Configurations

System Power	Remarks	100KW	300KW	500KW	800KW	1MW

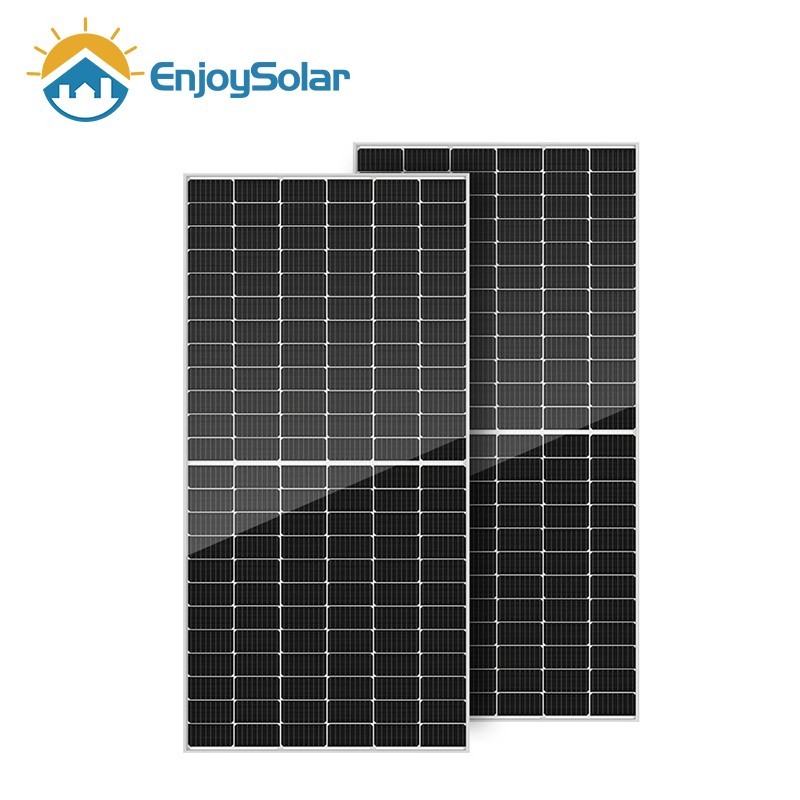

Solar Panel	EnjoySolar/LonGi/other Brand	620WP*168PCS	620WP*504PCS	620WP*840PCS	620WP*1344PCS	620WP*1680PCS
PV Combiner Box	1000Vdc/1500Vdc Built in with Breaker and SPD	14 INPUTS & 14 OUTPUTS * 1PC	14 INPUTS & 14 OUTPUTS * 3PCS	14 INPUTS & 14 OUTPUTS *5PCS	14 INPUTS & 14 OUTPUTS * 8PCS	14 INPUTS & 14 OUTPUTS * 10PCS

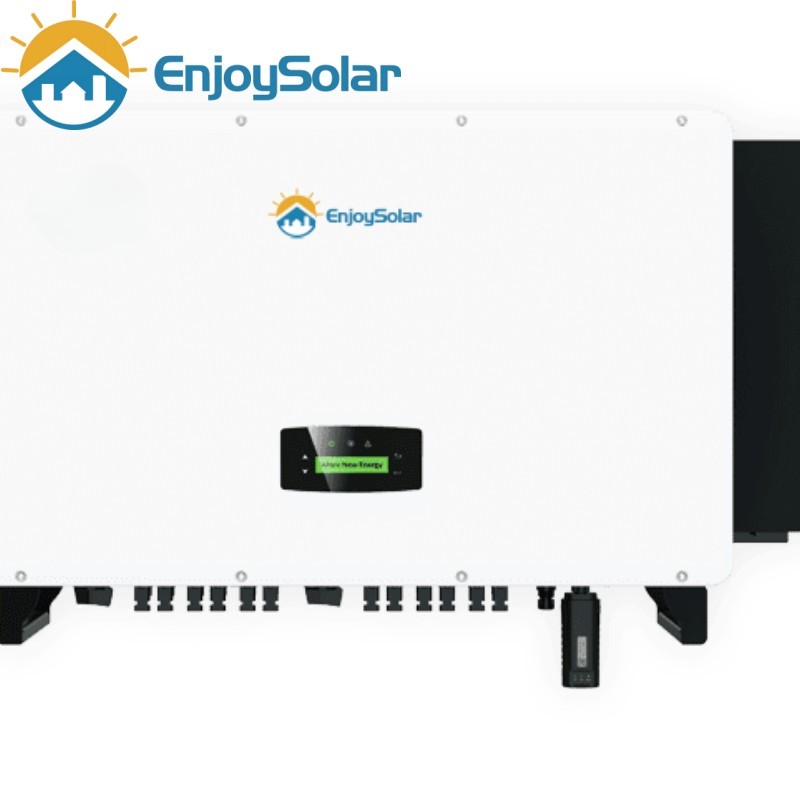

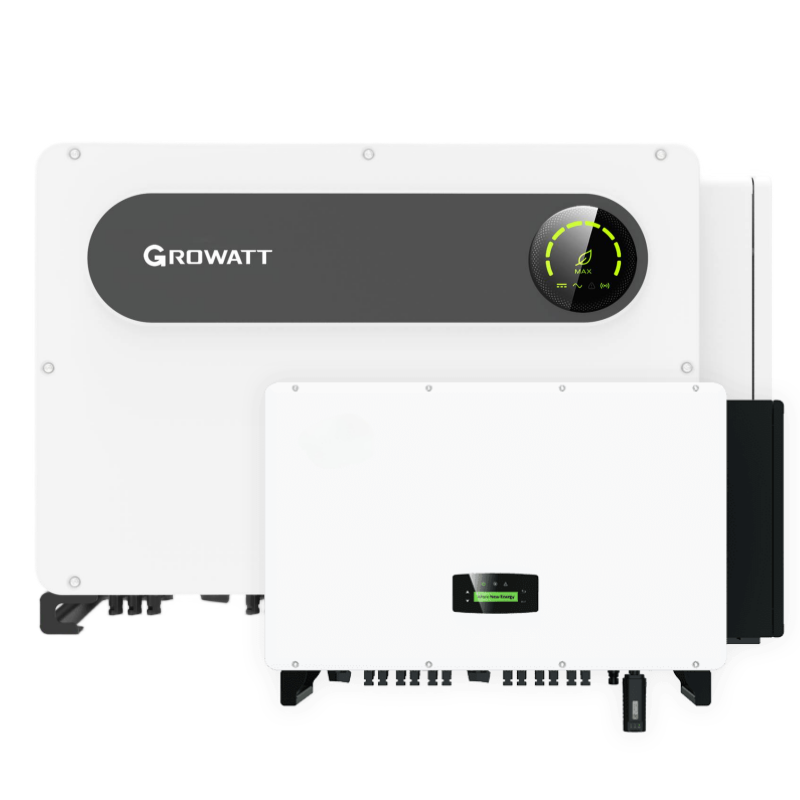

On Grid Inverter	Growatt/SOLIS/AFORE 230V/400V or 277V/480V	100KW * 10PCS	100KW * 20PCS	100KW * 30PCS	100KW * 40PCS	100KW * 10PCS
PV Connector	MC4 Compatible	3000 pairs	6000 pairs	9000 pairs	12000 pairs	3000 pairs

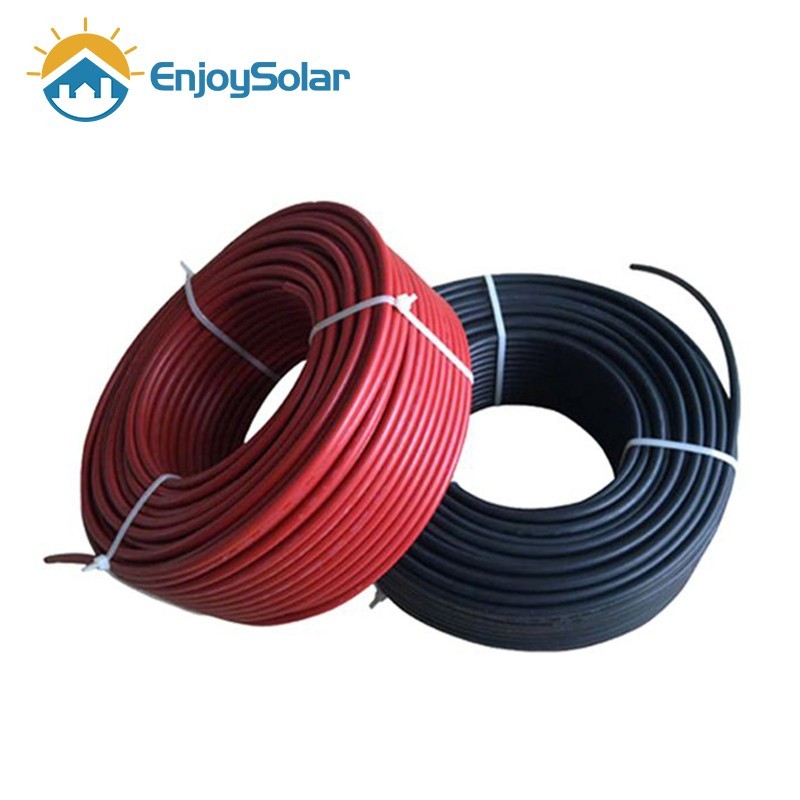

PV Cable	PV1-F/H1Z2Z2-K 1*4/6mm2	2000 mtr red 2000 mtr blk	6000 mtr red 6000 mtr blk	10000 mtr red 10000 mtr blk	16000 mtr red 16000 mtr blk	20000 mtr red 20000 mtr blk
Remote Monitoring	WIFI	1	1	1	1	1
PV Mounting Structure	Aluminum/ Steel	Customized	Customized	Customized	Customized	Customized
