Enjoy Solar 5Kwh 10Kwh Lithium ion battery 51.2V 100Ah 200Ah Lifepo4 solar storage battery
- Category： Lithium Battery
- Battery Type: Low Voltage
- Expandable: upto 16 units
- Installation: Wall mounted
- Certificate : US38.3, MSDS, CE
- Product description：lithium ion battery, 5kwh battery, 10kwh battery LV battery, Residential Battery, 51.2V100Ah, 51.2V200Ah
Product Description

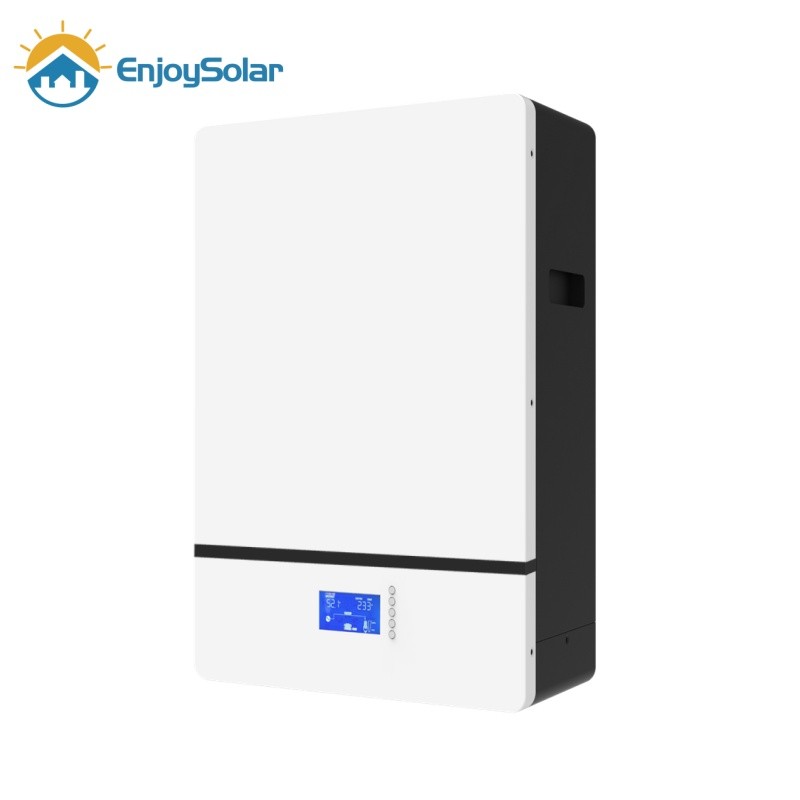

Wall Mounted Lithium Battery Pack
5Kwh /10Kwh Energy Storage Capacity
Product features:
• Core Technology: High-performance LiFePO₄ cells for superior consistency, safety, and long life.
• Scalable Design: Expandable capacity by paralleling up to 15 units to meet varied power demands.
• Flexible Installation: Includes wall-mounting accessories on the back for easy, space-saving setup.
• Communication Interfaces: Standard CAN, RS485, and dry contact ports, plus a built-in Bluetooth module for wireless access.
• Global Compatibility: Certified for seamless integration with leading inverters worldwide, including Lux Power, Voltronic, SMA, Goodwe, Growatt, Deye, and others.
Product Parameter
|
Product Model |
ES51100LW |
ES51200LW |
|
Specification |
51.2V100Ah |
51.2V200Ah |
|
Rated Energy Storage Capacity |
5.12Kwh |
10.24Kwh |
|
Operation Voltage Range |
40-58.4V |
|
|
Standard Charge and Discharge Current |
50A |
|
|
Maximum Continuous Charge and Discharge Current |
100A |
|
|
Cycle Life |
≥6000 cycles (70% ) |
|
|
Net Weight |
43kg (excluding mounting accessories) |
83kg (excluding mounting accessories) |
|
Net Dimensions(W*D*H) |
550*360*140 mm (excluding mounting accessories) |
780*480*150 mm (excluding mounting accessories) |
|
Packaging Weight |
60Kg |
104Kg |
|
Packaging Dimensions(W*D*H) |
670*410*300 mm |
830*530*360 mm |
|
Operating Temperature |
Charging: 0~55℃ ; Discharging: -20~60℃ ; Storage: -10~45℃ |
|
|
Indicator Light Status |
Operation / Alarm /SOC |
|
|
Communication Method |
RS485, CAN, dry contact |
|
|
Installation Method |
Wall-mounted |
|
|
Certification |
MSDS/UN38.3/IEC/ Transport Identification Report |
|
|
Number of Parallel Connections |
1~15 units |
|

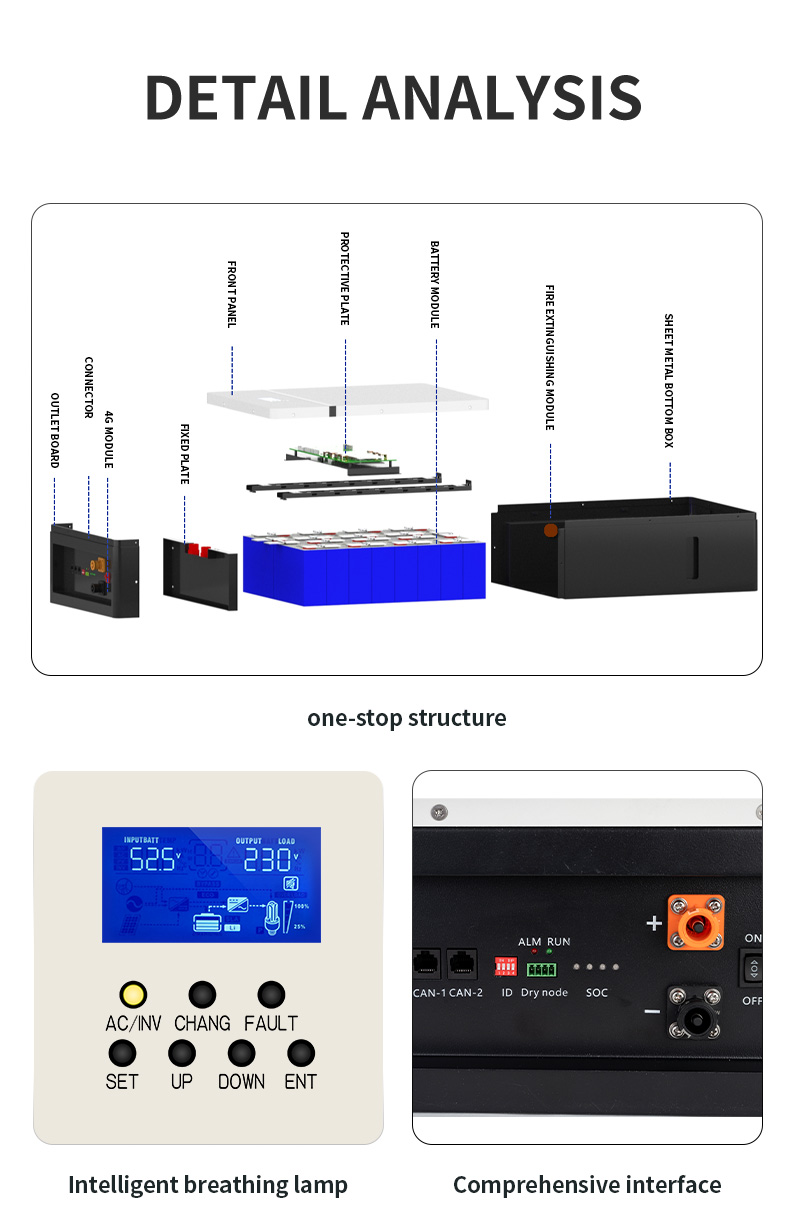

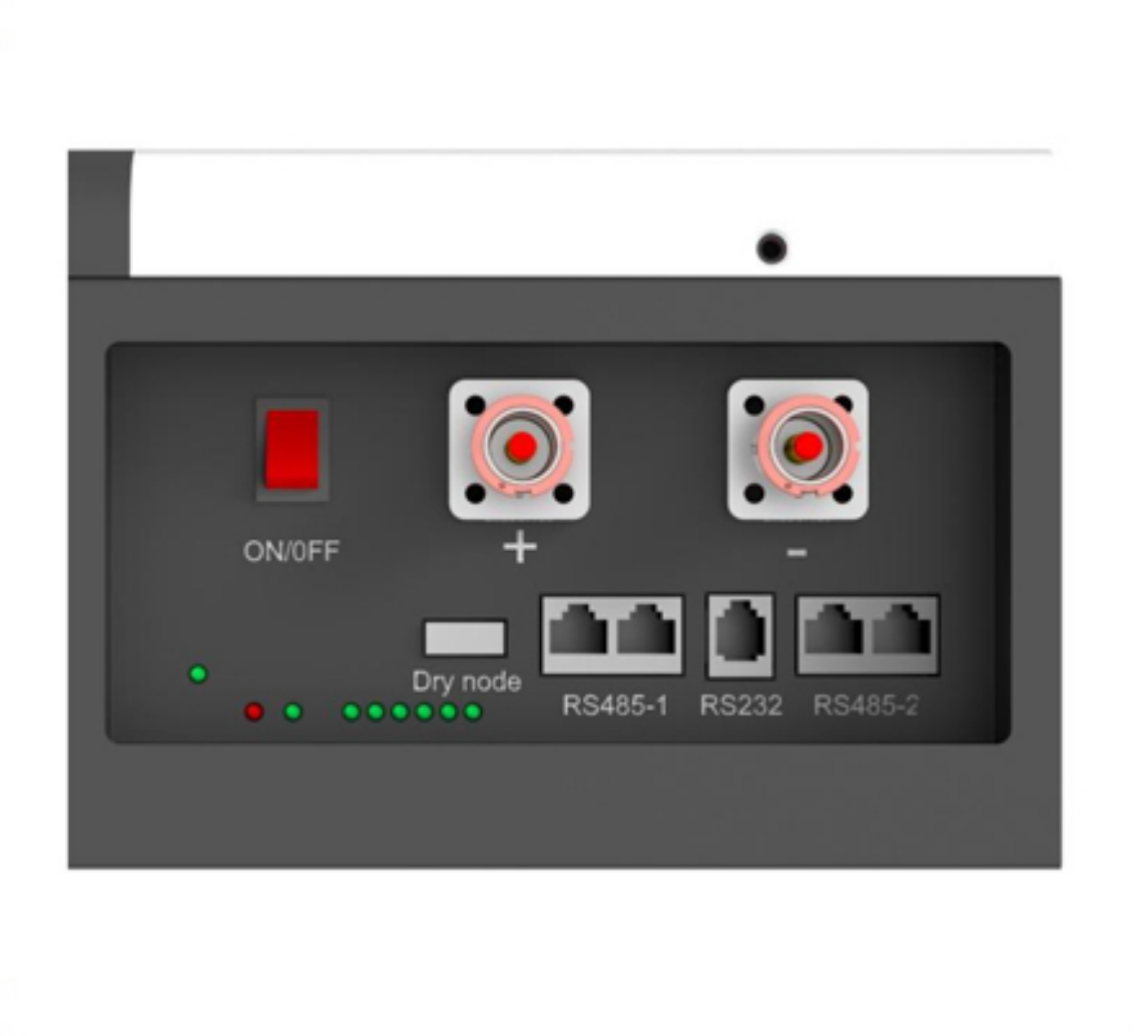

Battery Details Analysis

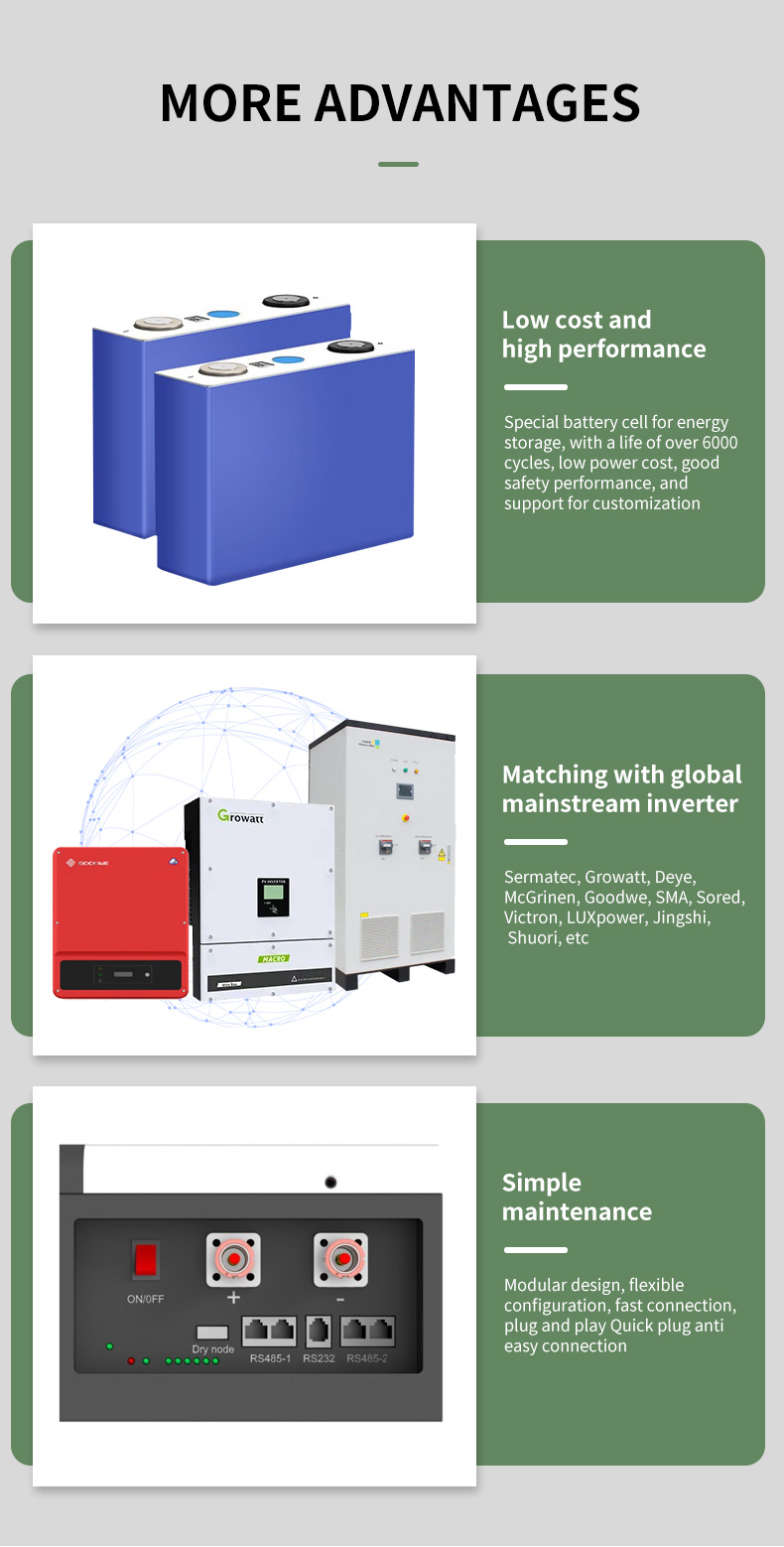

More Advantages
Low Cost and High Performance
Special battery cell for energy storage with a life of over 6000 cycles, low power cost, good safety performance, and support for customization.
Matching with global mainstream inverter
Sermatec, Growatt, Deye, Magarevo, Solis, Goodwe, SMA, Victron, LUXpower, SNRE, etc
Simple maintenance
Modular design, flexible configuration, fast connection, plug and play

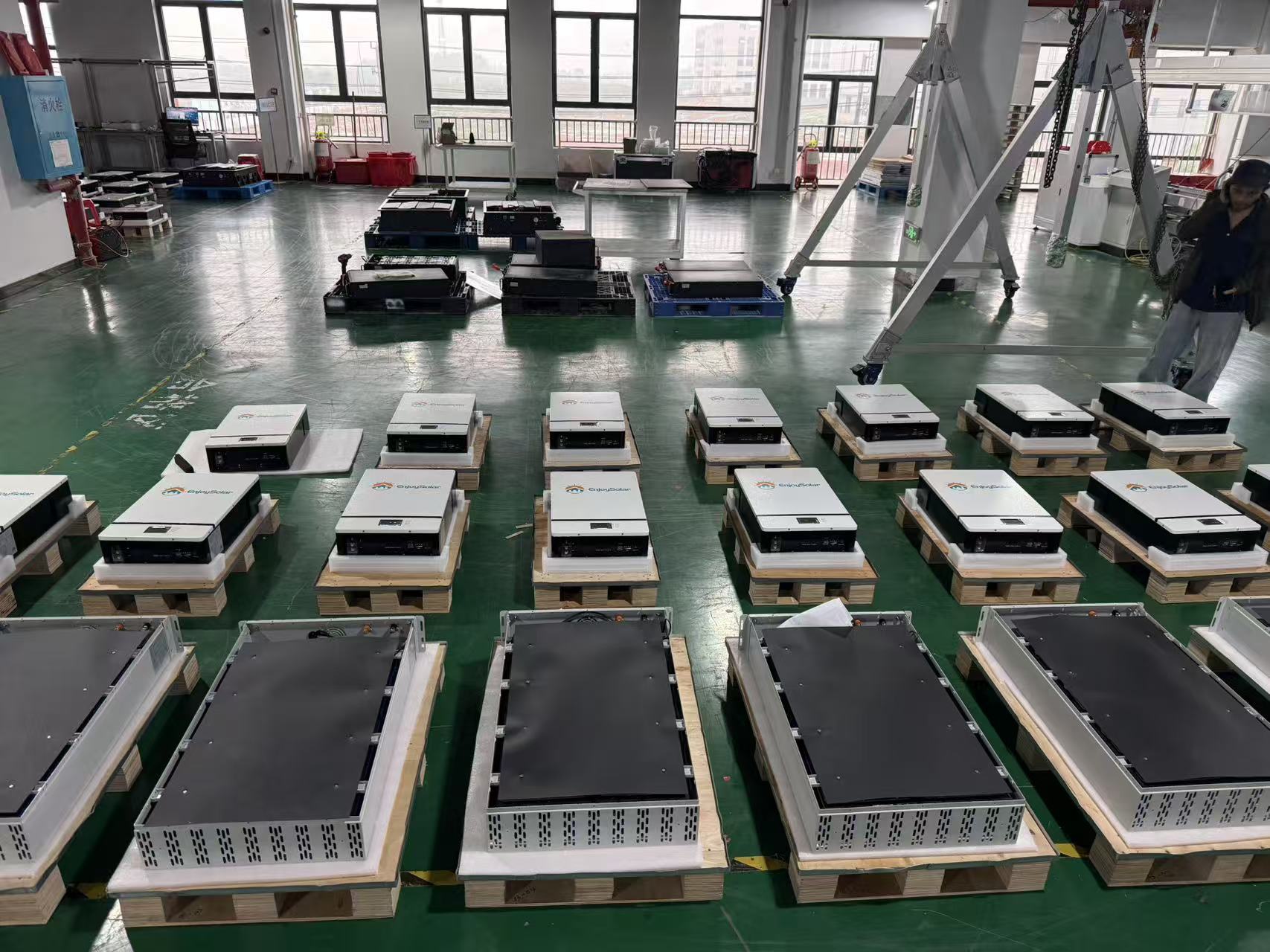

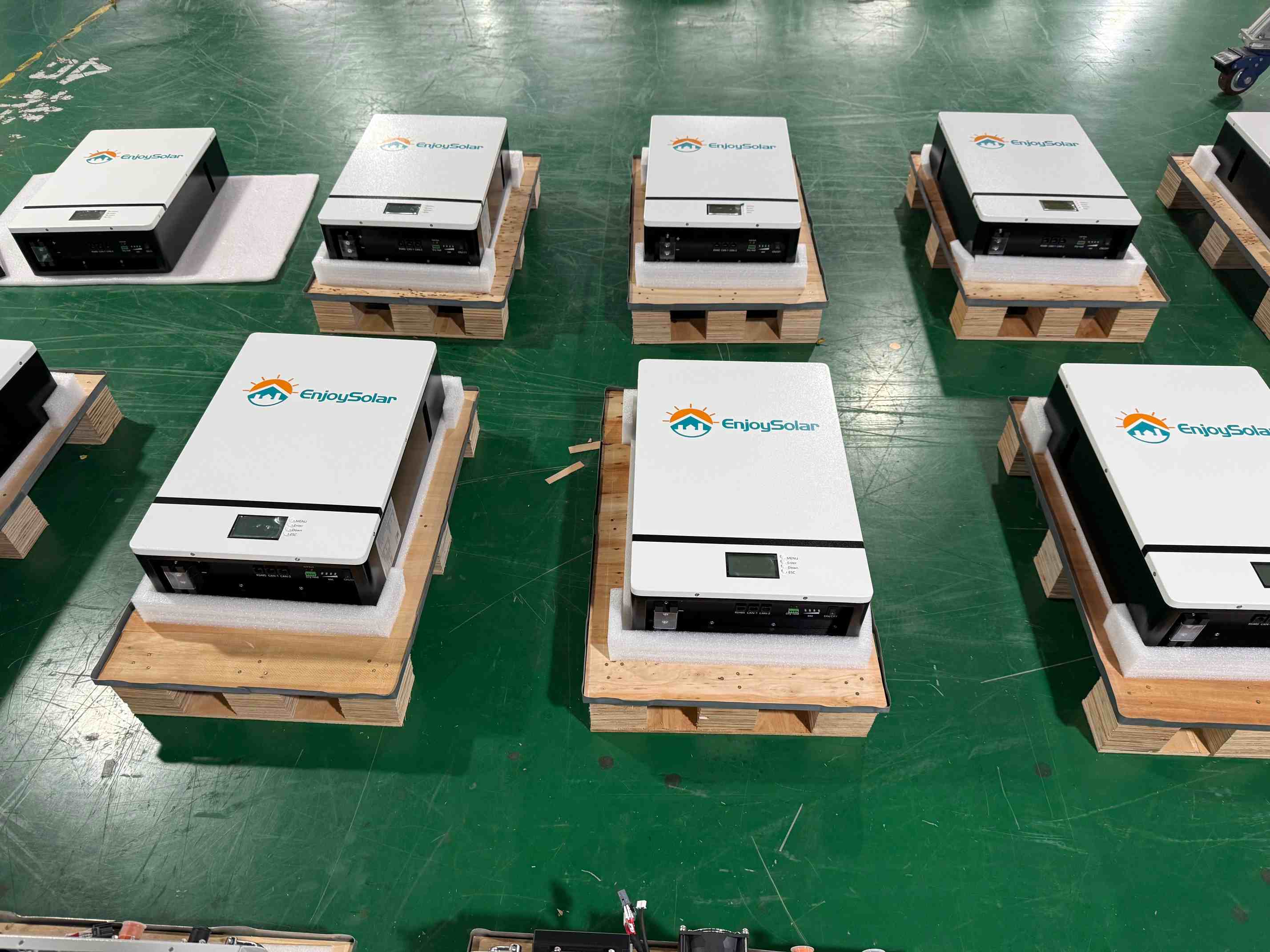

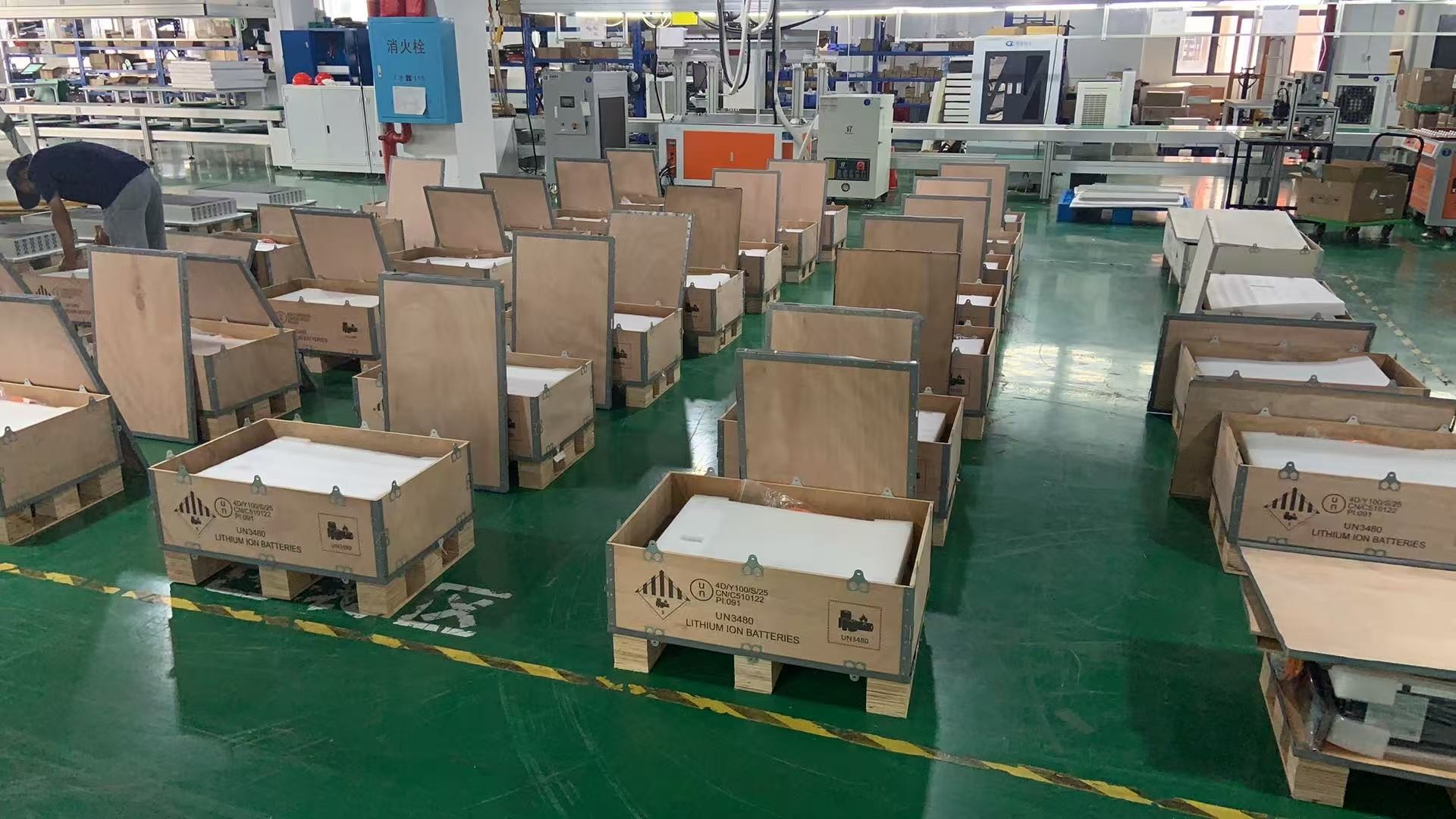

Package and delivery
