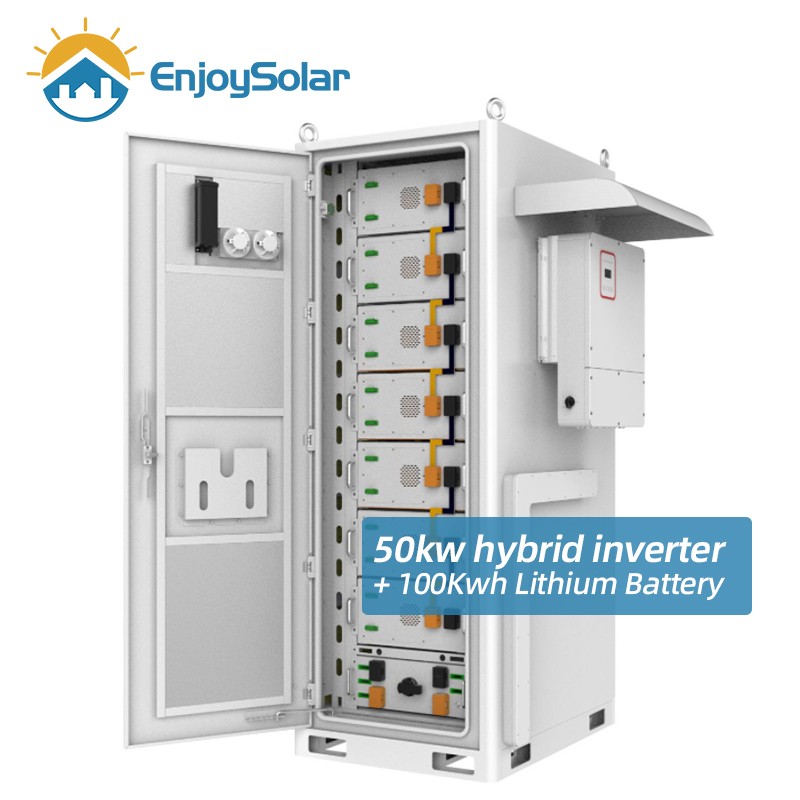

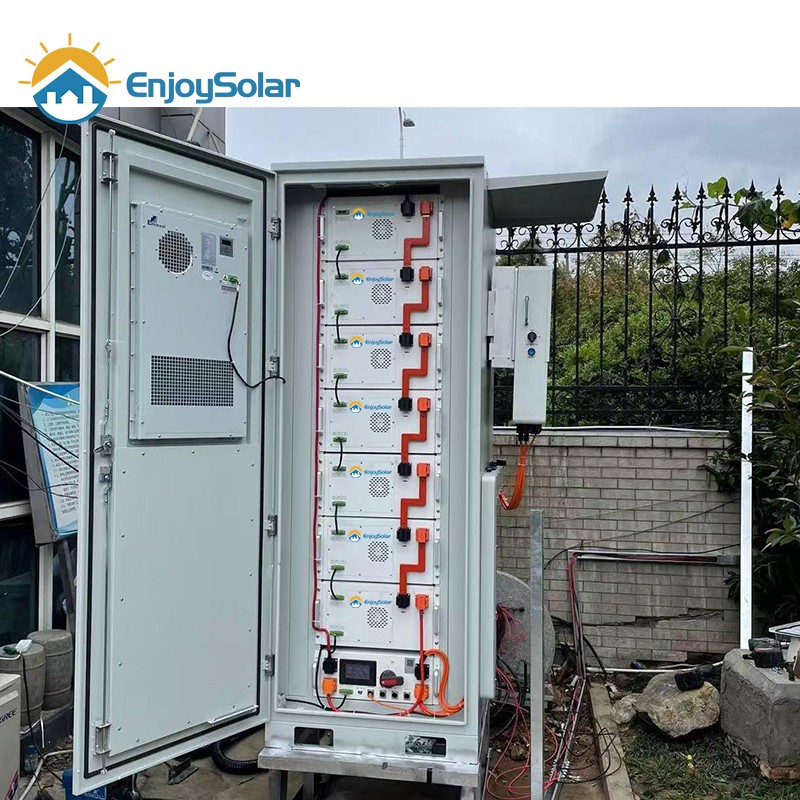

100kwh All In One Outdoor Lithium Ion Battery Cabinet

100kwh All In One Outdoor Lithium Ion Battery Cabinet

Category： Outdoor BESS Cabinet & Container
Capacity: 100kwh
Cooling Method: Air Cooling/ Liquid Cooling (Optional)
Design Life: > 6000 times, 10 years+
Protection Class: IP55
Product description：Storage Cabinet, All in one bess Cabinet, Outdoor Cabinet, battery Cabinet, 100kwh cabinet, Lithium battery cabinet, air conditioning cabinet
INQUIRY EMAIL

200Kwh outdoor BESS Cabinet

with 50Kw Hybrid Inverter

Ultimate Safety: Cobalt-free LFP chemistry combined with a full-protection Intelligent BMS.

Built Reliable: High-power discharge, IP55 protection, natural cooling, wide temperature range (-20ºC to 55ºC).

Grow As You Go: Modular design for easy expansion in homes or businesses.

Manage with Ease: Auto-networking, remote monitoring, and hassle-free USB firmware updates.

Outdoor BESS Cabinet Parameters

MODEL	ES-100K	ES-200K	ES-172K
Product	HV100K	HV200K	HV172K
Nominal Voltage	358.4V	716.8V	614.4V
Nominal Capacity	280AH	280AH	280AH
Cabinet Size(mm)	125012452175	162612452175	162612452175
Weight(kg)	1260KG	2200KG	200KG
Charge/discharge power MAX	140A	140A	140A
Cooling method	Air-cooled	Air-cooled	Air-cooled
Protection class	IP55	IP55	IP55
Type of firefighting	Aerosol	Aerosol	Aerosol
BATTERIE SPECIFICATIONS	PARAMETER	PARAMETER	PARAMETER
Battery Types	51.2V-280AH	51.2V-280AH	51.2V-280AH
Nominal Capacity (KWh)	100KWh	200KWh	172KWh
Recommend Charge/Discharge Current (A)	100	100	100
Max. Charge/Discharge Current(A)	140	140	140
Communicaiton	RS485/CAN	RS485/CAN	RS485/CAN
Working Temperature	0ºC~50ºC Charge -10ºC ~50ºC Discharge	0ºC~50ºC Charge -10ºC ~50ºC Discharge	0ºC~50ºC Charge -10ºC ~50ºC Discharge
Transport or Storage Temperature Range	-20ºC~60ºC	-20ºC~60ºC	-20ºC~60ºC
Certification	CE/IEC/UL/UN38.3/MSDS	CE/IEC/UL/UN38.3/MSDS	CE/IEC/UL/UN38.3/MSDS
Design Life	10years+	10years+	10years+
Cycle Life	(0.5C/0.5C-80% D0D)>6000 times	(0.5C/0.5C-80% D0D)>6000 times	(0.5C/0.5C-80% D0D)>6000 times
Cooling method	Air-cooled	Air-cooled	Air-cooled
Certification	UN38.3/MSDS/ROHS	UN38.3/MSDS/ROHS	UN38.3/MSDS/ROHS
AC SPECIFICATIONS	PARAMETER	PARAMETER	PARAMETER
Rating	50KW	50KW/100KW	50KW/100KW
Overloaded	110%	110%	110%
Rated AC Voltage	400V	400V	400V
Rated frequency	50/60Hz	50/60Hz	50/60Hz
Communicaiton	Ethernet/Modbus/TCP/IP	Ethernet/Modbus/TCP/IP	Ethernet/Modbus/TCP/IP
Inverter Type	Deye/Solis/Megarevo/Other	Deye/Solis/Megarevo/Other	Deye/Solis/Megarevo/Other

Main Components

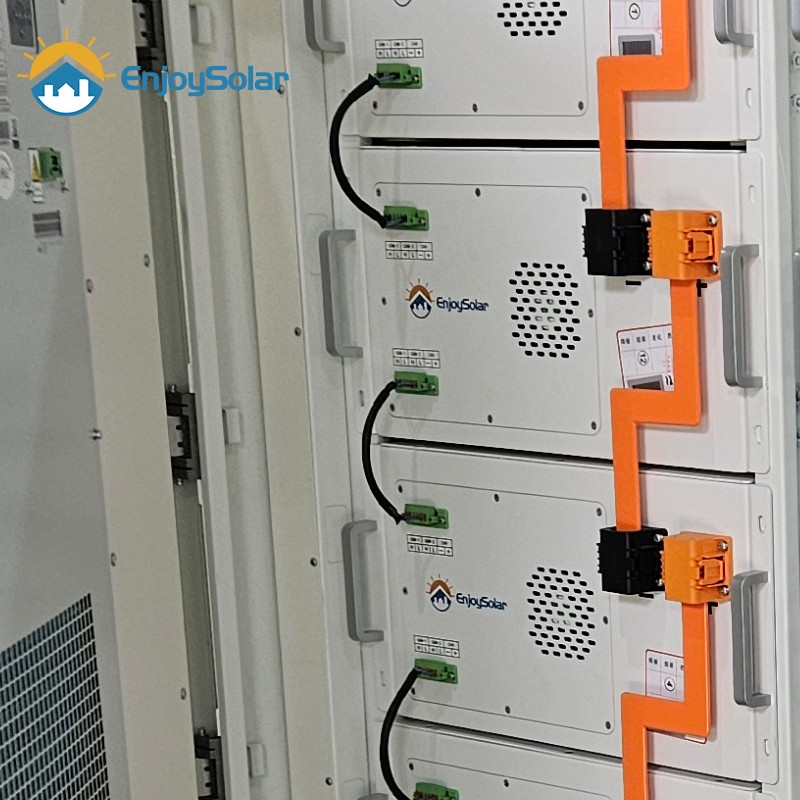

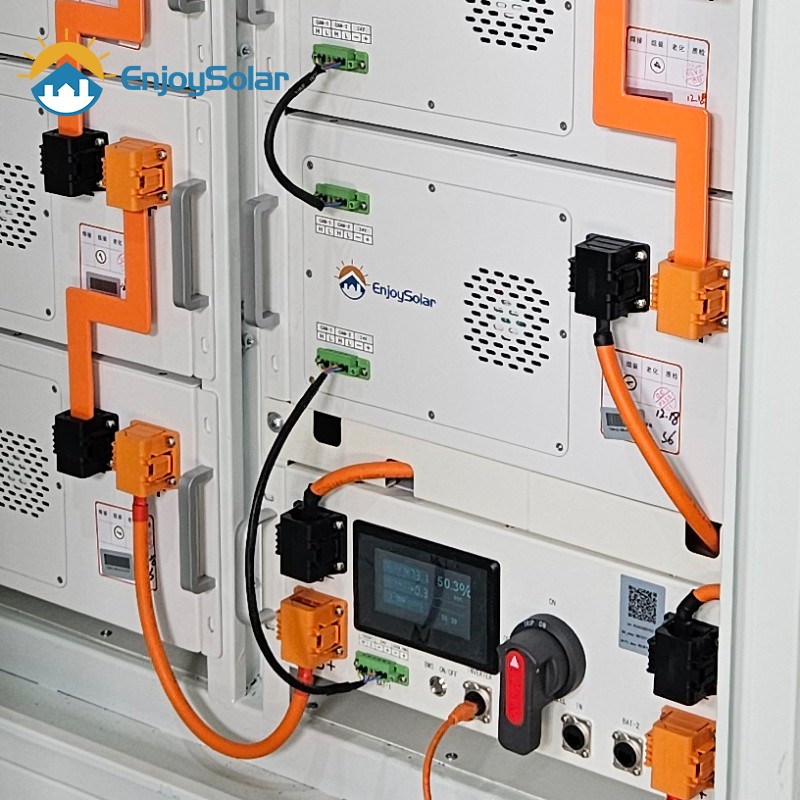

51.2V280Ah/314Ah HV Battery Pack

The Modular Battery Built to Last

• Compact & Standard: 19-inch rack, lightweight design
• High Density: 3.2V 280Ah/314Ah LFP cells
• Long Life: Over 10-year service lifespan
• Universal Fit: BMS compatible with major inverters

Deye 50Kw Hybrid Solar Power Inverter

Designed for advanced energy management and retrofit applications.

• 100% Unbalanced Output: Full independent control of each phase.
• AC Coupling: Easily integrates with existing solar PV systems.
• Massive Scalability: Up to 10 units in parallel for on-grid or off-grid use; supports multi-battery connection.
• High-Current Performance: 100A maximum charging and discharging current.
• Intelligent Scheduling: 6 customizable time periods for charge/discharge cycles.
• Fuel Flexibility: Can store energy from a diesel generator as a backup input.
