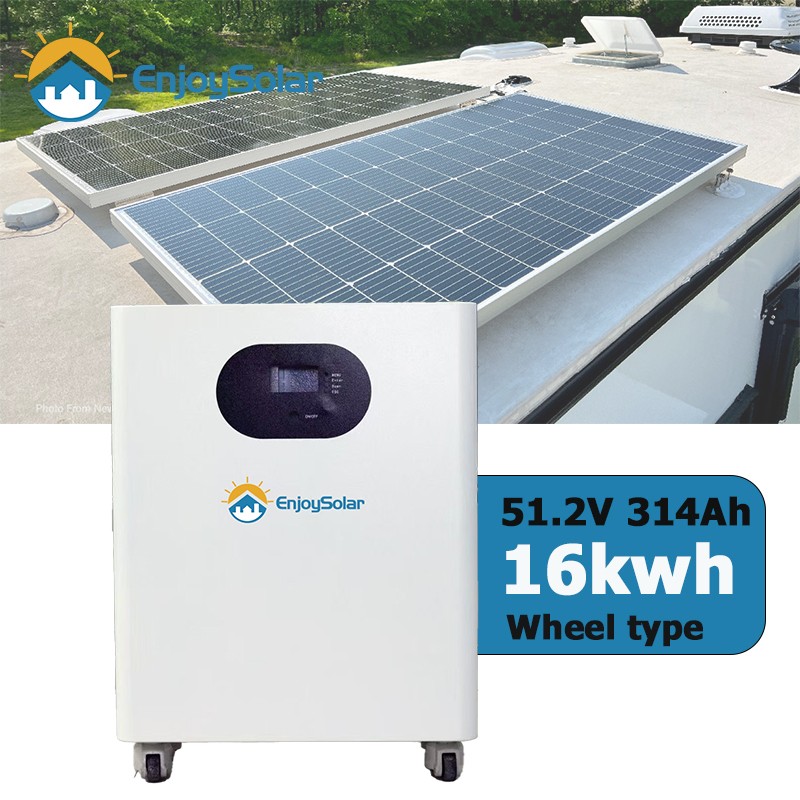

Low Voltage 51.2V 280Ah 300Ah 314Ah Lithium ion Cell 14.3kWh 15kWh 16kwh Solar Energy Storage Battery For Home

Category： Lithium Battery
Battery Type: Low Voltage
Capacity: 14kwh, 15kwh & 16kwh
Cell: Lifepo4 Battery
Certification & Safety Standard: CE/UN38.3/MSDS
Product description：51.2V battery, Lithium Ion Battery, Solar Battery, Energy Storage Battery, LFP Battery, LiFePO4 Battery, 15kwh battery, 16kwh battery
INQUIRY EMAIL

Product Description

ES-51280LW/ES-51314LW

Low Voltage Energy Storage Battery

Product features:

Ø Uses high consistency, safe and reliable, long-life lithium iron phosphate battery cells;

Ø Flexible capacity expansion as needed: supports parallel connection of 15 units to meet different power requirements;

Ø The product has 4 pulleys at the bottom, occupies a small footprint, is movable, and easy to install;

Ø Communication supports CAN, RS485, RS232, dry contact, and the product comes with a Bluetooth module;

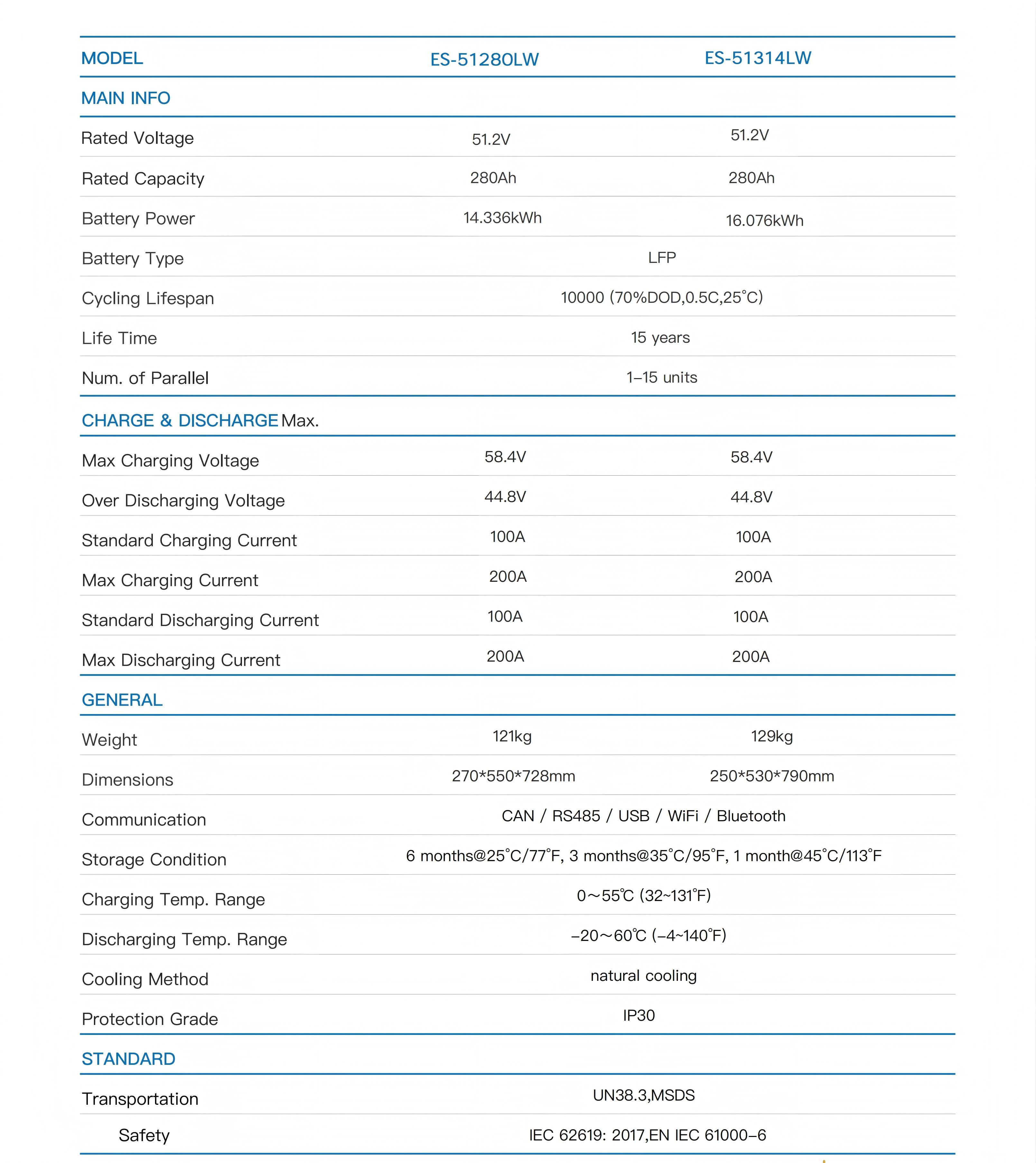

Product Parameter

Model	ES-51280LW	ES-51314LW
Rated voltage	51.2V	51.2V
Rated capacity	280AH	314AH
Battery power	14.336KWh	16.076KWh
Type	LFP
Number of cycles	6000 times（80%DOD，0.5C，25°C）
Service life	10 Years
Maximum number of parallel connections	15 units
Charging and discharging parameters
Maximum charge voltage	58.4V	58.4V
Over discharge voltage	44.8V	44.8V
Maximum charging current	100A	100A
Peak charging current	200A	200A
Maximum discharge current	100A	100A
Peak discharge current	200A	200A
General
Gross weight	121kg	129kg
Package size（L×W×H）	270550728mm	790530250mm
Interface	CAN/RS485/WiFi/Bluetooth
Storage conditions	1 month-20℃~45℃
	3 month-20℃~35℃
	6 month-20℃~25℃
Charge Temperature	（0℃~60℃）
Discharget emperature	（-20℃~60℃）
Cooling method	Forcedaircooling
Installation method	Rack
protection grade	IP30
Standard
Sea transportation	MSDS,UN38.3
Safety regulations	CE，FCC，ROHS
