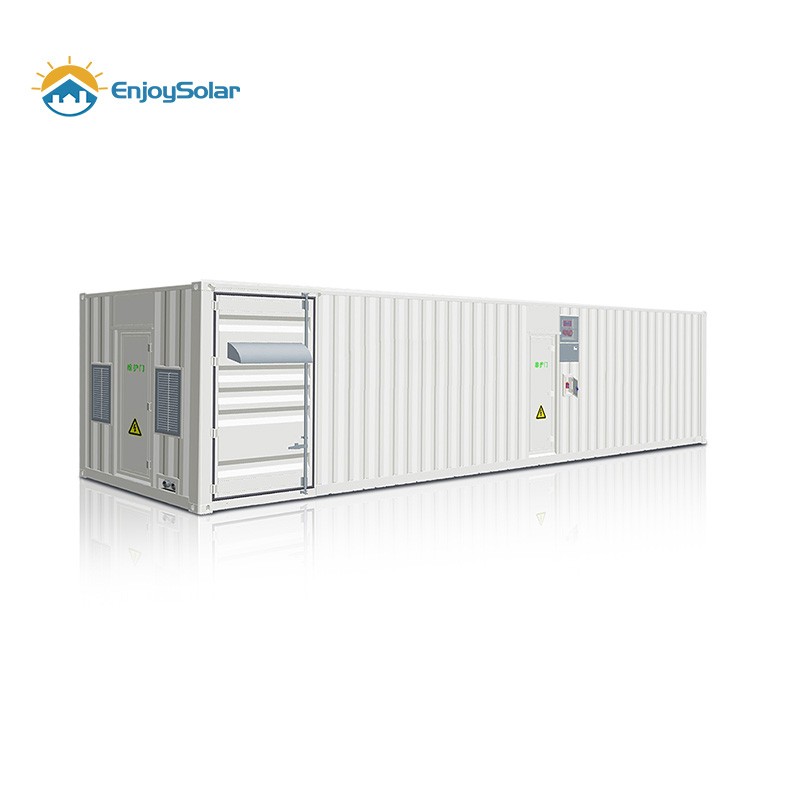

40FT Container BESS 500KW 1MW Power with 1MWH 2MWH 3MWH 4MWH Lithium Battery Energy Storage

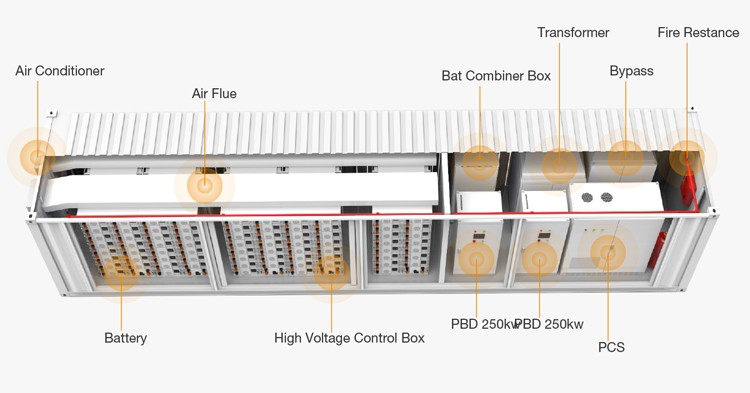

20FT/40FT System Configuration

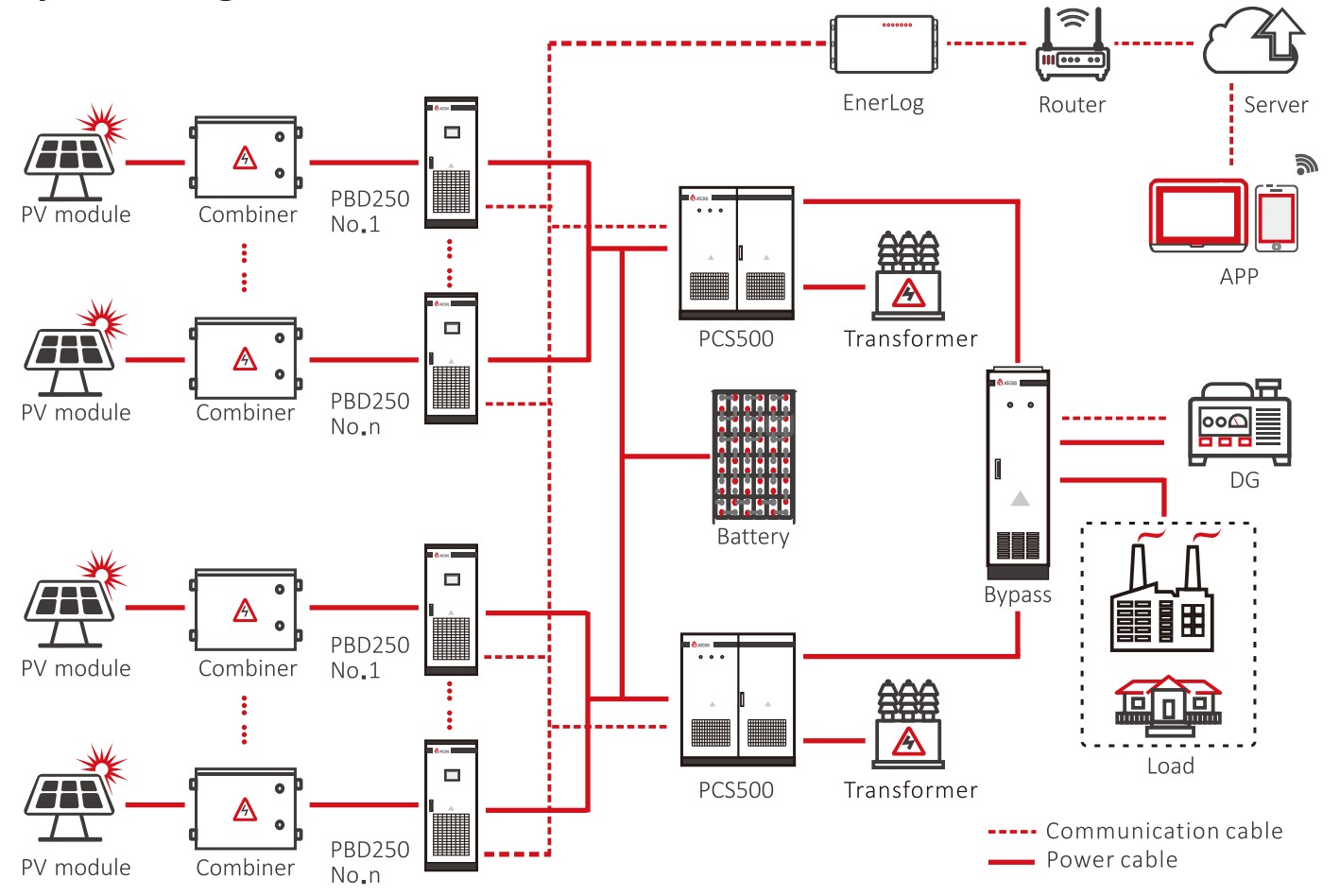

Solar System Diagram

System Technology

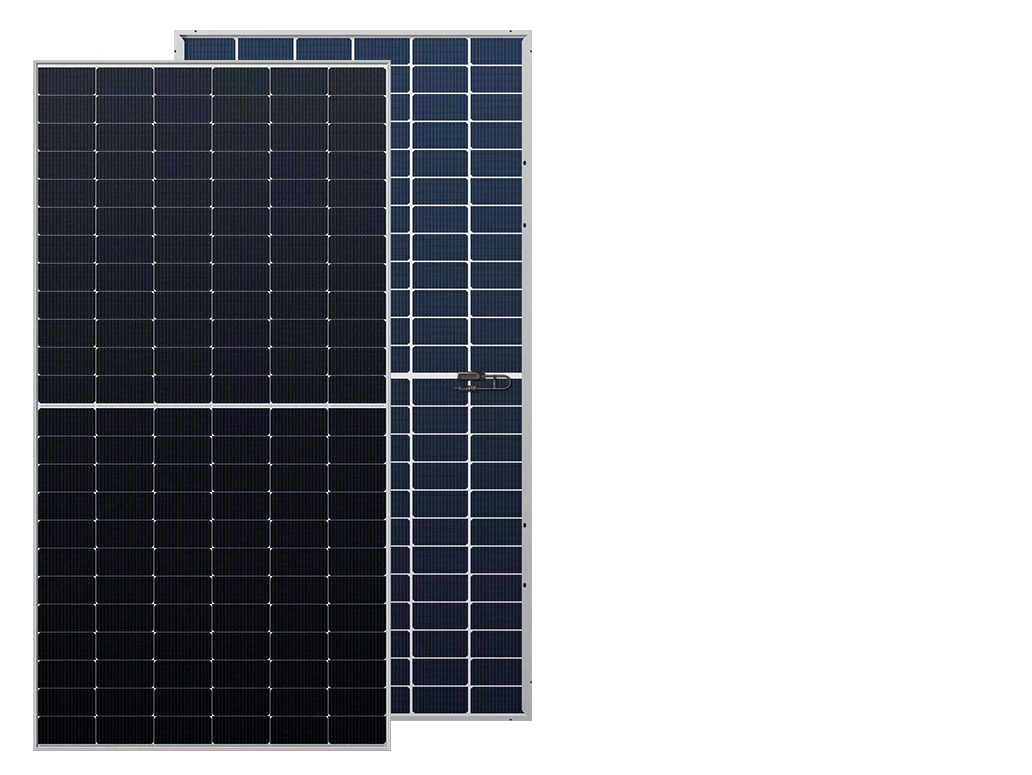

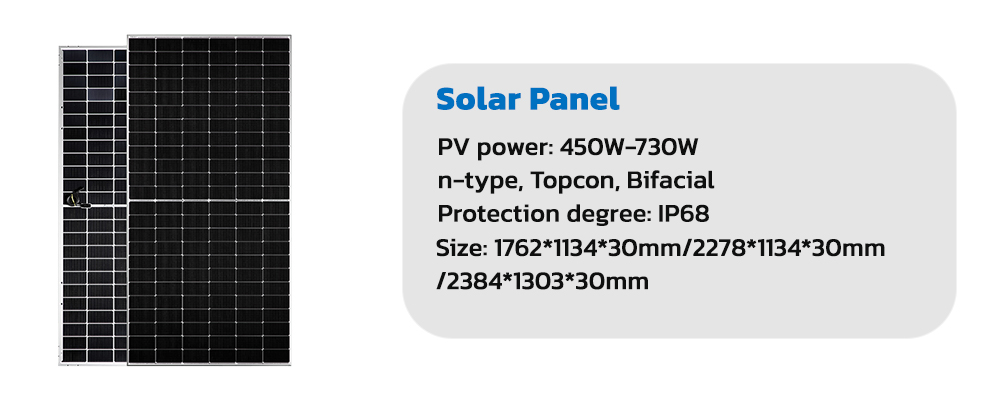

Solar Panel

Power Range: 430W-730W

Solar Cell: N-Type Topcon/HJT

Protection Level: IP68

Warranty: 30 Years

Features:

SMMB Technology

Higher Power

Lower Temperature Coefficient

Better Power Guarantee

Solar Charger Controller

Max. PV Power: 250KW

MPPT Voltage Range: 350V - 850V

Max. Input Current: 575A(115A*5)

Number of MPPT: 5

Out Voltage: 600V - 900V

Protection Degree: IP20

Features:

Multiple units parallelable

Modular design

Up to 5 MPPTs

Transformerless design

(SMC200 for optional)

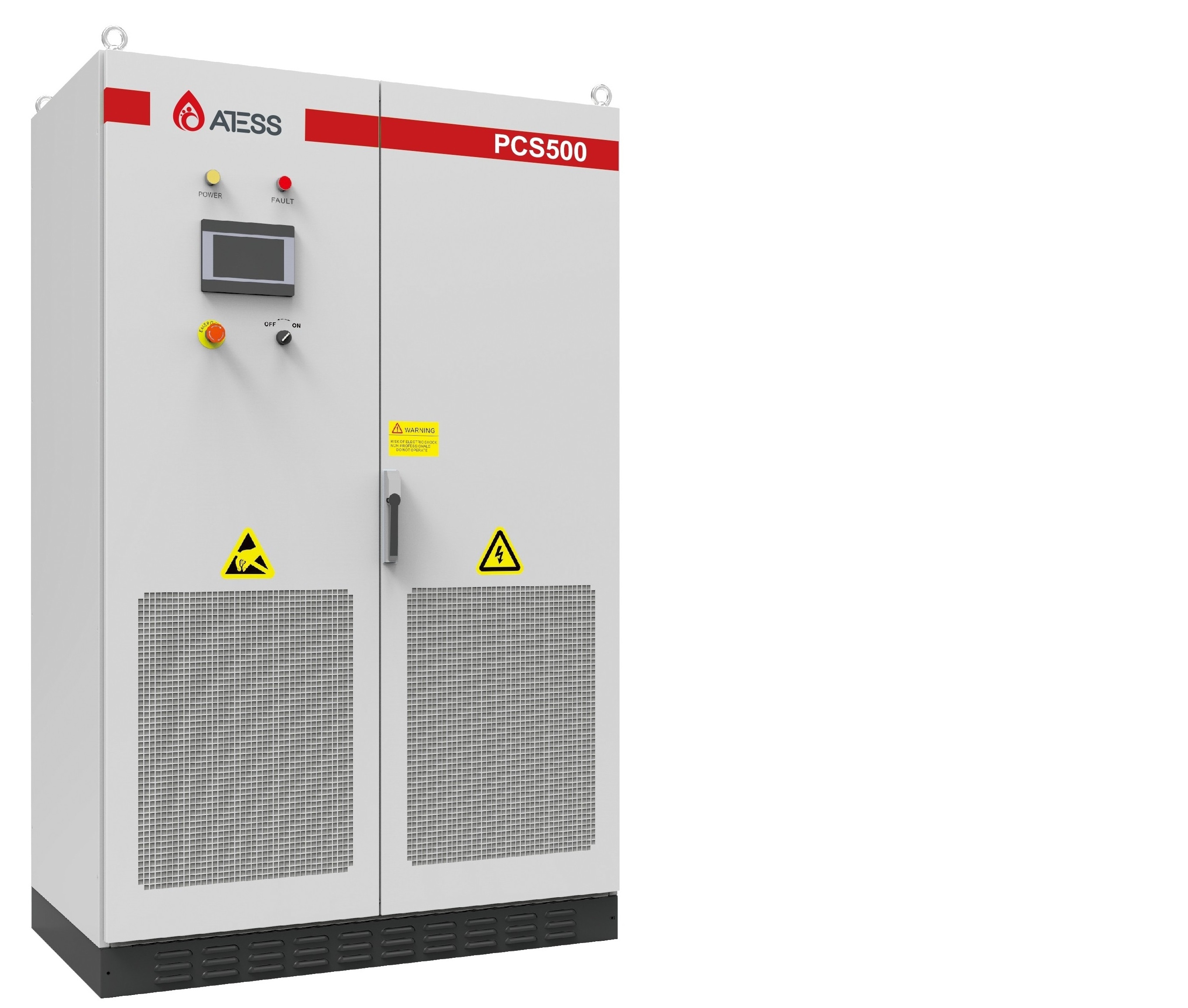

PCS 500KW

Rated Power: 500KW

AC Rated Voltage: 400V/480V/Customized

DC Voltage Range: 600V - 900V

Rated Frequency: 50Hz/60Hz

Protection Degree: IP20

Max. Efficiency: 99%

Transfer on/off grid: Manual(default);

Features:

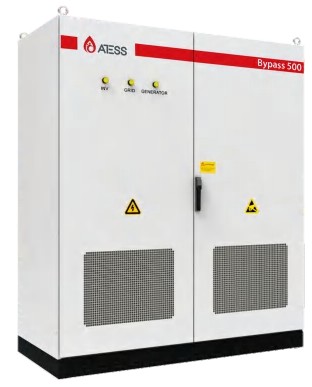

Bypass 500

Rated Power: 500KVA

Rated Voltage: 400V/ 480V/Customized

Rated Current: 722A

Rated Frequency: 50Hz/60Hz

Transfer between on/off grid: 10ms

Protection Degree: IP20

Features:

Flexible management

DG connection supported

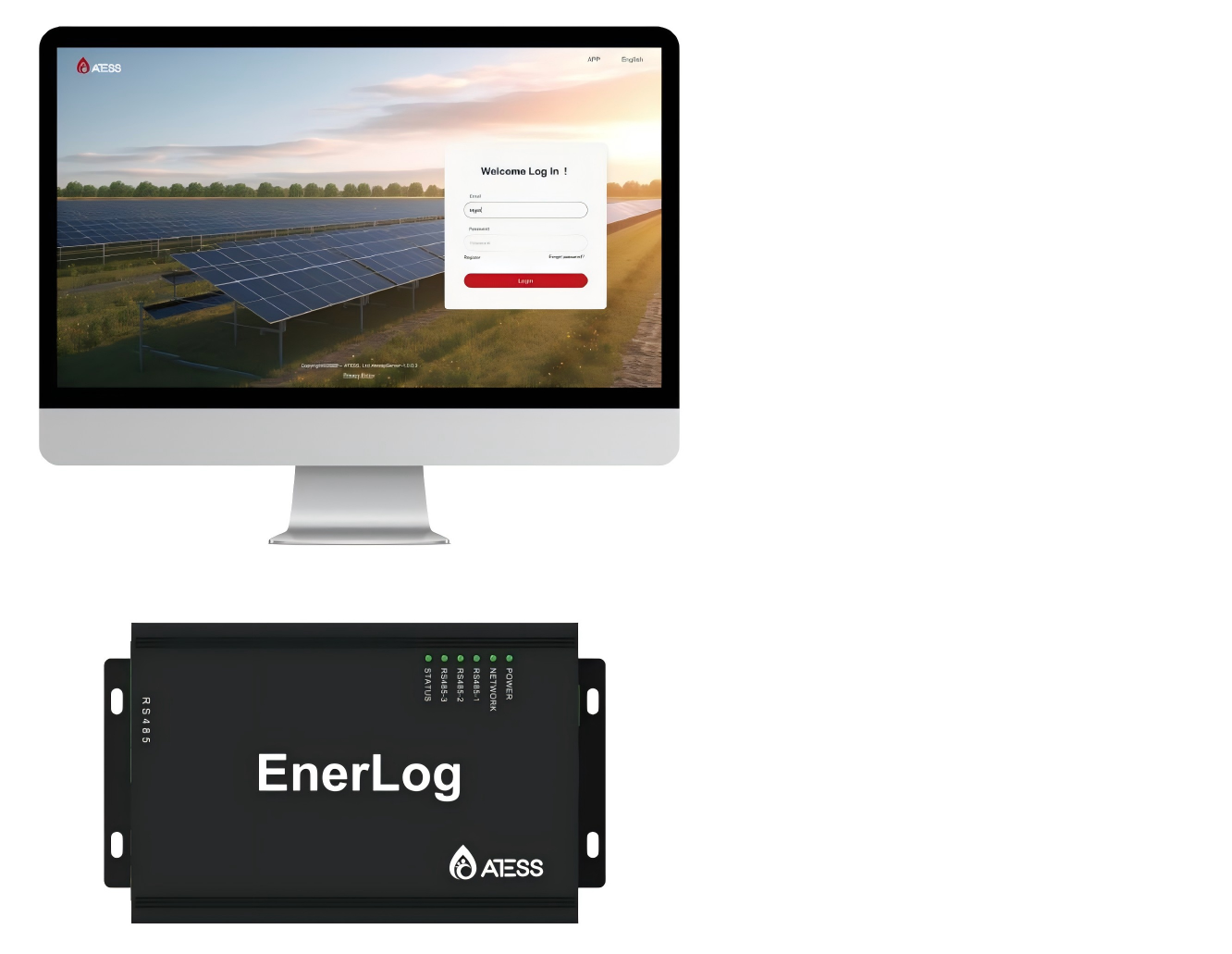

Monitoring

Enjoy Solar provides overall system monitoring solution on both PC and mobile for real-time monitoring and easy O&M.

Up to 32 devices connection

Support external sensors to realize the zero-export function

Local web server for easy configuration

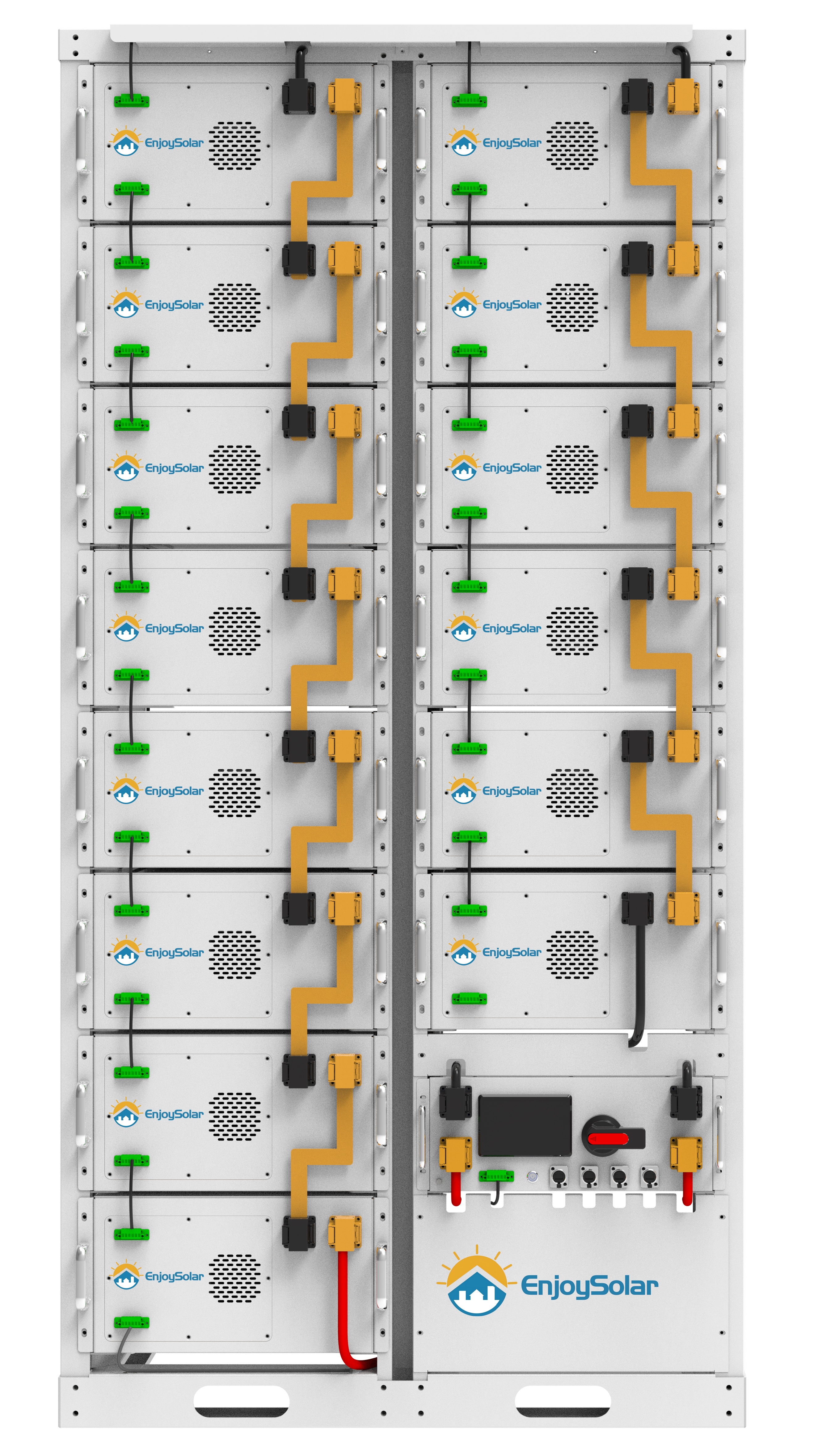

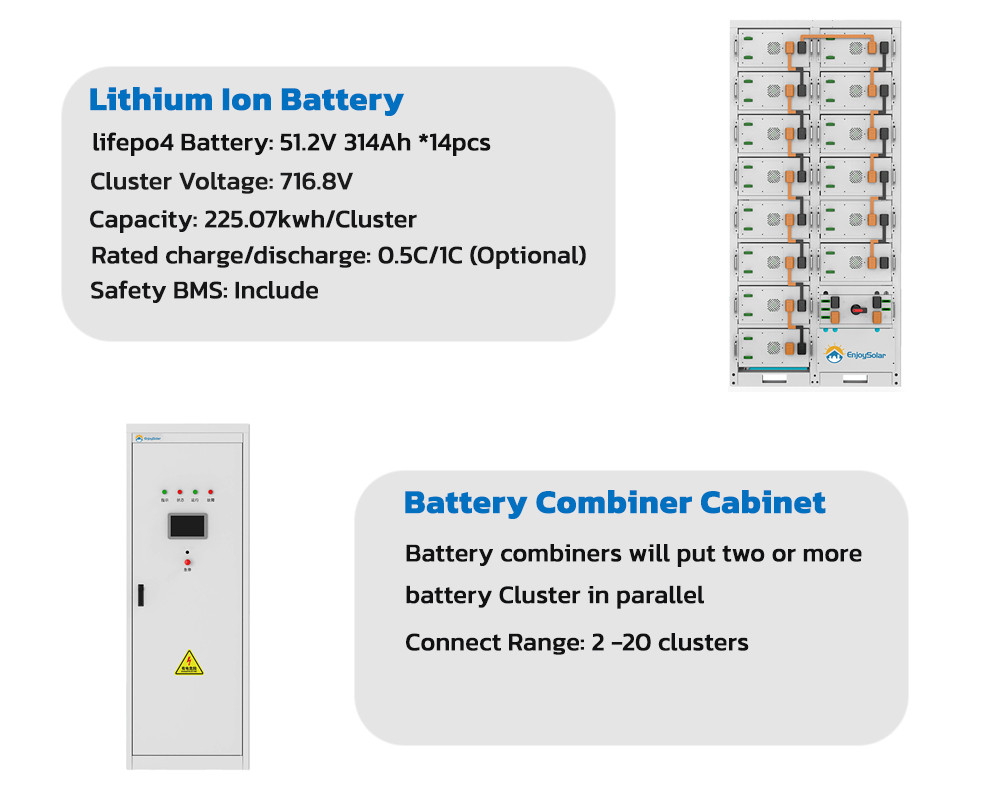

Lithium Ion Battery Cluster

LiFePO4 Battery Module: 51.2V314Ah * 14pcs

Battery Cluster Voltage: 716.8V

Cluster Enengy Storage Capacity: 225Kwh

Rated Charge/Discharge: 0.5C Standard/ 1C Optional

Safty BMS: Included

Features:

Excellent Heat Dissipation

Plug&Play Module Design

BMS&Breaker Modular Level Protection

15 Years Life Design, 6000+ Cycles Life

DC Cabinet

Range of Battery Clusters connected in parallel: 2-20

Rated Battery Cluster Current: 100A - 300A

Rated Charge and Discharge Current: 200A - 6000A

Max. Battery Voltage: 1000V

MBMS: Inbuilt

Protection Level: IP20

Display: 7 inch touch screen

Features:

Compact Design

Easy Installation

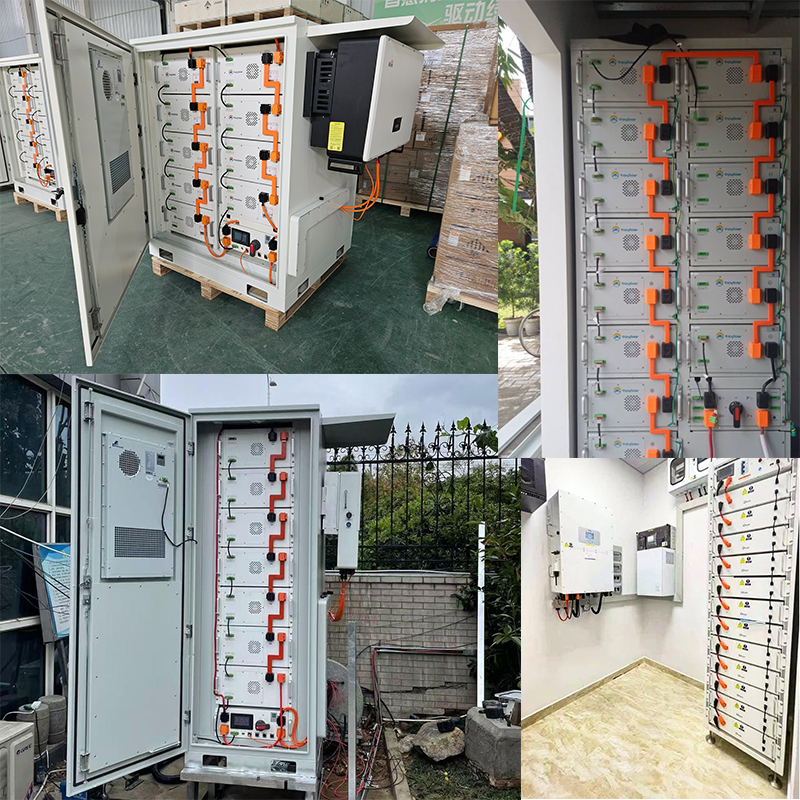

Project Case

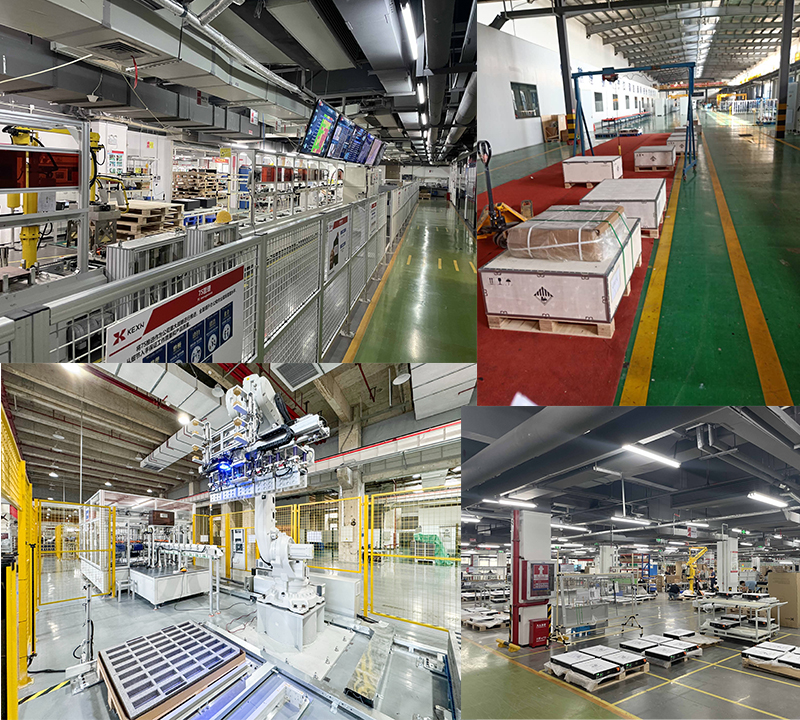

Our Factory
