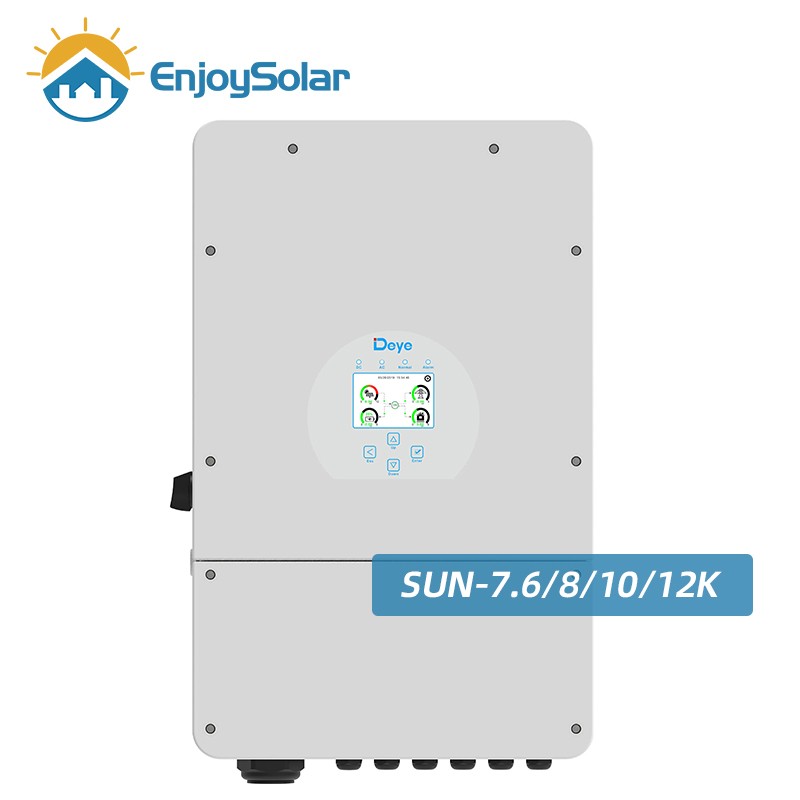

Deye Single Phase Hybrid Inverter 7.6KW 8KW 10KW 12KW with 48V battery

Deye Single Phase Hybrid Inverter 7.6KW 8KW 10KW 12KW with 48V battery

Category： Hybrid Inverter
Brand: DEYE
Inverter Type: 220V/230V Single Phase Hybrid
Battery Type: 48V Lead-acid or Lithium-ion
Certificate : TUV, ETL, CSA, CE, ISO
Product description：Hybrid Inverter, Deye Inverter, 48V Inverter, single phase inverter, hybrid inverter
INQUIRY EMAIL

Product Briefing

SUN-7.6/8/10/12K-SG02LP1-EU-AM2/AM3 | 7.6-12kW |Single Phase | 2 MPPT | Hybrid Inverter | LV Battery Supported

Higher yields / Safe & Reliable / Smart / User-friendly

Retrofit-Ready & Scalable
AC-coupled for easy upgrade of existing solar systems. Scale up to 16 units in parallel for on/off-grid power.

High-Power & Smart Control
250A max charge/discharge current. Manage energy with 6 customizable time periods.

Robust & Versatile Integration
Store power from solar and diesel generators. Connect multiple battery banks. Features a color touch LCD with IP65 rating.

Product Parameters

Model	SUN-7.6K-SG02LP1-EU-AM2	SUN-8K-SG02LP1-EU-AM2	SUN-10K-SG02LP1-EU-AM3	SUN-12K-SG02LP1-EU-AM3
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range(V)	40-60
Max.Charging Current(A)	190	190	220	250
Max.Discharging Current(A)	190	190	220	250
Charging Strategy for Li-ion Battery	Self-adaption to BMS
Number of battery input	1
PV String Input Data
Max. PV Access Power (W)	15200	16000	20000	24000
Max DC Input Power（W）	12160	12800	16000	19200
Max DC Input Voltage（V）	500
Start-up Voltage（V）	125
MPPT Voltage Range（V）	150-425
Rated DC Input Voltage(V)	370
Max. Operating PV Input Current (A)	26+26		26+26+26
Max. Input Short-Circuit Current (A)	44+44		44+44+44
No.of MPP Trackers/No.of String Per MPP Tracker	2/2+2		3/2+2+2
AC Input/Output Data
Rated AC Input/Output Active Power（W）	7600	8000	10000	12000
Max AC Input/Output Apparent Power （VA）	836 0	8800	11000	13200
Peak Power (off-grid)（W）	2 times of rated power,10s
Rated/Max AC Input/Output Current（A）	34.6/33.1	36.4/34.8	45.5/43.5	54.6/52.2
Max Continuous AC Passthrough (grid to load)（A）	50		60
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Rated Input/Output Voltage/Range (V)	220/230 0.85Un-1.1Un
Rated Input/Output Grid Frequency/Range(Hz)	50/45-55, 60/55-65
Grid Connection Form	L+N+PE
Total Current Harmonic Distortion THDi	<3% (of nominal power)
DC Injection Current	<0.5%ln
Equipment Protection
Integrated	DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection,
	AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring,
	Overvoltage Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional),
	Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch,
	DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
Surge Protection Level
Interface
Communication Interface	TYPE II(DC),TYPE II(AC)
Monitor Mode	GPRS/WIFI/Bluetooth/4G/LAN(optional)
General Data
Operating Temperature Range	-40 to +60℃, >45℃ Derating
Permissible Ambient Humidity	0~100%
Permissible Altitude	2000m
Noise	＜45
Ingress Protection(IP) Rating	IP 65
Inverter Topology	Non-Isolated
Over Voltage Category	OVC II(DC),OVC IV(AC)
Cabinet size（WHD）[mm]	420×670×233（Excluding connectors and brackets）
Weight[kg]	35.6
Type Of Cooling	Intelligent air cooling
Grid Regulation	VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1,
	G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

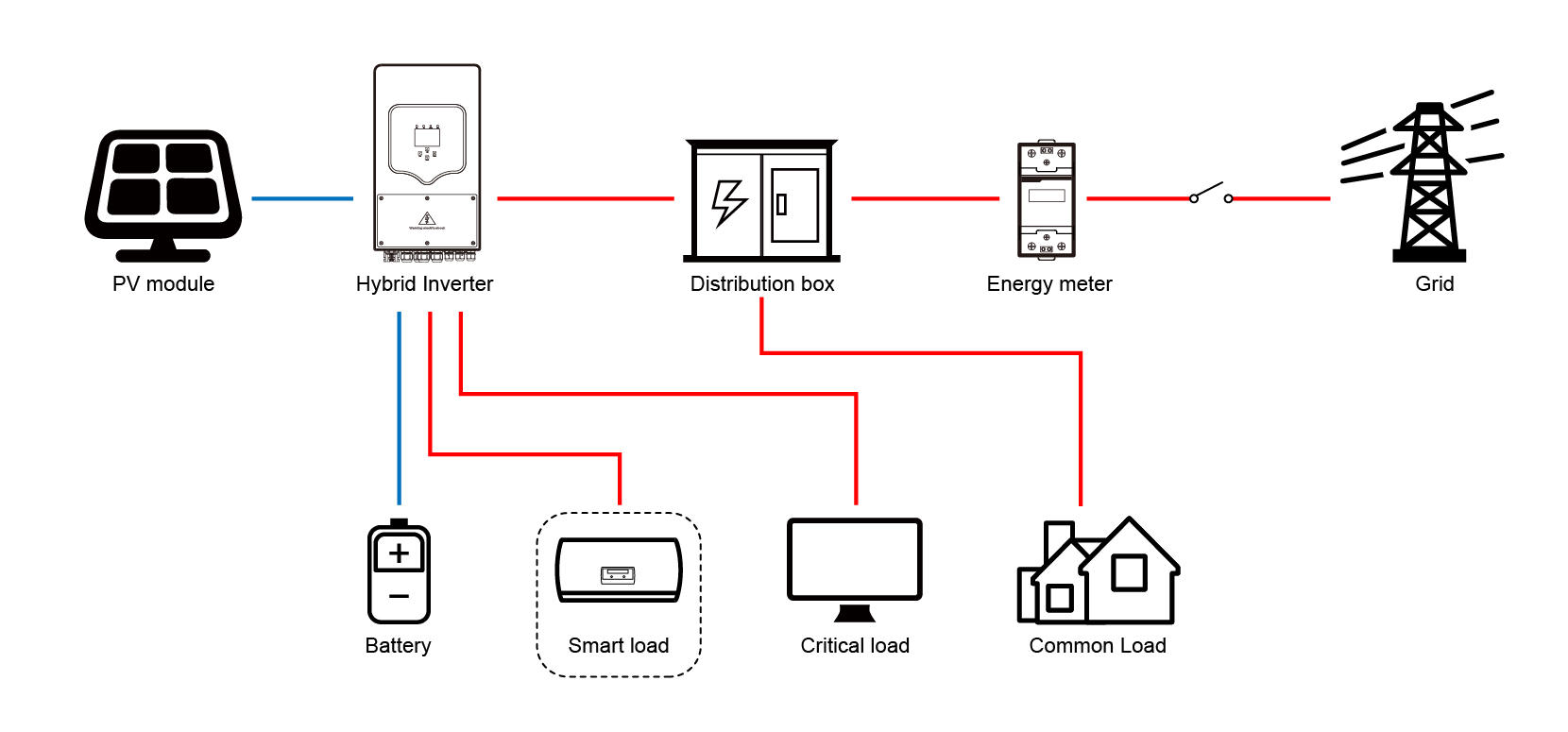

Deye Hybrid Inverter Solution Diagram

Deye Energy Storage Solutions

Feature 1: Solar Self-Consumption Optimization

Function: During daylight, PV power is first directed to support active loads. Any surplus energy is then used to charge the battery via the hybrid inverter.

Benefit: Maximizes the use of on-site solar generation and stores excess energy for later use.

Feature 2: Critical Load Backup Power

Function: Equipped with independent grid and critical load output ports. In the event of a grid failure, the system automatically switches to battery power within 4ms to supply designated circuits.

Benefit: Ensures uninterrupted operation of essential appliances (e.g., refrigerators, computers, lighting) and can handle the startup surge of non-inverter air conditioners.

Feature 3: Electricity Cost Reduction

Function: Offers six programmable time-of-use periods for charge/discharge scheduling and includes a grid peak shaving function to limit maximum grid power draw.

Benefit: Enables charging from the grid at low-cost, off-peak rates and discharging during expensive peak hours, directly reducing electricity bills.
