Customized Lifepo4 Battery Cell 200kwh 215kwh HV Lithium Ion Battery Energy Storage Pack

Product Item : ES200K
Category： Lithium Battery
Capacity: 200kwh,215kwh or customized
Battery Type :HV
Battery Cell: Lifepo4 Battery
Design Life: > 6000 times, 15 years+
Product description：High Voltage battery system, lithium battery cluster, lithium battery packs, solar battery system. lfp battery pack, solar battery
INQUIRY EMAIL

Product Description

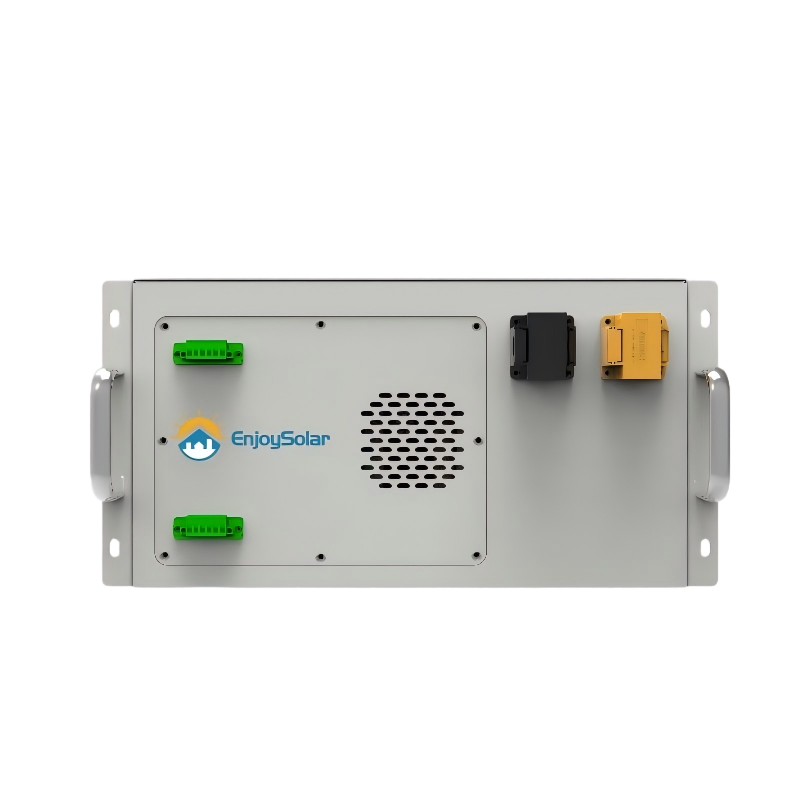

High Voltage 51.2V280Ah Battery Module

Product Features :

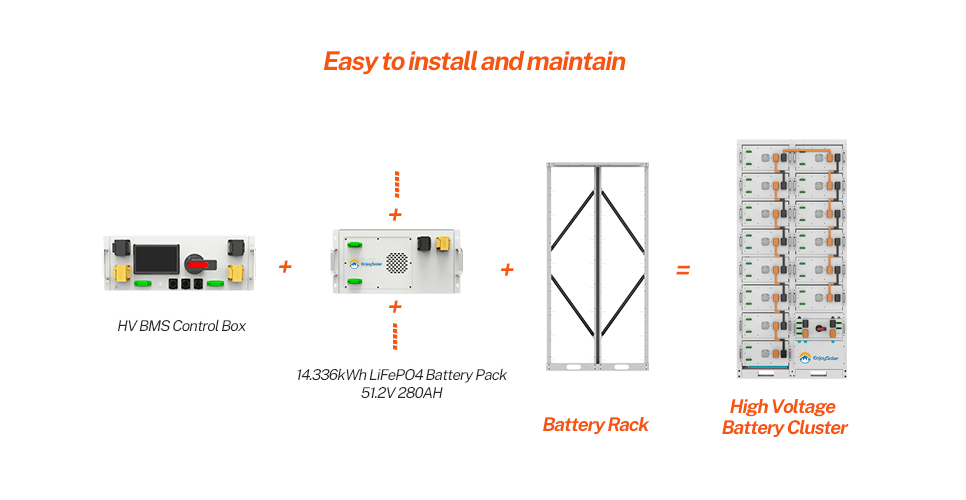

Modular & Compact: A state-of-the-art 19-inch modular design delivers a lightweight, space-saving solution for effortless installation.
High Energy Density: Featuring a 3.2V 280Ah square aluminum core for unparalleled energy efficiency and robust performance.
Intelligent Control: Advanced system management ensures superior operational stability and reliability.
Long Lifespan: An innovative extrusion design enables an exceptional lifecycle of over 10 years.
Durable Performance: Optimized for long-term charge/discharge cycles to guarantee consistent power output.
Seamless Integration: A highly compatible BMS allows perfect communication with energy storage inverters, maximizing system efficiency.

Battery Pack Parameter

Model	ES-100K	ES-200K	ES-215K
Product	358.4V280Ah	716.8V280Ah	768V280Ah
Nominal Voltage	354.8V	716.8V	768V
Nominal Capacity	280	280	280
Battery Module Quantity (Unit)	7	14	15
Nominal Capacity (Kwh)	100.3Kwh	200.7Kwh	215.04Kwh
Discharge Cut-Off Voltage (V)	308	616	660
Charge Cut-Off Voltage (V)	397.6	795.2	852
Recommend Charge/Discharge Current (A)	100	100	100
Max. Charge/Discharge Working Current (A)	200	200	200
Battery Module Dimension (mm)	483245792*7	483245792*14	483245792*15
Battery Rack Dimension (mm)	10907801190	10907802190	10907802190
Weight (Kg)	912	1804	1920
