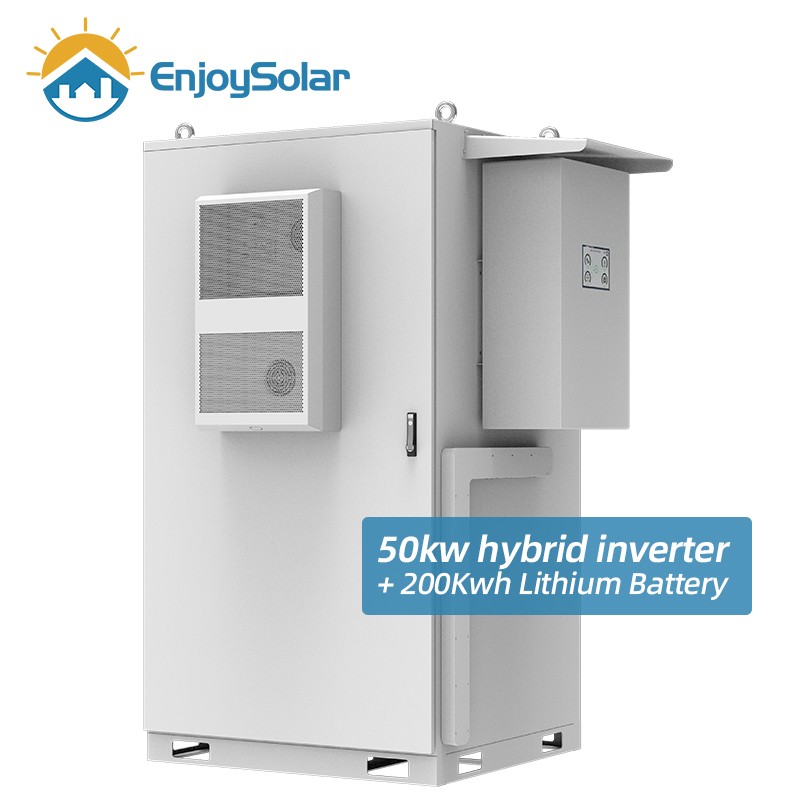

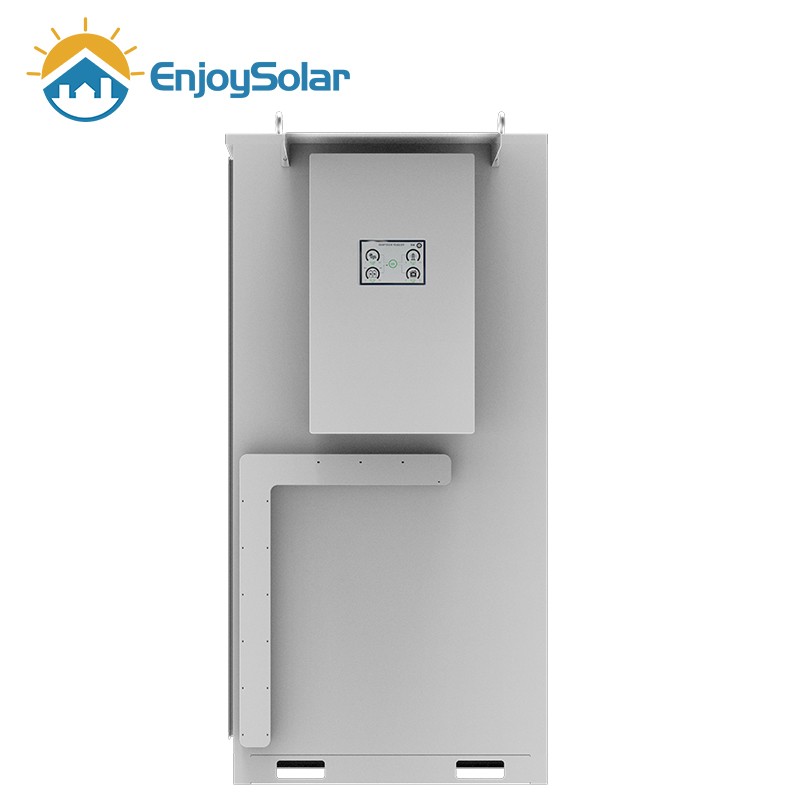

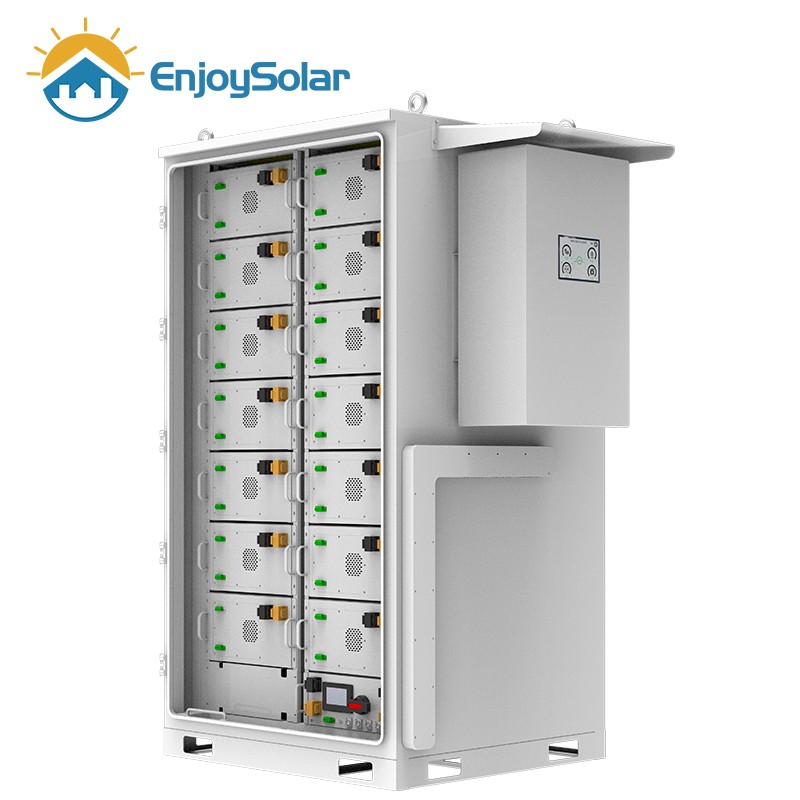

200kwh All In One Outdoor Battery Cabinet

200kwh All In One Outdoor Battery Cabinet

Category： Battery Cabinet
Lithium Battery
solar battery
solar system
Lithium Ion battery
Product description：Battery, Lithium ion battery, Solar Battery, Lifepo4 Battery
INQUIRY EMAIL

Data Sheet

MODEL	ES-100K	ES-200K	ES-172K
Product	HV100K	HV200K	HV172K
Nominal Voltage	358.4V	716.8V	614.4V
Nominal Capacity	280AH	280AH	280AH
Cabinet Size(mm)	125012452175	162612452175	162612452175
Weight(kg)	1260KG	2200KG	200KG
Charge/discharge power MAX	140A	140A	140A
Cooling method	Air-cooled	Air-cooled	Air-cooled
Protection class	IP55	IP55	IP55
Type of firefighting	Aerosol	Aerosol	Aerosol
BATTERIE SPECIFICATIONS	PARAMETER	PARAMETER	PARAMETER
Battery Types	51.2V-280AH	51.2V-280AH	51.2V-280AH
Nominal Capacity (KWh)	100KWh	200KWh	172KWh
Recommend Charge/Discharge Current (A)	100	100	100
Max. Charge/Discharge Current(A)	140	140	140
Communicaiton	RS485/CAN	RS485/CAN	RS485/CAN
Working Temperature	0ºC~50ºC Charge -10ºC ~50ºC Disharge	0ºC~50ºC Charge -10ºC ~50ºC Disharge	0ºC~50ºC Charge -10ºC ~50ºC Disharge
Transport or Storage Temperature Range	-20ºC~60ºC	-20ºC~60ºC	-20ºC~60ºC
Certification	CE/IEC/UL/UN38.3/MSDS	CE/IEC/UL/UN38.3/MSDS	CE/IEC/UL/UN38.3/MSDS
Design Life	10years+	10years+	10years+
Cycle Life	(0.5C/0.5C-80% D0D)>6000 times	(0.5C/0.5C-80% D0D)>6000 times	(0.5C/0.5C-80% D0D)>6000 times
Cooling method	Air-cooled	Air-cooled	Air-cooled
Certification	UN38.3/MSDS/ROHS	UN38.3/MSDS/ROHS	UN38.3/MSDS/ROHS
AC SPECIFICATIONS	PARAMETER	PARAMETER	PARAMETER
Rating	50KW	50KW/100KW	50KW/100KW
Overloaded	110%	110%	110%
Rated AC Voltage	400V	400V	400V
Rated frequency	50/60Hz	50/60Hz	50/60Hz
Communicaiton	Ethernet/Modbus/TCP/IP	Ethernet/Modbus/TCP/IP	Ethernet/Modbus/TCP/IP
Inverter Type	Deye/Solis/Megarevo/Other	Deye/Solis/Megarevo/Other	Deye/Solis/Megarevo/Other
