75KW 100KW 125KW Three Phase 400V Hybrid Solis Solar Energy Storage Inverter for Commercial Applications

75KW 100KW 125KW Three Phase 400V Hybrid Solis Solar Energy Storage Inverter for Commercial Applications

Category： Hybrid Inverter
Inverter Power: 75KW, 100KW or 125KW
Battery Port: 2
Output Voltage:230V/400V 3P
Battery Type: HV Li-ion
Product description：100KW inverter, 125KW inverter, hybrid inverter, solar inverter, on off grid inverter, three phase inverter, energy storage inverter
INQUIRY EMAIL

Product Description

S6-EH3P(75-125)K10-NV-YD-H

75K/80K/99.9K/100K/125K HV Energy Storage C&I inverter

The S6-EH3P(75-125)K10-NV-YD-H Series is a high-voltage, three-phase commercial energy storage inverter. Key features include dual 100A independent battery ports, 10 integrated 21A MPPTs, and support for both on-grid and off-grid applications. The unit is highly scale-able (up to six in parallel), offers robust backup power capability (2x overload capacity), and supports intelligent peak shaving control across various battery types due to its wide voltage range.

Product Highlights

Delivers 160% overload for 200ms in off-grid mode, ensuring stable startup of heavy loads
Provides dynamic reactive power compensation to improve grid power factor and reduce reactive power charges
Two independent battery ports for flexible configurations and easy capacity expansion
Extends supply time for critical loads with intelligent load prioritization
Offers a versatile three-in-one interface for seamless integration of on-grid PV, wind power, and diesel generators
Achieves on- and off-grid transitions in less than 10ms, ensuring an uninterrupted power supply
Supports multi-unit parallel operation up to 1.25MW (Solis STS cabinet recommended for systems over 6 units)

Product Parameter

Models	75K	100K	125K
Input DC(PV side)
Recommended max. PV array size	150kW	200kW	250kW
Max. usable PV input power	150kW	200kW	250kW
Max. input voltage	1000V
Rated Voltage	600V
Start-up voltage	180V
MPPT voltage range	150 - 950V
Max. input current	10*42A
Max. short circuit current	10*60A
MPPT number/Max. input strings number	10/20
Battery
Battery Type	Li-ion
Battery voltage range	300 - 950V
Max. charge/discharge current	200A/100A+100A
Number of battery ports	2
Max. Charge/discharge current of each port	100A
Communication	CAN.RS485
Output AC(Grid side)
Rated output power	75kW	100kW	125kW
Max, apparent output power	75kVA	100kVA	125kVA
Rated grid voltage	3/N/PE, 220V/380V, 230V/400V
Rated grid frequency	50 Hz/ 60 Hz
Rated grid output current	114A/108.3A	151.9A/144.3A	189.9A/180.4A
Power factor	＞ 0.99(0.8 leading - 0.8 lagging)
THDi	＜ 3%
Input AC(Grid side)
Max. input current	250A
Output AC(back-up)
Rated output power	75kW	100kW	125kW
Max. apparent output power	75-100K: 1.2 times of rated power, 10 mins; 1.4 times of rated power, 100 s; 1.6 times of rated power, 10 s; 2 times of rated power, 200 ms; 125K: 1.2 times of rated power, 100 s; 1.4 times of rated power, 10 s; 1.6 times of rated power, 200 ms
Back-up switch time	＜ 10ms
Rated output voltage	3/N/PE, 220V/380V, 230V/400V
Rated frequency	50 Hz/ 60 Hz
THDv(@linear load)	＜ 2%
Input AC(Generator)
Max. input power	75kW	100kW	125kW
Rated input current	114A/108.3A	151.9A/144.3A	189.9A/180.4A
Rated input voltage	3/N/PE, 220V/380V, 230V/400V
Rated input frequency	50 Hz/ 60 Hz

Battery Compatible

Compatible with Wide Range of Battery Brands for Ultimate Flexibility

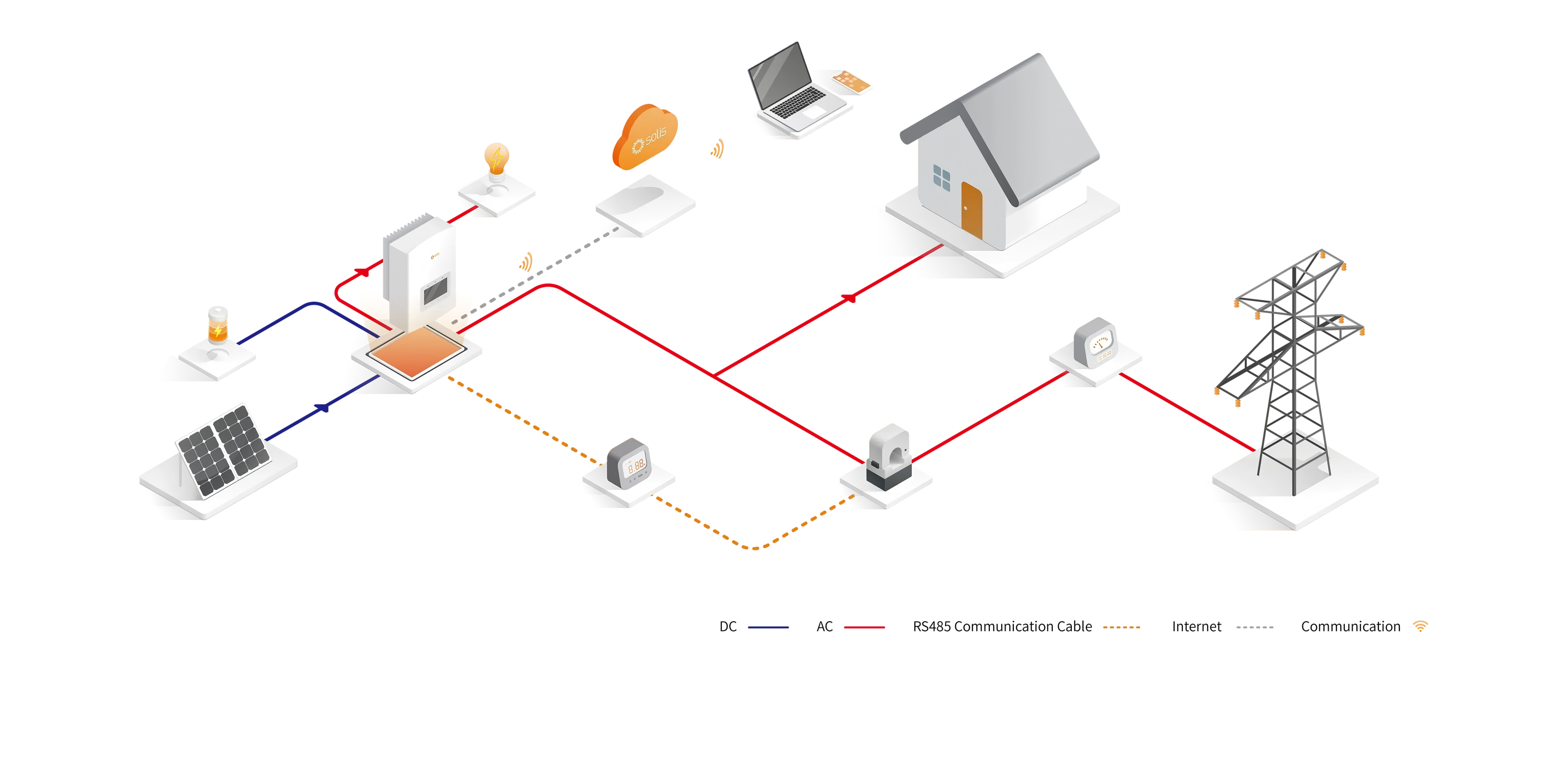

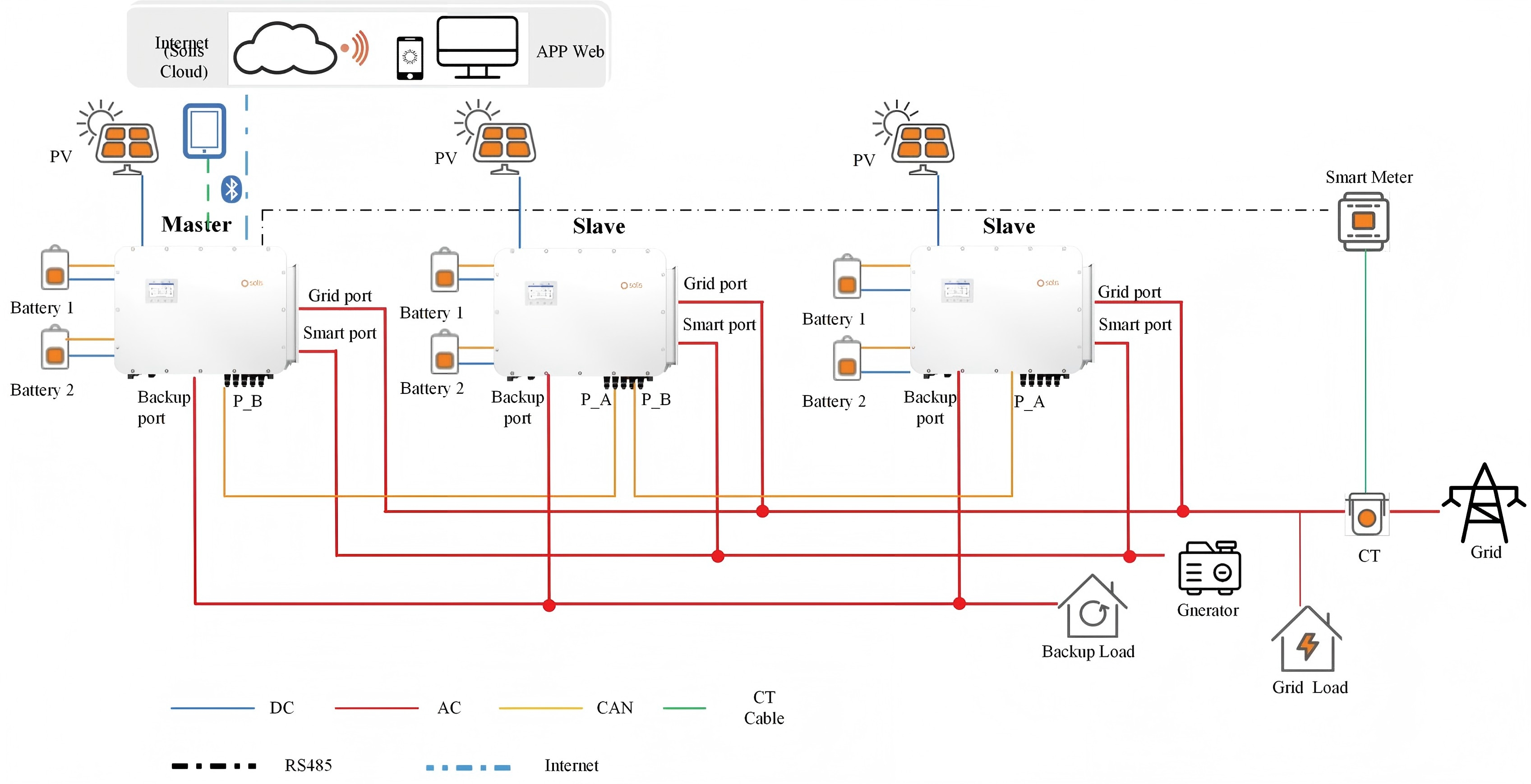

System Solution Connection Diagram

Packages and Delivery
