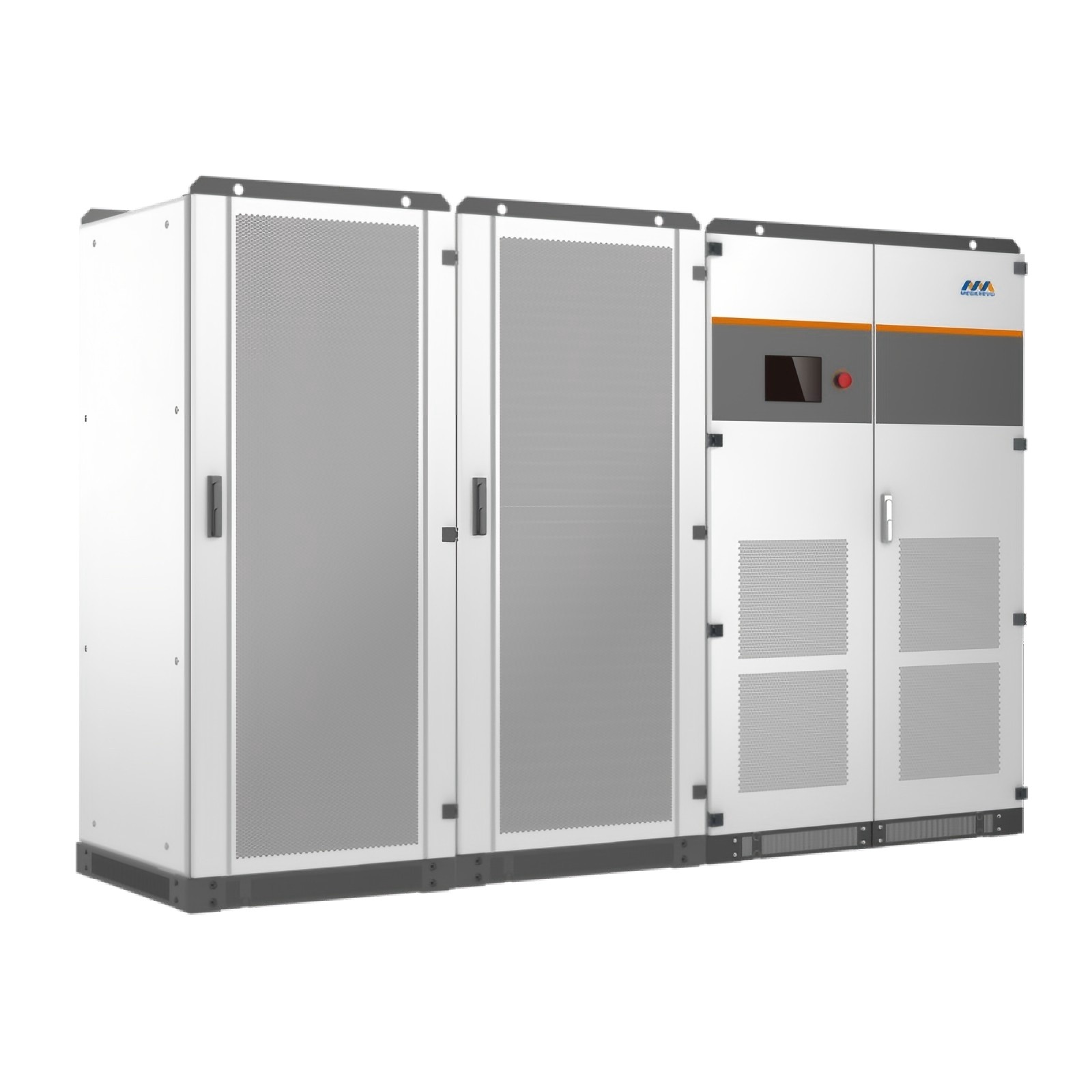

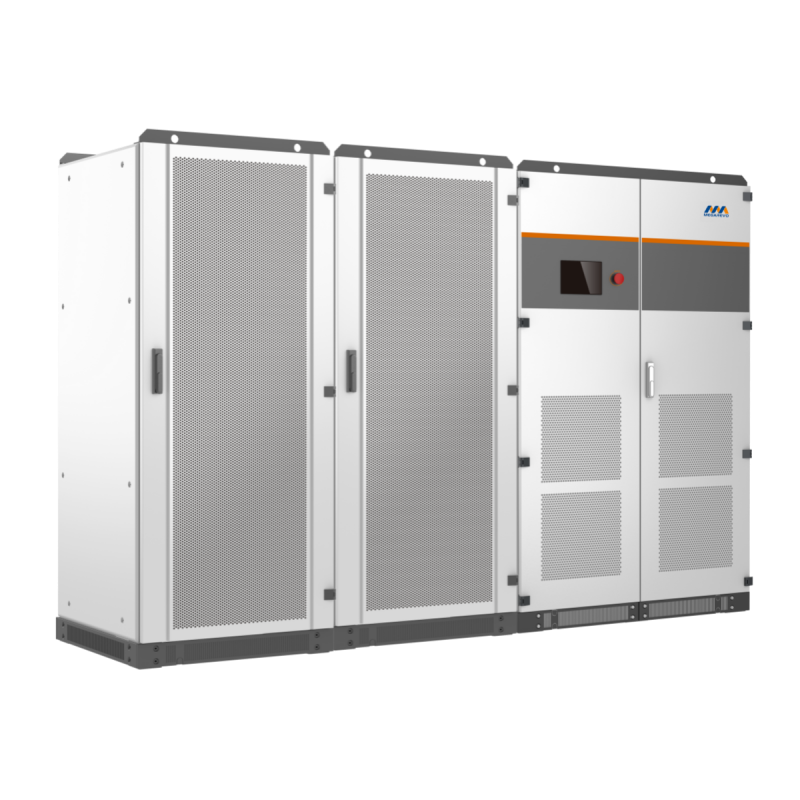

150KW 250KW 500KW isolated type hybrid on off grid C&I Solar MPPT Inverter with Transformer

Category： Hybrid Inverter
Inverter Type: Low frequency isolated Type
Protection Level: IP20
Output Voltage:400V/480V 3P
Cerificates: NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105
Product description：500KW inverter, hybrid inverter, solar inverter, on off grid inverter, three phase inverter, 150KW Inverter, 250kw hybrid inverter
INQUIRY EMAIL

Product Description

Enjoy Solar EPS series hybrid inverters adopt an integrated design, integrating PV controllers, energy storage converters, and on/off-grid automatic switching units, greatly improving customer deployment efficiency and reducing installation costs. The PV capacity can be flexibly configured, greatly improving the microgrid system availability, and is suitable for remote areas and islands where power is relatively weak.
Our microgrid inverter's strong load adaptability and complete protection function ensure power supply security and stability.

Product Highlights

Safe and reliable

Passed EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, IEC61727, IEC62116, IEC61683 NRS 097-2-1:2017, ASGC, AS/NZS 4417.1, CEI 0-21, CEI 0-16, G99 EN 50549-1, VDE 4105 test certification;

Flexible configuration

Support PV, diesel generator, battery, load at the same time access, also has strong adaptability, support black start; Various working modes can be set flexibly;

Convenient operation and maintenance

Supports unattended operation , with an HMI digital display panel, which quickly judge the operating status and health of the equipment. Combined with cloud-based EMS, it can realize remote monitoring and management.

Product Parameter

Model	EPS0030	EPS0050	EPS0100	EPS0150	EPS0250	EPS0500
AC(on-grid)
Max. output power (kW)	33	55	110	165	275	550
Rated output power (kW)	30	50	100	150	250	500
Rated voltage (V)	400
Voltage range (V)	320~460
Rated current (A)	43	72	144	216	361	722
Rated frequency (Hz)	50/60
Frequency range (Hz)	45~55 / 55~65
THDi	<3%
Power factor	1leading-1lagging(settable)
Grid type	3W+N+PE
AC(off-grid)
Max. output power (kW)	33	55	110	165	275	550
Rated power (kW)	30	50	100	150	250	500
Rated voltage (V)	400
Rated current (A)	43	72	144	216	361	722
THDu	≤1% linear; or≤5% nonlinear
Rated frequency (Hz)	50/60
Overload capacity	110% long-term, 120% 1min
PV input
Max. PV input voltage (V)	1,000
Max. PV power (kW)	82.5	82.5	165/247.5	165/247.5/330	330/412.5	660/742.5/825
MPPT module quantity	1	1	2/3	2/3/4	4/5	8/9/10
MPPT voltage range (V)	250~1000
Battery
Battery voltage range (V)	250~850	320~850	420~950	420~950	420~950	500~950
Max. charging power (kW)	33	55	110	165	275	550
General data
Dimension WDH (mm)	8008001,900	8008001,900	1,2008002,050	1,2008002,050	(6007202,050)1 +1,200800*2,050	(6007202,050)2+ 1,6001,050*2,050
Weight (kg)	620	720	1,120/1,150	1,250/1,280/1,310	1,950/1,980	3,205/3,235/3,265
Operation temperature (℃)	-30 ~ 55
Relative humidity	0 ~95% non-condensing
Ingress protection	IP20
Noise emission (dB)	<70
Operating altitude (m)	>3,000 Derating
Cooling	Air Cooling
Display and communication
Display	LCD touch-screen
BMS communication	RS485, CAN
EMS communication	RS485, TCP/IP
Certificates	EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, NRS 097-2-1:2024, ASGC

C&I Energy Storage Solution

Based on the characteristics of C&I loads, Enjoy Solar's solution can effectively solve the customer's transformer capacity limitation, high electricity charge and power cut-off problem. With 98.7% high efficiency conversion, it can help enterprises realize low-carbon sustainable development and shorten the return cycle of customers' investment at the same time;

Safe and reliable

Efficient and stable

Intelligent& Friendly

Economical and durable

Built-in complete safety protection function, including overcharge, overload, short circuit, etc.

Support manual disconnection of DC input and AC grid, and one-key emergency stop;

Wide DC input voltage range;

The efficiency is more than 98.7%;

MPPT accuracy tracking accuracy ≥ 99.9%;

Wide temperature operation

capability from -40°C to +60°C,

altitude height ≥3000m the capacity will be derated；

AC/DC Dual redundant power supply for the control system.

The design life of the scheme is

morethan 25 years;

Using a new generation of low-loss

IGBT devices, the loss can be obviously reduced by 7.63% compared to old generation;

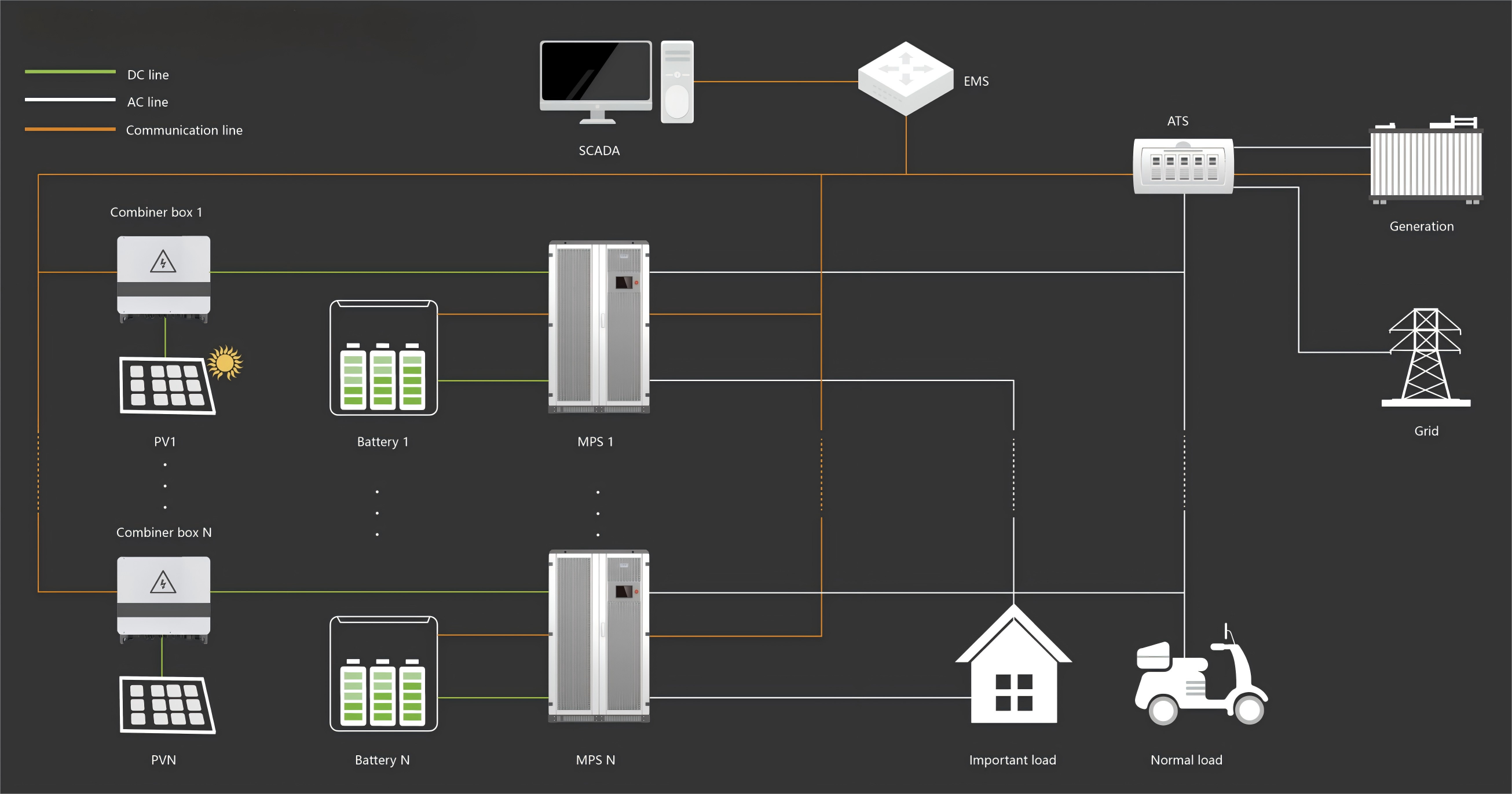

Solution Connection Diagram

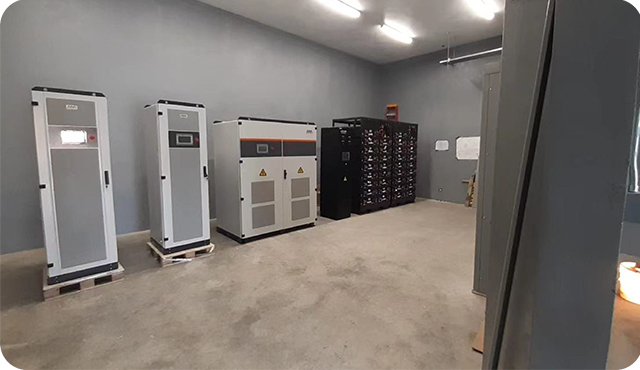

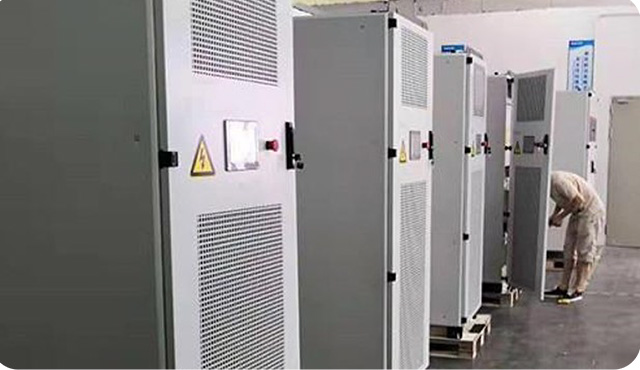

Project

Why Choice US

Enjoy Solar can provide customers with feasible solutions and turnkey services according to different application. Whether it is small-scale distributed or large-scale centralized, Enjoy Solar has rich experience in implementation, and has already helped more than 1,000 poor region to achieve energy freedom in the global.
