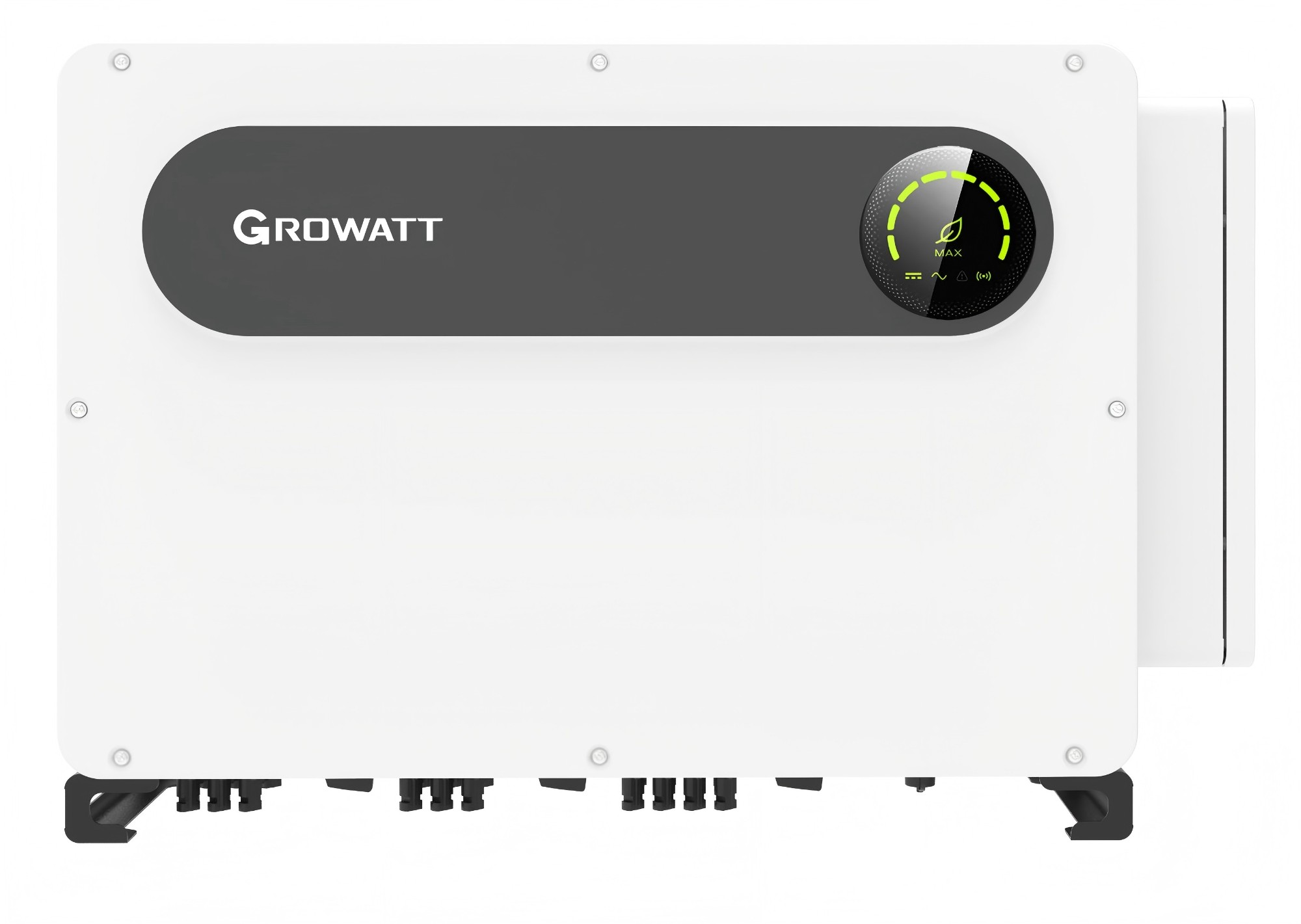

Growatt 100KW 110KW 125KW 150KW Commercial & Industrial Grid- tied Solar PV Inverter

Category： On Grid Inverter
Rated Power: 100KW, 110KW, 125KW and 150KW
AC Output Voltage: 380V/400V Three Phase
Inverter Type: Commercial & Industrial PV Inverter
Certificate : TUV, ETL, CSA, CE, ISO
Product description：grid tied Inverter, Solar Inverter, 150kw Inverter , 100KW solar inverter, Growatt Inverter
Attachment INQUIRY EMAIL

Commercial & Industrial PV Inverter

MAX 100-125KTL3-X LV

·10 MPPTs fusefree design

·Smart I/V scan and diagnosis

·Intelligent string monitoring

·AC&DC type II SPD

·IP66 protection

Key Features
Safety and Reliability	High Yields	Optimal Electricity Cost
- AFCI protection optional	- Multiple MPPTs design, up to 10 MPPTs	- Compatible with AI and Cu AC cables
- Type II SPD on DC and AC sides	- Compatible with high power modules	- DC 2 in 1 connection
- IP 66 protection degree	- DC/AC ratio up to 1.5	- PLC communication optional

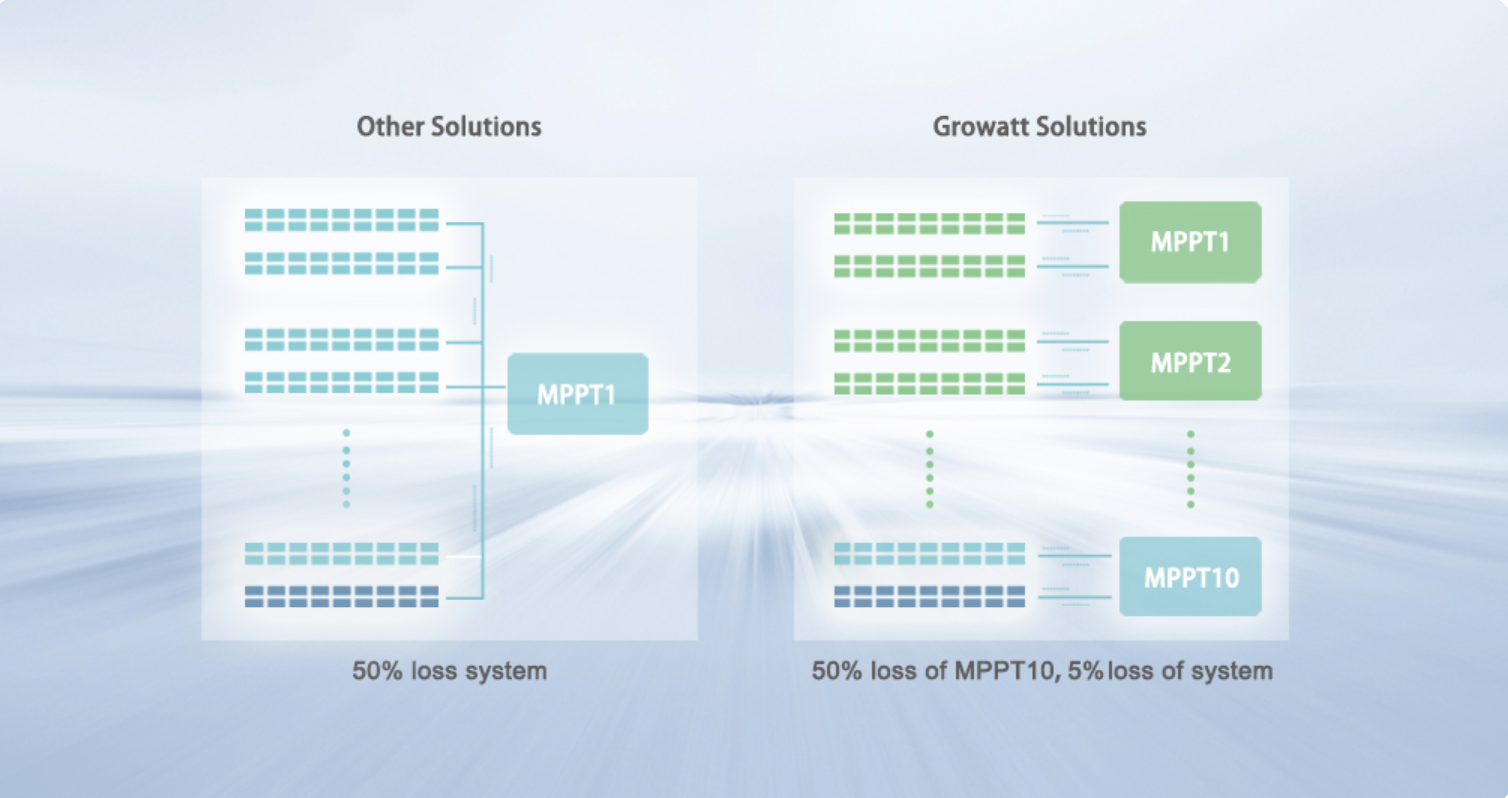

Multiple MPPTs design

2 strings per MPP tracker, each MPP tracker can achieve its best performance, more energy yields of whole system

Product Parameter

Datasheet	MAX 100KTL3-X LV	MAX 110KTL3-X LV	MAX 120KTL3-X LV	MAX 125KTL3-X LV
Input Data (DC)
Max. DC Voltage	1100V
Start voltage	195V
Nominal voltage	600V
MPP voltage range	180V~1000V
Max. input current per MPP tracker	32A
Max. short-circuit current per MPP tracker	40A
No. of PV strings per MPP tracker	2
No. of MPP trackers	10
Output Data (AC)
AC nominal power	100kW	110kW	120kW	125kW
Max. AC apparent power	110kVA	121kVA	132kVA	137.5kVA
Nominal AC voltage/range	220V/380V, 230V/400V (340-440V)
Nominal AC grid frequency/range	50/60Hz,45-55Hz/55-65Hz
Max. output current	83.3A	105A	125A	166.7A
AC grid connection type	3P3W+PE/3P4W+PE
Input Data (AC)
AC nominal power	50kW/100kW	63kW/126kW	75kW/150kW	100kW/200kW
Max. AC apparent power	55kVA/100kVA	69.3kVA/126kVA	82.5kVA/150kVA	110kVA/200kVA
Nominal AC voltage/range	380/400/415V,-15%~+10%
Nominal AC grid frequency/range	50/60Hz,45-55Hz/55-65Hz
Max. output current	158.8A@400V; 167.1A@380V	174.6A@400V; 183.8A@380V	190.5A@400V; 200.5A@380V	198.5A@400V; 208.9A@380V
Adjustable power factor	0.8leading ... 0.8lagging
THDi	＜ 3%
AC grid connection type	3W/N/PE
Efficiency
Max. efficiency	98.8%
European efficiency	98.4%	98.5%	98.5%	98.5%
MPPT efficiency	99.9%
General
Dimensions (W/H/D)	970/640/345mm
Weight	84kg
Operating temperature range	-30 °C~60 °C
Warranty (5/10 years)	Yes/Opt
