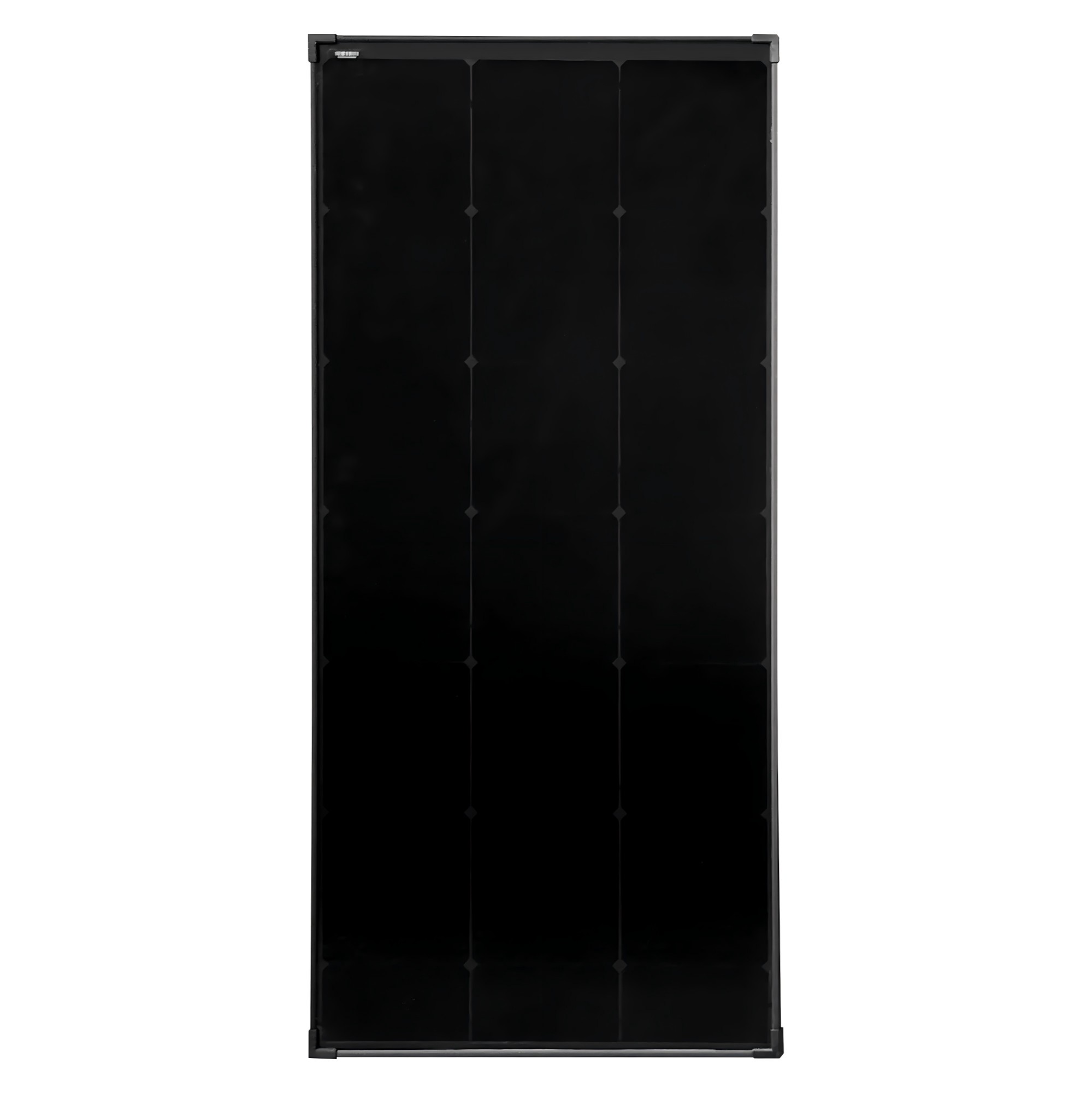

EnjoySolar Full Black HPBC 100W 150W 200W Solar Panel

EnjoySolar Full Black HPBC 100W 150W 200W Solar Panel

Category： Solar Panel
Solar cell : HPBC Full Black
Package: Single Package
Size : 970*580*30mm
Module Weight: 6.5kgs
Product description：HPBC Solar Panel, 100W PV Panel, 150W Solar Module, Balcony Solar Panel, Balcony Photovoltaics, Full Black Solar Panel
INQUIRY EMAIL

Technology Comparison:

Features	Conventional (N-type/PERC)	HPBC
Front Metal Contacts	Yes (visible grid lines)	No (all-back contact)
Aesthetics	Moderate (silver grid)	High (full black surface)
Temperature Performance	Standard	Improved
Manufacturing Complexity	Moderate	Higher but scalable
Low-Light Efficiency	Standard	Enhanced

Special Features:

No front metal lines – 100% active surface for maximum sunlight absorption

Premium black-on-black aesthetics – seamless, modern appearance

Back-contact design – cleaner power output and better heat dissipation

Outstanding low-light performance – efficient even on cloudy days

Improved temperature coefficient – higher output in extreme heat

Long-term reliability and durability – built for the harshest environments

Tempered ESG solar glass – weather-resistant coating

Reinforced aluminum frame – rigid, corrosion-resistant support structure

IP67 waterproof – designed to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa

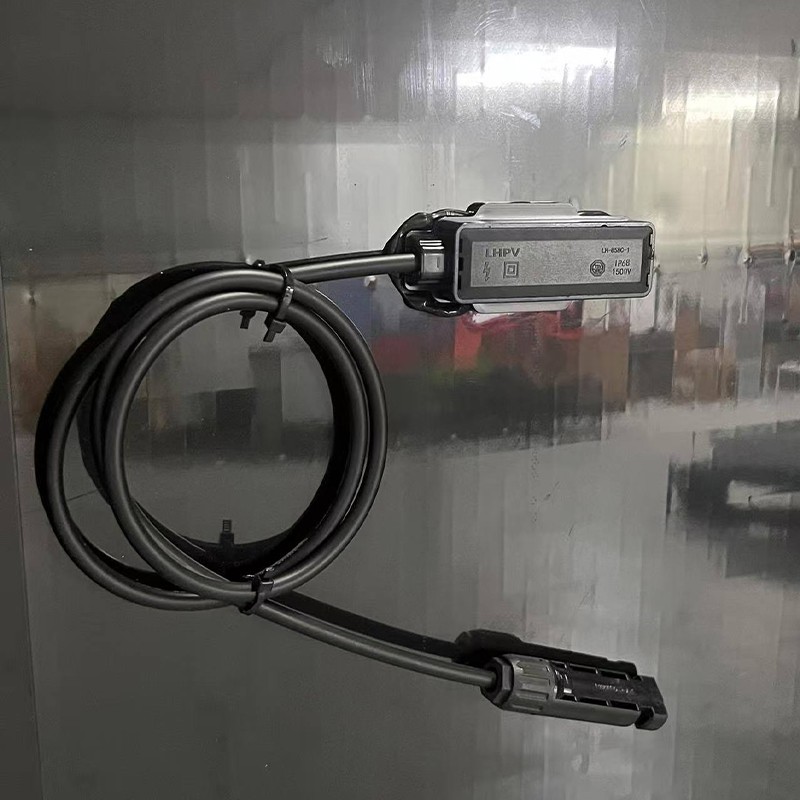

Plug-and-play cabling – 4.0 mm² solar cable with MC4 connectors

Performance guarantee – +3% tolerance; 90% output for 10 years, 80% for 25 years

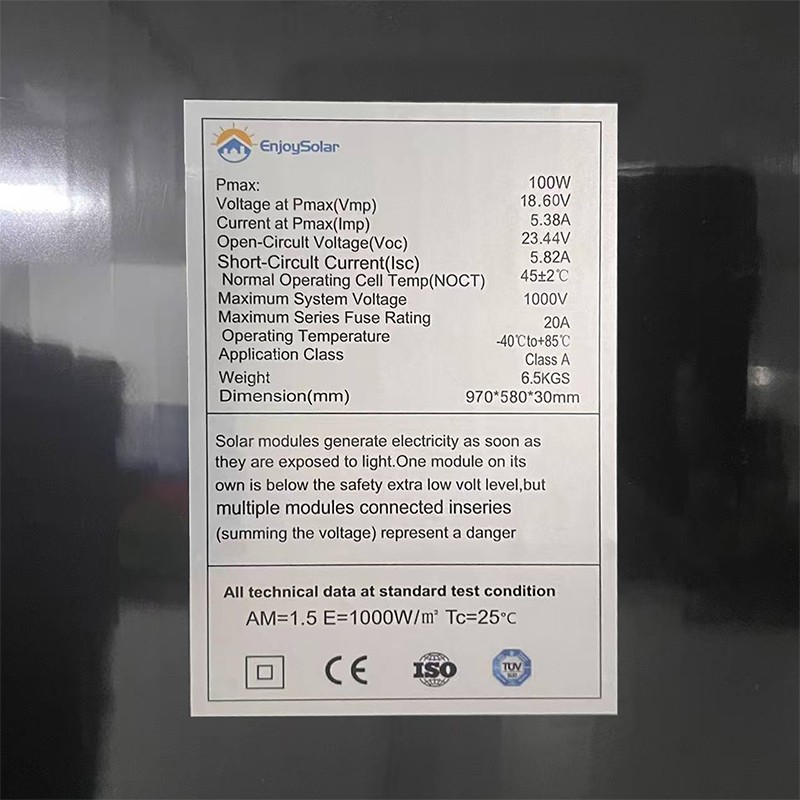

Technical Specifications

Nominal Power	100W
Cell Type	HPBC
Cell Efficiency	>25%
Maximum Power Current (Impp)	5.38A
Maximum Power Voltage (Vmpp)	18.6V
Open-circuit Voltage (Voc)	23.44V
Short-circuit Current (Isc)	5.82A
Maximum System Voltage	500V
Output Tolerance	0~+3%
Junction box rating	IP67
Operating temperature range	-40℃~+80℃

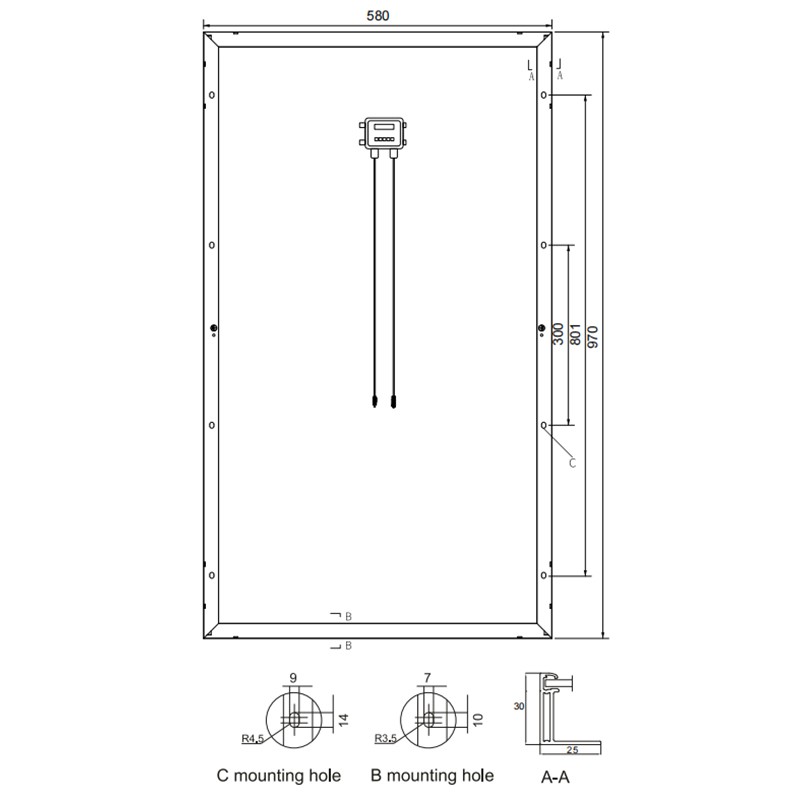

Module Dimensions	97058030mm
Module Weight	6.5 kgs

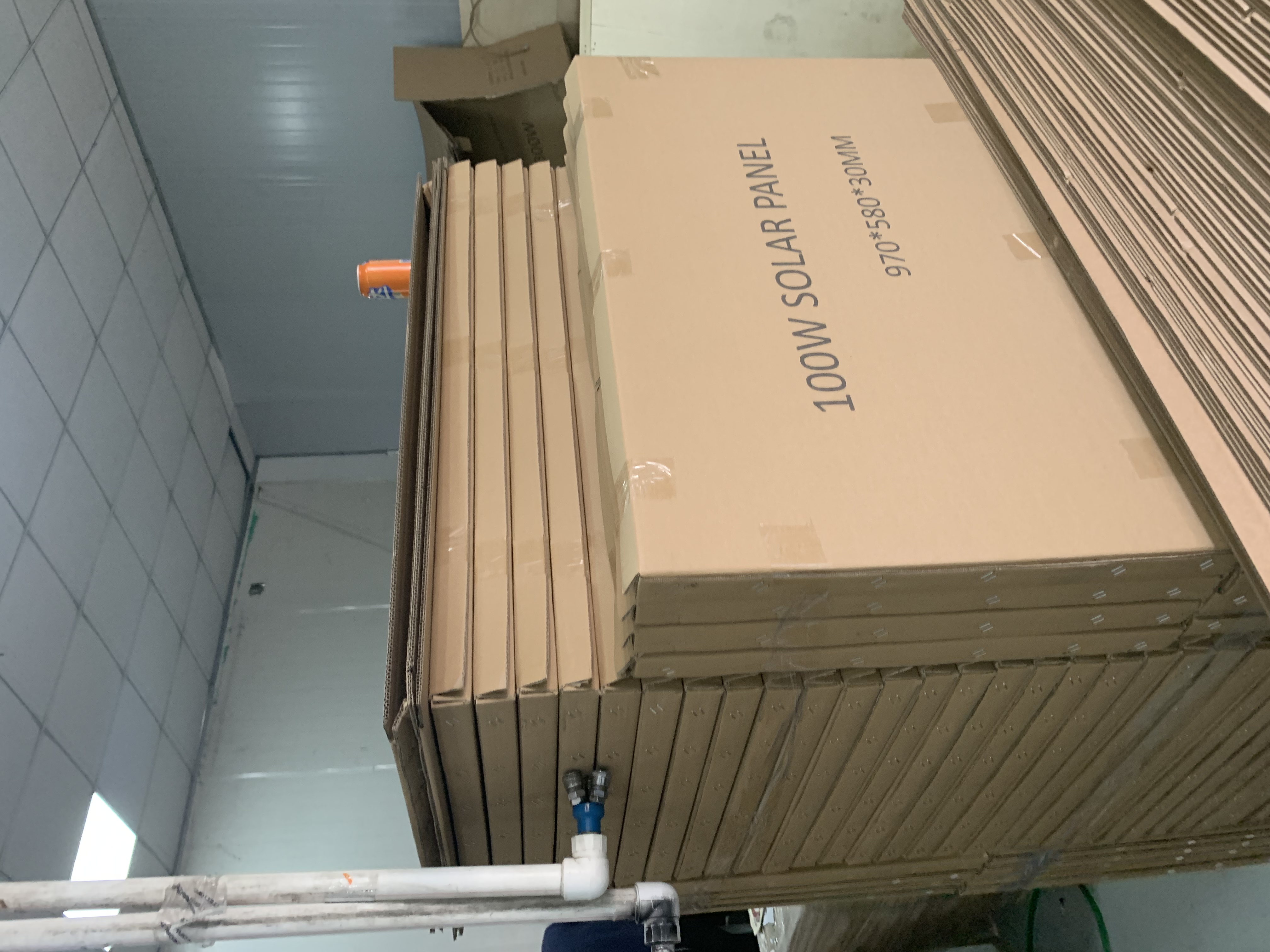

Package	Single Package

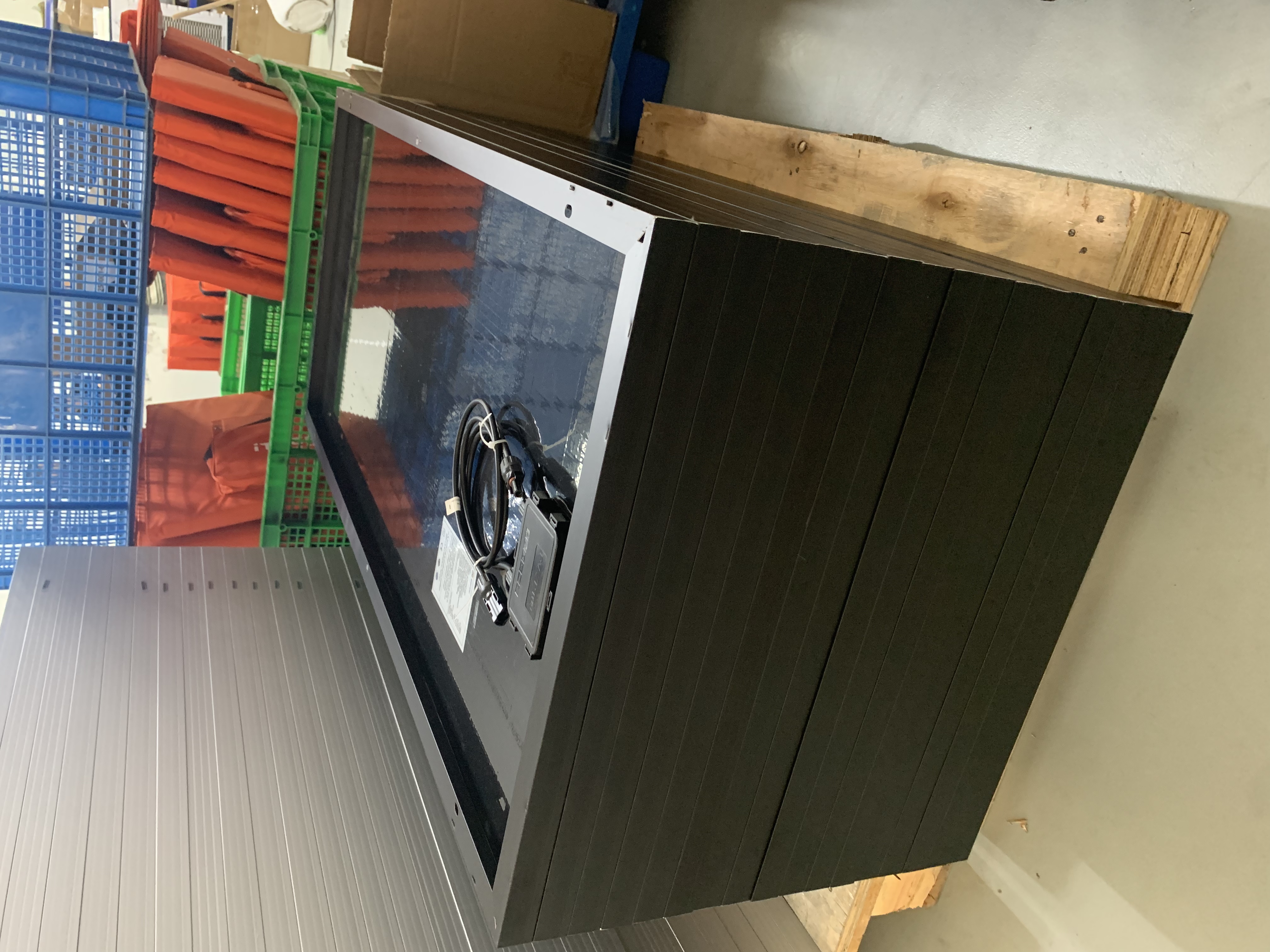

Pieces per Pallet	32pcs
