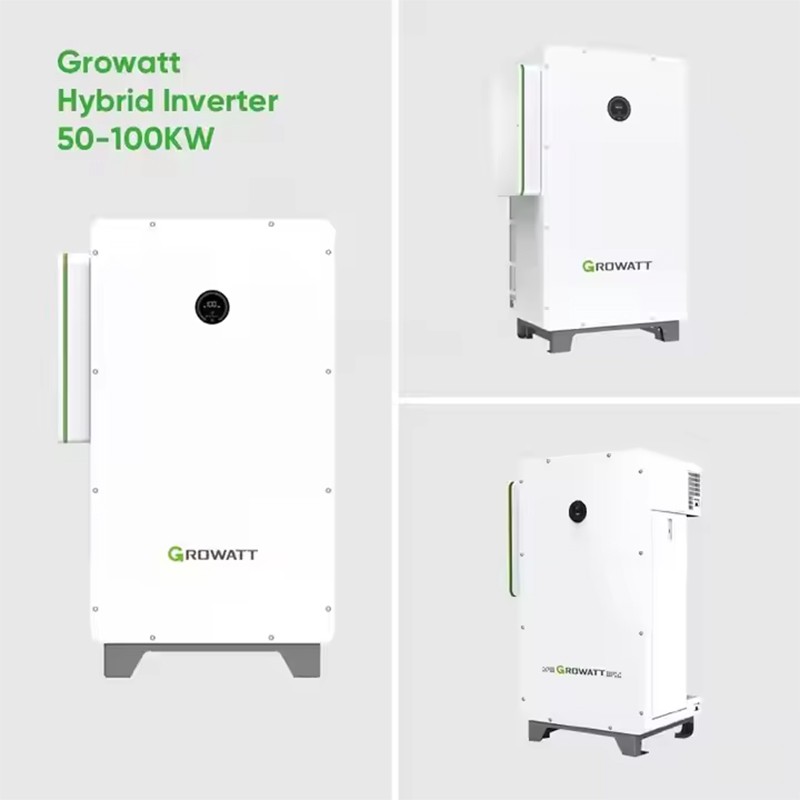

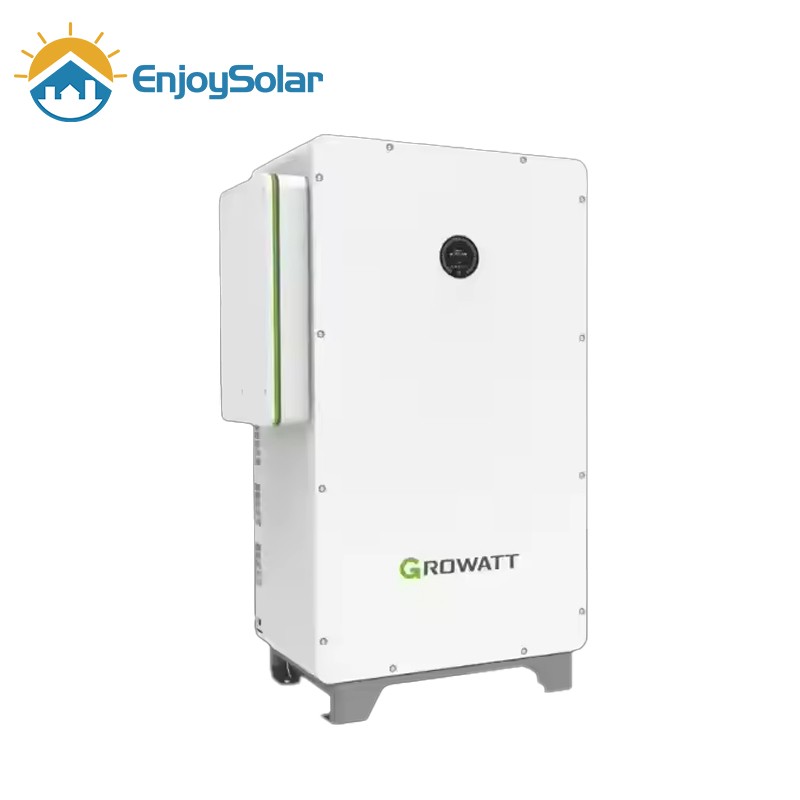

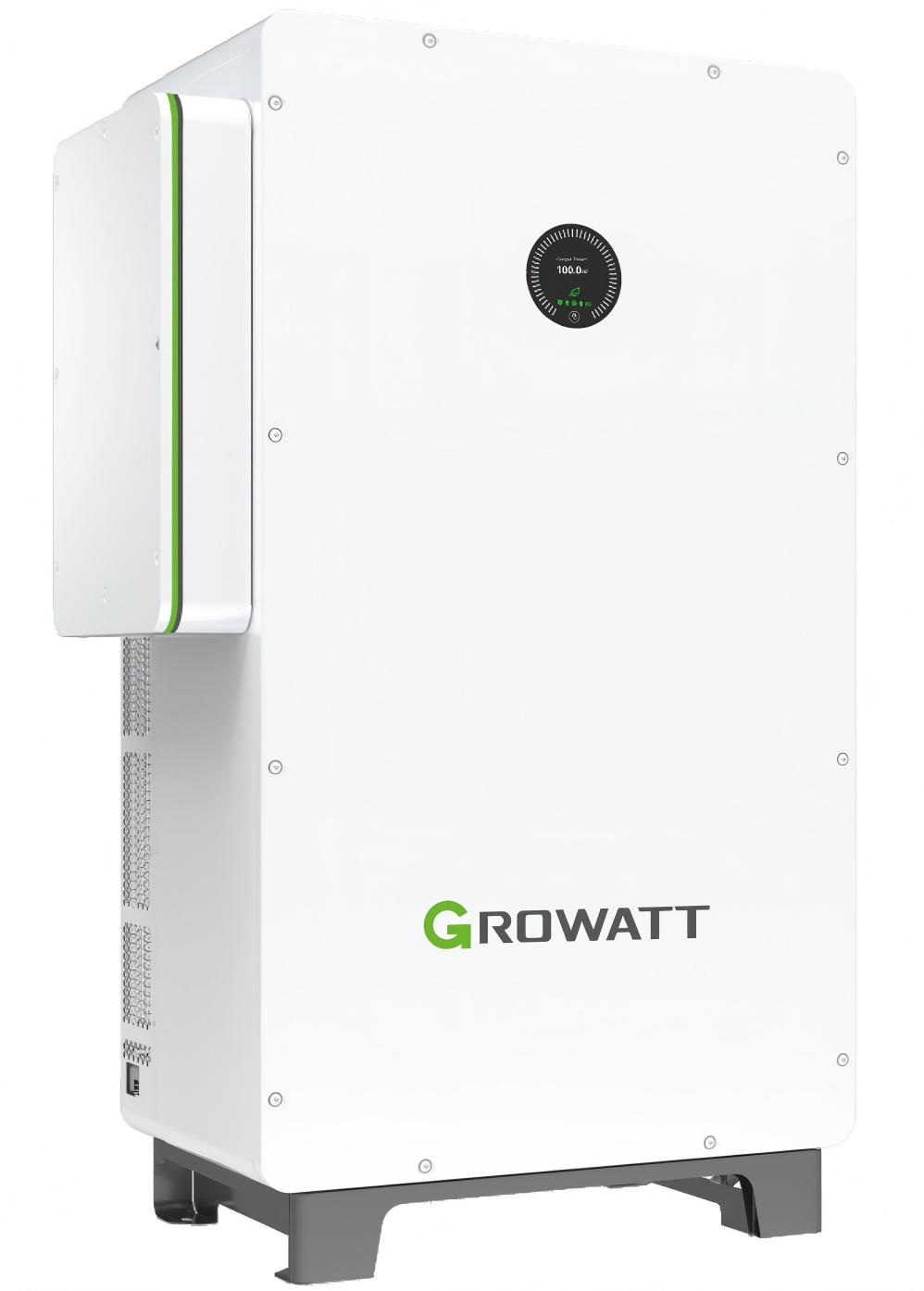

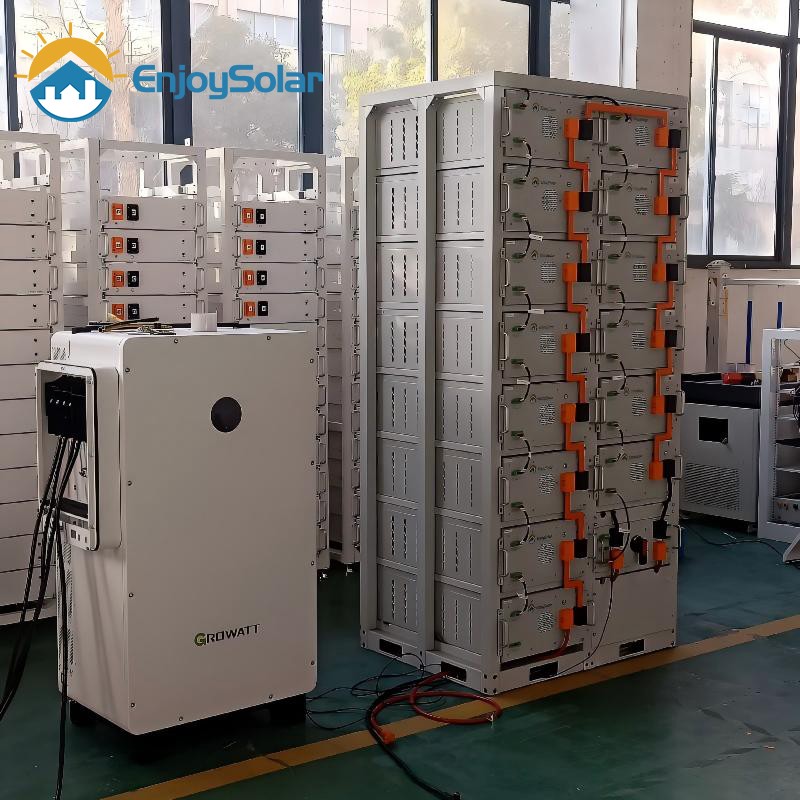

Growatt 100KW Hybrid Solar Energy Inverter 380V 400V 3phase AC Output Voltage
- Category： Hybrid Inverter
- Brand: Growatt
- AC Output Voltage: 380V/400V Three Phase
- Battery Type: Lithium-ion Battery
- Certificate : TUV, ETL, CSA, CE, ISO
- Product description：Hybrid Inverter,Solar Inverter, Solar Energy, 100KW solar inverter
Product Description
| Datasheet |
WIT 50K-H WIT 50K-HU |
WIT 63K-H WIT 63K-HU |
WIT 75K-H WIT 75K-HU |
WIT 100K-H WIT 100K-HU |
| Input Data (PV) | ||||
| Max. recommended PV power(for module STC) | 109.2kW | 124.8kW | 156kW | 156kW |
| Start voltage | 195V | |||
| Max. input voltage | 1100V | |||
| Max. open circuit voltage of PV | 1000V | |||
| MPPT nominal voltage/range | 550V,180V~800V | |||
| Max. input current per MPP tracker | 32A | |||
| Max. short-circuit current per MPP tracker | 40A | |||
| No. of PV strings per MPP tracker | 2 | |||
| No. of MPP trackers | 7 | 8 | 10 | 10 |
| Output Data (AC) | ||||
| AC nominal power | 50kW | 63kW | 75kW | 100kW |
| Max. AC apparent power | 55kVA | 69.3kVA | 82.5kVA | 110kVA |
| Nominal AC voltage/range | 380/400/415V,-15%~+10% | |||
| Nominal AC grid frequency/range | 50/60Hz,45-55Hz/55-65Hz | |||
| Max. output current | 83.3A | 105A | 125A | 166.7A |
| AC grid connection type | 3P3W+PE/3P4W+PE | |||
| Input Data (AC) | ||||
| AC nominal power | 50kW/100kW | 63kW/126kW | 75kW/150kW | 100kW/200kW |
| Max. AC apparent power | 55kVA/100kVA | 69.3kVA/126kVA | 82.5kVA/150kVA | 110kVA/200kVA |
| Nominal AC voltage/range | 380/400/415V,-15%~+10% | |||
| Nominal AC grid frequency/range | 50/60Hz,45-55Hz/55-65Hz | |||
| Max. input current | 83.3A/151.5A | 105A/190.9A | 125A/227.3A | 166.7A/303A |
| Battery Data (DC) | ||||
| Continuous charging and discharging power | 56.7kW | 71.4kW | 85.1kW | 113.5kW |
| Battery voltage range | 600-1000V (for 3P3W) / 680-1000V (for 3P4W) (>850V derating) | |||
| Recommended battery voltage | 768V | |||
| Max charging and discharging current | 83.3A | 105A | 125A | 167A |
| BMS communication | RS485/CAN | |||
| Backup Power (AC) | ||||
| Rated AC output power | 50kW | 63kW | 75kW | 100kW |
| Max. AC apparent power | 60kVA | 75.6kVA | 90kVA | 120kVA |
| Rated AC output voltage | 220V/230V/240V(L-N),380V/400V/415V(L-L) | |||
| Nominal AC output frequency | 50/60 Hz | |||
| Load connection | 3P3W+PE/3P4W+PE | |||
| Max. output current | 90.9A | 114.5A | 136.4A | 181.8A |
| General | ||||
| Dimensions (W/H/D) | 820/1350/510mm | |||
| Weight | 153kg | 153kg | 160kg | 160kg |
| Operating temperature range | -30 °C~60 °C (> 50°C, derating) | |||
| Warranty (5/10 years) | Yes/Opt | |||
Model NO.
WIT 100K-HU
Nature of Source Flow
Active Inverter
Phase
Three
Output Power
100kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Growatt
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Rated Input/Output Voltage/Range(V)
400V
Ingress Protection(IP) Rating
IP66
Weight
160kgs
Type of Cooling
Intelligent Air Cooling
BMS Communication
RS485, Can
EMS Communication
RS485, TCP/IP
Monitor Mode
GPRS/WiFi/Bluetooth/4G/LAN(Optional)
Peak Power (off-Grid)(W)
≤110%: Continues; 110%~120%: <10min; >120%: 200
Battery Type
Lead-Acid or Lithium-Ion
Battery Voltage Range(V)
600-1000V (for 3p3w) / 680-1000V (for 3p4w) (>850V
Number of Battery Input
1
Display
LCD Touch-Screen
Max. PV Input Voltage (V)
1000V
Model NO.
WIT 100K-HU
Nature of Source Flow
Active Inverter
Phase
Three
Output Power
100kw
Certification
SAA, CE, ROHS, ISO9001, CCC
Brand
Growatt
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Rated Input/Output Voltage/Range(V)
400V
Ingress Protection(IP) Rating
IP66
Weight
160kgs
Type of Cooling
Intelligent Air Cooling
BMS Communication
RS485, Can
EMS Communication
RS485, TCP/IP
Monitor Mode
GPRS/WiFi/Bluetooth/4G/LAN(Optional)
Peak Power (off-Grid)(W)
≤110%: Continues; 110%~120%: <10min; >120%: 200
Battery Type
Lead-Acid or Lithium-Ion
Battery Voltage Range(V)
600-1000V (for 3p3w) / 680-1000V (for 3p4w) (>850V
Number of Battery Input
1
Display
LCD Touch-Screen
Max. PV Input Voltage (V)
1000V
