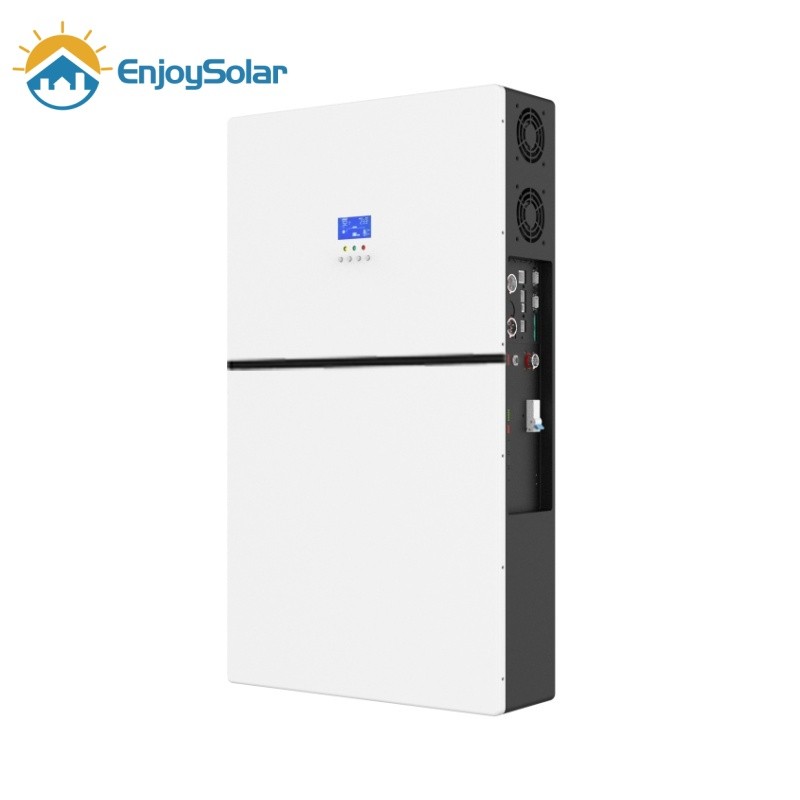

Enjoy Solar All in One 5Kwh 10Kwh Lithium Ion Battery Pack integrated with 5kw Single Phase Hybrid Solar Mppt Inverter for Residential Energy Storage Solar Project

Enjoy Solar All in One 5Kwh 10Kwh Lithium Ion Battery Pack integrated with 5kw Single Phase Hybrid Solar Mppt Inverter for Residential Energy Storage Solar Project

Category： Lithium Battery
Battery Type: 48V Lithium Battery
Battery Capacity: 5Kwh, 10Kwh
AC Output Power: 5Kw, 220V/230V Single Phase
Installation Method: Wall Mounted
Product description：5kwh lithium battery, 10kwh lithium battery, solar battery pack, lithium ion battery storage
INQUIRY EMAIL

Product Description

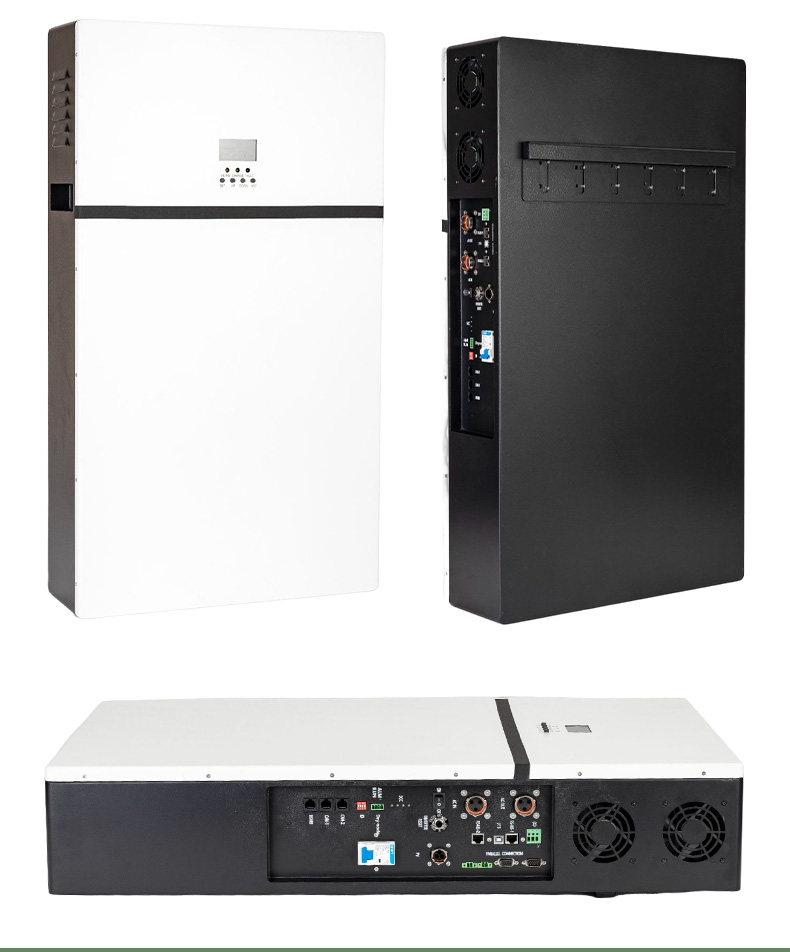

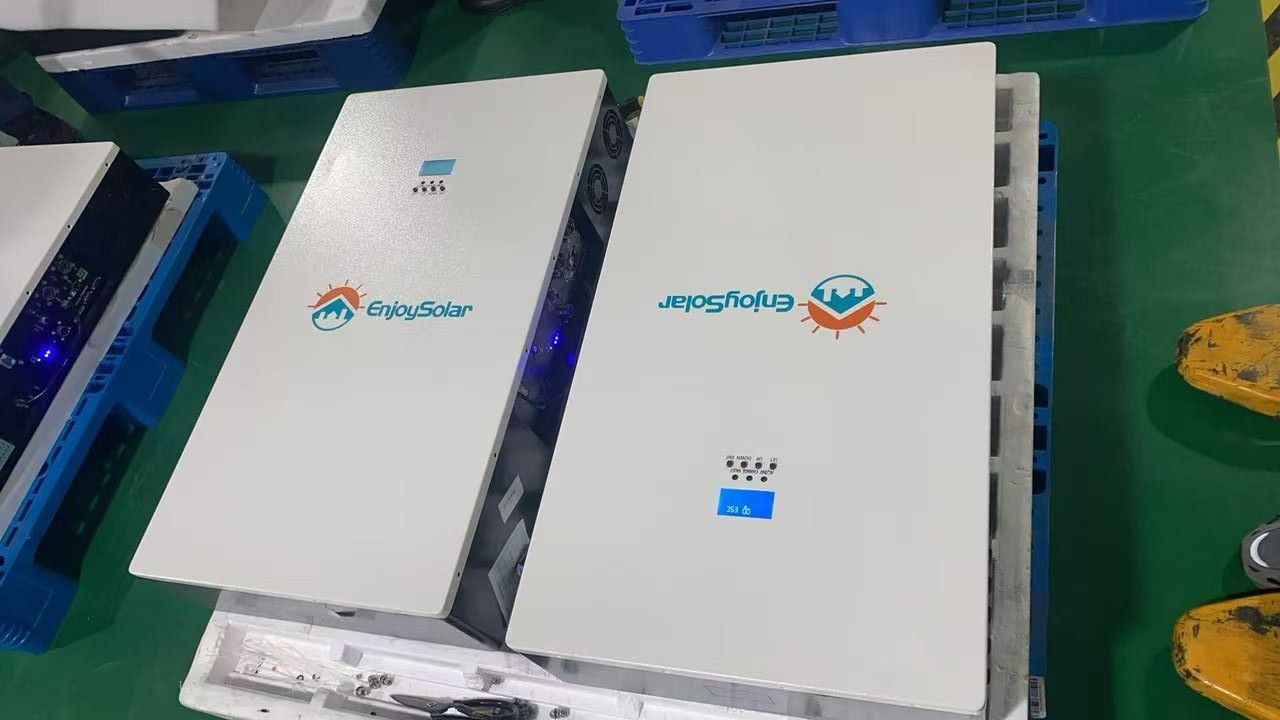

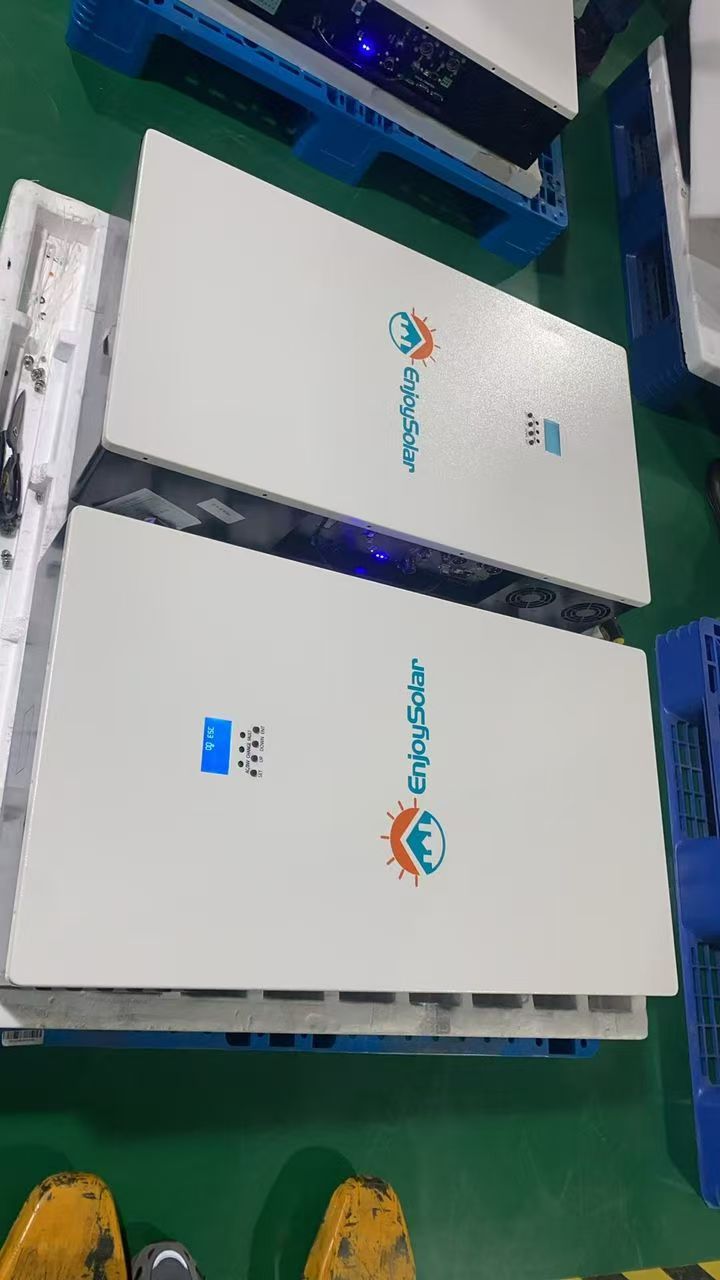

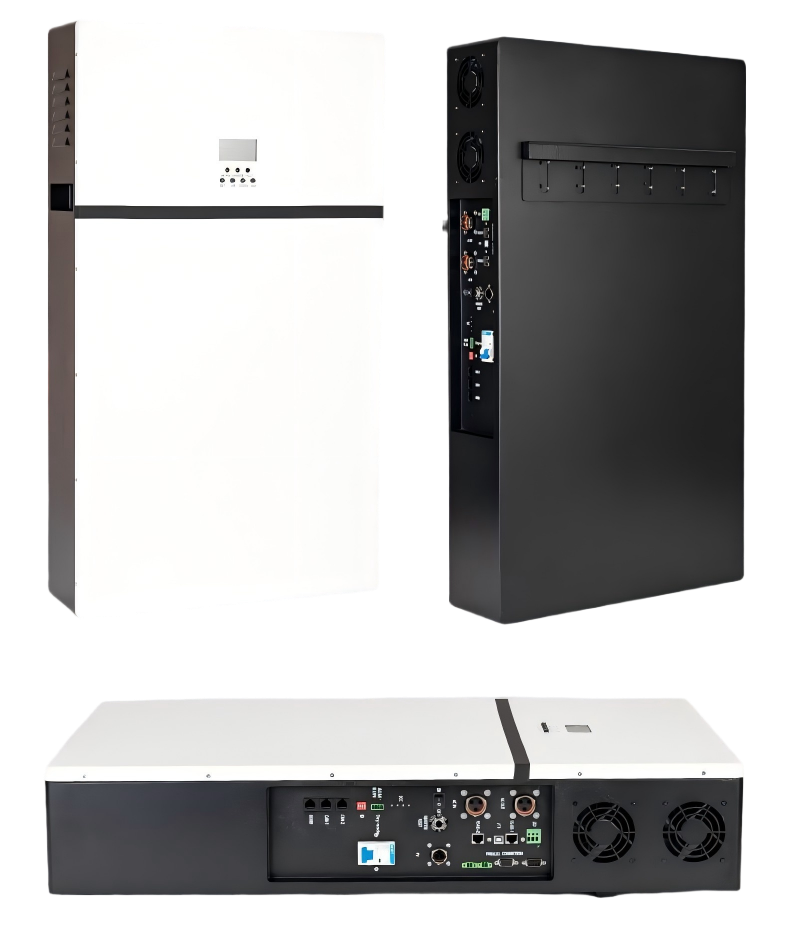

All in one 5kwh/10kwh lithium battery pack

with 5kw off grid hybrid inverter

• Enhanced Safety & Longevity: Utilizes premium LiFePO4 cells, engineered for exceptional safety and extended cycle life.
• Grid-Interactive & Uninterrupted: Features automatic grid bypass for seamless backup. Ensures smooth inverter output, compatibility with PV input, and continuous power supply for maximum reliability.
• Flexible Charging Modes: Offers four configurable modes: Solar-Only, Grid-Priority, Solar-Priority, and Hybrid Charging to optimize energy usage.

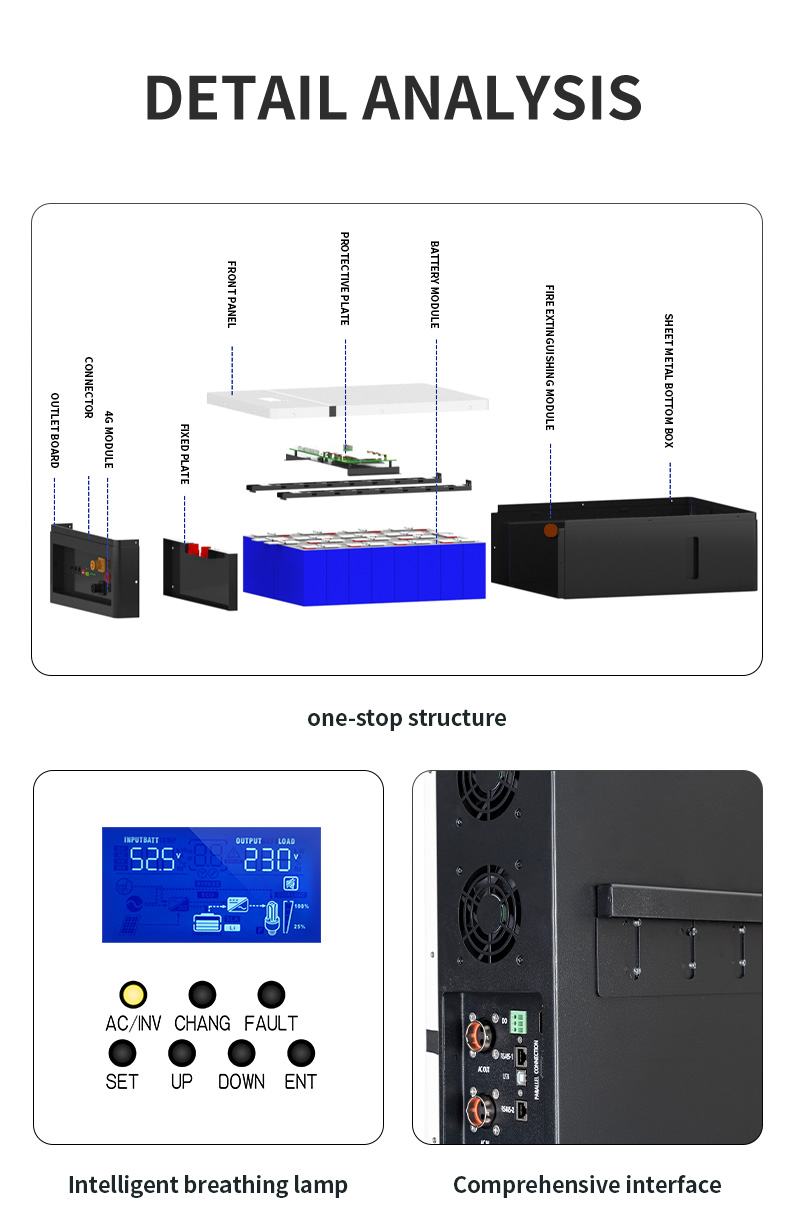

• All-in-One Protection: An integrated battery-inverter design housed in a sleek, eco-friendly enclosure. Provides comprehensive protection against short-circuit, over-voltage, overload, and water ingress.

Product Parameter

Model	ES-ESS-BP51100	ES-ESS-BP51200
Inverter Info.
Rate Output Power	5kw
Peak Power	10,000 VA
Rate Output Voltage	230Vac,Single-Phase
MPPT Voltage Range	120~450Vdc
Max. PV Array Power	5500W
Max.PV charge Current	80A
Battery Info.
Cell Connection	1P16S	1P16S
Nominal Voltage	51.2V	51.2V
Nominal Capacity	100AH	200AH
Nominal Energy	5.12KWH	10.24KWH
Recommended Charge/Discharge Current	50A	100A
Max. Charge/Discharge Current	100A	200A
Cooling	Smart Air Cooling	Smart Air Cooling
Operating Voltage	44.8~57.6V	44.8~57.6V
Dimensions(WLH)	850480160mm	1100540160mm
Weight	55KGS	95KGS
