Enjoy Solar 100kw 200kw 300kw Hybrid Solar Energy Storage System with 200Kwh 400Kwh 600Kwh Lithium Ion Battery Pack

System Configurations

System Power		Remarks		100KW		200KW		300KW
Solar Panel		EnjoySolar/LonGi/JA/Jinko /Trina/other Brand		620WP*168PCS		620WP*336PCS		620WP*504PCS
PV Combiner Box		1000Vdc Built in with Breaker and SPD		12 INPUTS 12 OUTPUTS* 1PC		12 INPUTS 12 OUTPUTS* 2PCS		12 INPUTS 12 OUTPUTS* 3PCS
Hybrid Inverter		Growatt/ATESS/DEYE/SOLIS/other Brand 230V/400V or 120V/208V		100KW*1PC		100KW*2PCS		100KW*3PCS
Lithium Battery Storage		ES51280HV(14.336KWH)		ES51280HV*15PCS 768V280Ah (215KWH)		ES51280HV*30PCS 768V560Ah(430KWH)		ES51280HV*45PCS 768V840Ah(645KWH)
PV Connector		MC4 Compatible		20 pairs		40pairs		60 pairs
PV Cable		PV1-F/H1Z2Z2-K 1*4/6mm2		1200 mtr red 1200 mtr blk		2400 mtr red 2400 mtr blk		3600 mtr red 3600 mtr blk
Remote Monitoring		WIFI		1		1		1
PV Mounting Structure		Aluminum/ Steel		Customized		Customized		Customized

Main System Components

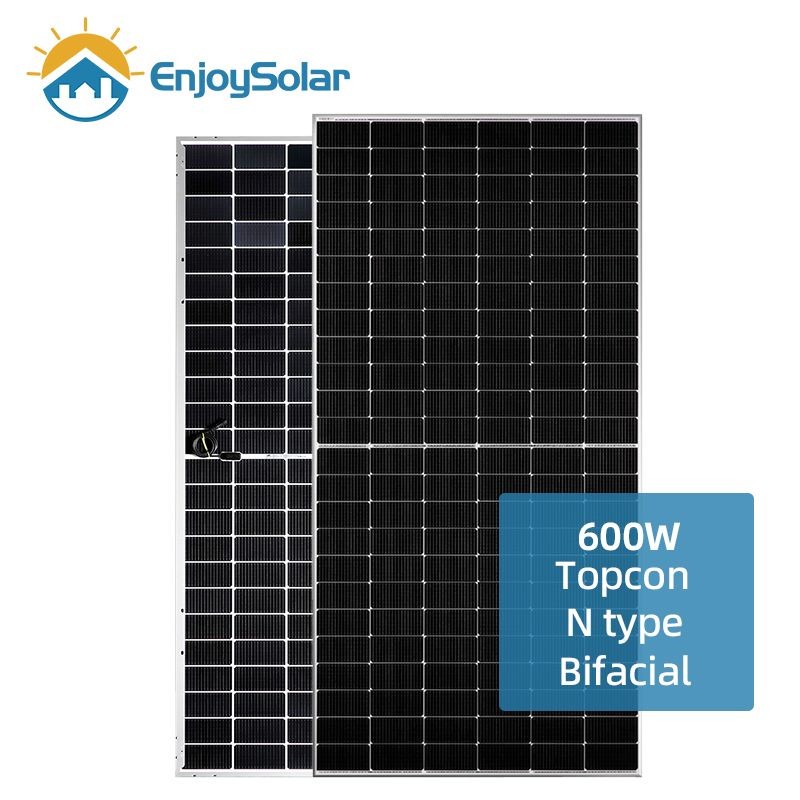

Enjoy Solar PV Panel Module

N-Type Topcon 430w -750w

Longer lifetime, lower degradation, and higher efficiency potential.

Lower internal loss, and improving the power of solar panels.

Half-cut cell design can decrease the power loss by the shadow effect.

Less Linear Degradation

Excellent weak light performance

Extremely low LID/LETID

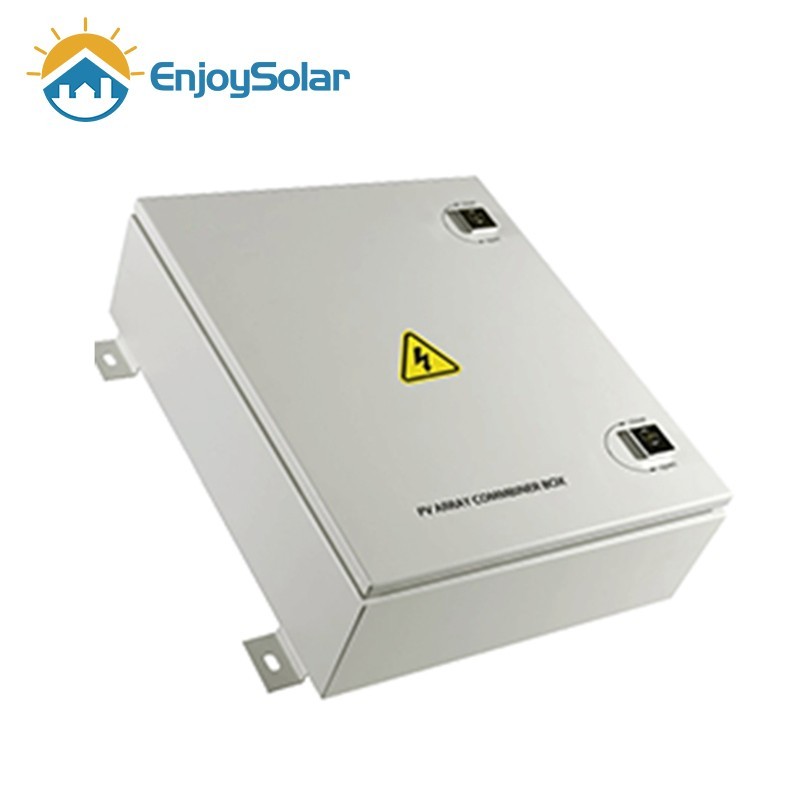

PV Combiner Box

Consolidate Outputs

Protect and Route Electricity

Facilitate Connections

Enhance Safety and Efficiency

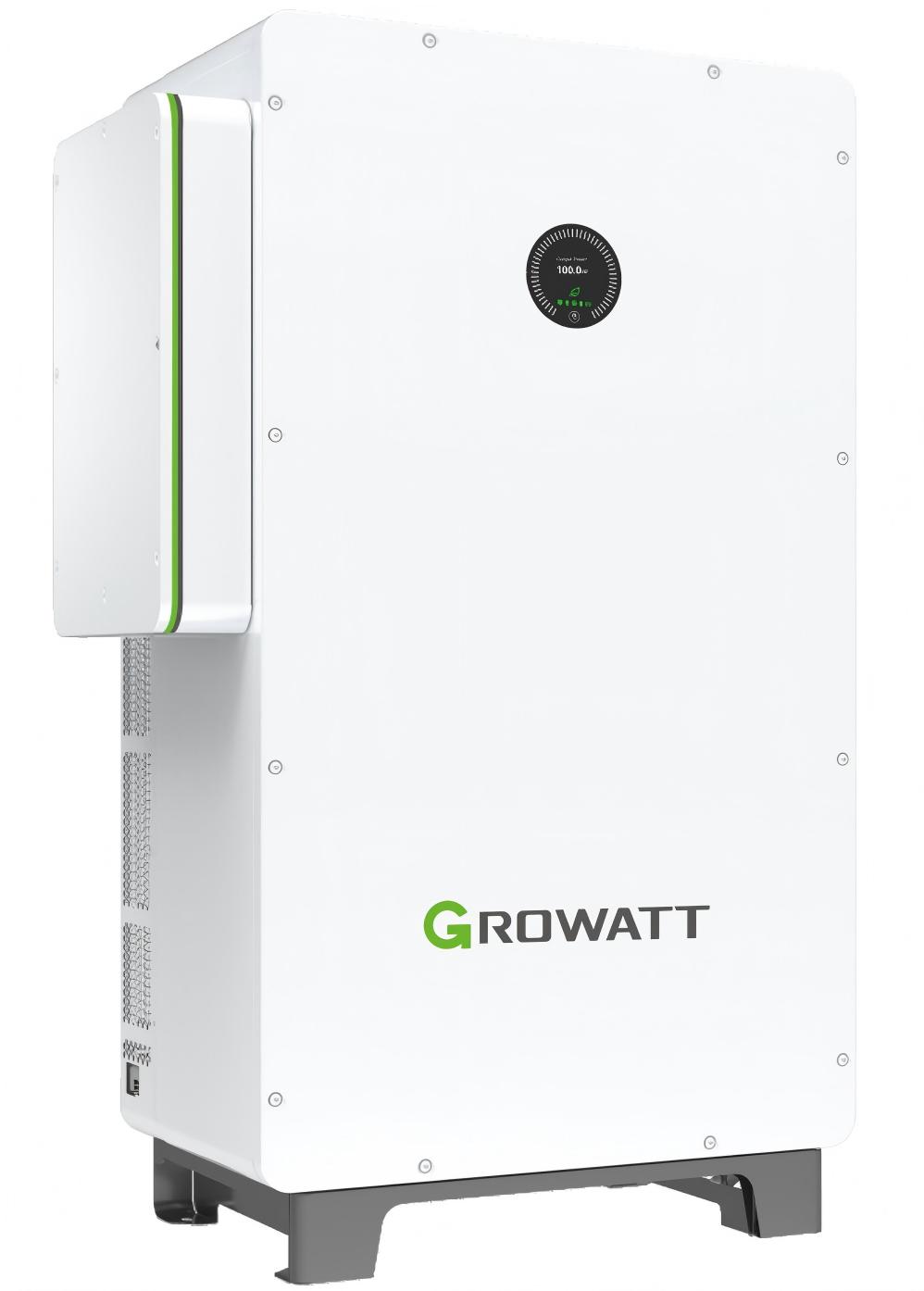

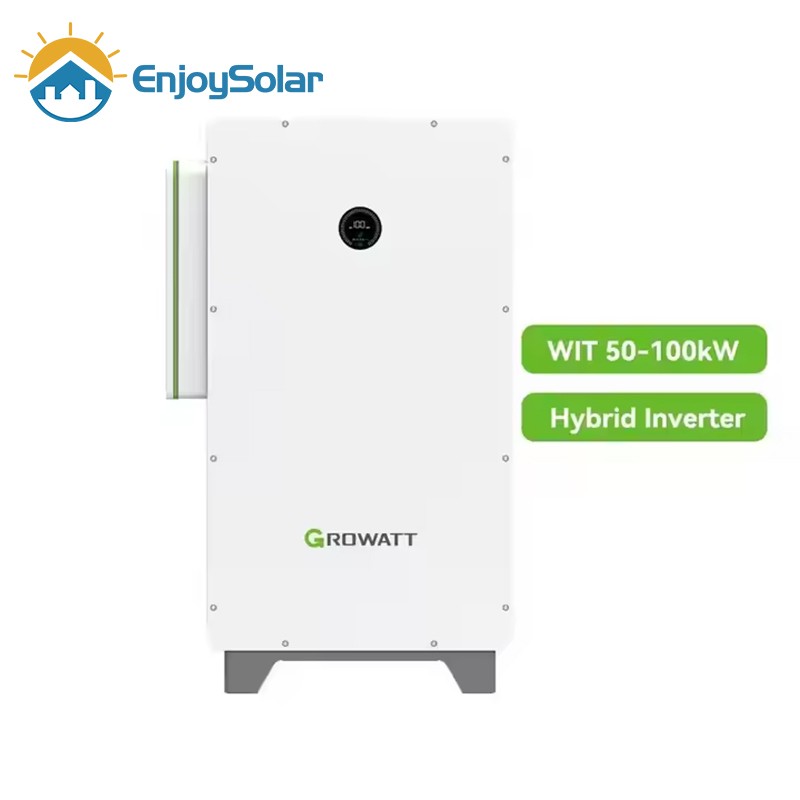

Hybrid Solar Inverter

Deye, Afore, Growatt, Solis and other brands for option

Advanced MPPT with upto 99% efficiency

Support Li-ion battery BMS communication

Intelligent multi work model for on grid, off grid and hybrid application

Support system expansion via parallel connection

Lithium Battery Storage

Enjoy Solar 51.2V280Ah 314Ah HV Lithium Ion Battery Packs

High Compatible with most Residential&Commercial Inverters in the market

Smart BMS system to optimize the performance

Excellent Heat Dissipation

High Battery Pack Consistency, Low Internal Resistance

BMS & Breaker Modular Level Protection

6000+ Cycles Life and 15 Years Product Design Life

PV Mounting Structure

Material: Aluminum Alloy,  Carbon Steel,  or Zinc-Aluminum-Magnesium

Mounting Structure Type: Distributed Roof, Ground, Carpots and BIPV

Customized Project Solutions

Easy Installation
